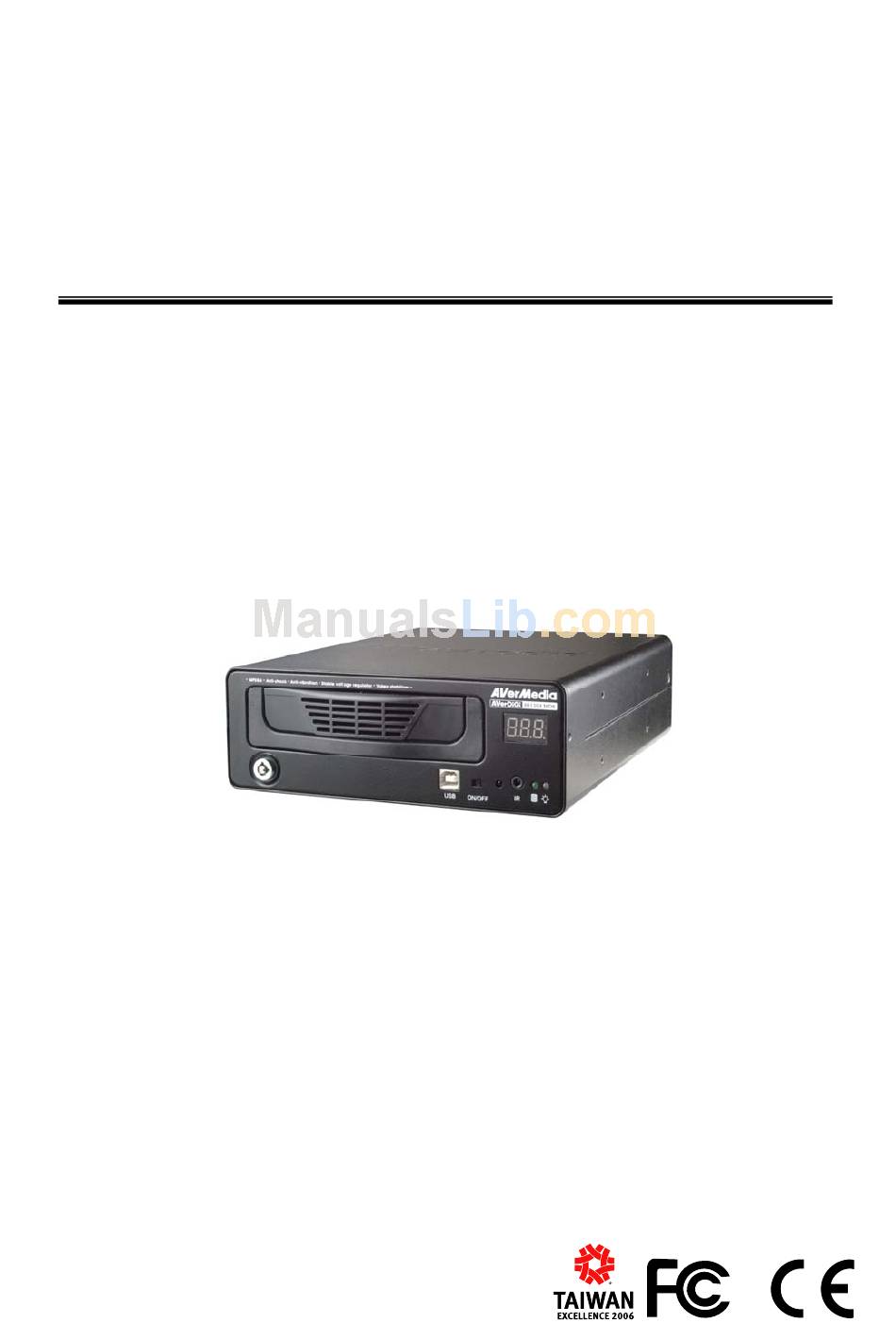

  • Page 1 ® AVerMedia AVerDiGi EB1304 MOB Mobile Security DVR System User Manual...
  • Page 2 COPYRIGHT © 2006 by AVerMedia TECHNOLOGIES, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of AVerMedia TECHNOLOGIES, Inc.
  • Page 3 WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE CAUTION IF THERE IS ANY DAMAGE, SHORTAGE OR INAPPROPRIATE ITEM IN THE PACKAGE, PLEASE CONTACT WITH YOUR LOCAL DEALER. WARRANTY VOID MODIFICATION. NOTICE - INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTIEC.

  • Page 4: Table Of Contents

    Connecting the Sensor/Relay device...8 Familiarizing the Remote Control Buttons ... 9 Chapter 2 Operating the EB1304 MOB ... 11 Using the EB1304 MOB for the First Time ... 11 2.1.1 Select the Setup Mode and Video System ... 11 2.1.2 Formatting Hard Disk...

  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction AVerDiGi EB1304 MOB is a 4-channel stand-alone DVR unit for mobile solution that can be installed on the vehicle for security monitoring. It provides real-time monitoring and digital recording of surveillance video. Up to four video cameras and four sensor devices can be hooked up to this DVR unit.

  • Page 6: Features And Specifications

    (1) AVerMedia® AVerDiGi EB1304 MOB unit (2) Remote Control (batteries included) (3) Quick Installation Guide (4) Software CD (User Manual included) (5) Z-bracket x 2 (including 4 screws) (6) Removable hard disk drawer accessories (with spare screws) (7) Power cable...

  • Page 7: Front Panel

    Indicate running state of the hard disk. Lights when the HDD is running Lights when the unit is on To configure DVR unit without connecting to monitor. Also, LED panel will display HDD usage and DVR system temperature. Hot swap removable Hard disk slot The DVR unit support hard disk hot swap.

  • Page 8: Back Panel

    Input the video camera signal and display it on channel 4 Output the video signal to a TV The DVR unit support 2 video output ports and you can only select to output the video either from the VGA OUT or...

  • Page 9: Setting Up The Dvr Unit

    Setting Up the DVR Unit 1.5.1 Installing the Hard Disk The DVR unit allows you to install one hard disk. Before installing the hard disk, make sure to set the hard disk master/slave jumper setting. Adjust the jumper setting according to the instructions on the hard disk label. Please set the jumper of hard disk as Master.

  • Page 10: Mounting The Dvr Unit

    1.5.2 Mounting the DVR Unit The DVR unit can be mounted in two ways. User can uses the Z-brackets (4 screws included) to mount the DVR unit as the figure show below.

  • Page 11: Connecting Devices

    1.5.3 Connecting Devices The DVR unit can connect up to 4 video cameras, 4 sensor devices, 1 alarm device and output video to a TV or CRT/LCD monitor. Follow the illustration below to make the connection: Each time you change the video display output, the power must be turned off and on to reset the DVR unit.

  • Page 12: Connecting The Sensor/Relay Device

    1.5.4 Connecting the Sensor/Relay device The Sensor and Alarm ports enable you to connect (4) sensor inputs and (1) relay outputs. Just connect the external sensor and relay pin directly to the pinhole. Check the table below and locate which pinhole is assigned to sensor input and relay output. 1.5.4.1 I/O Card Sensor and Relay pinhole allocation: The signal from the sensor (i.e., infrared sensors, smoke detectors, proximity sensors, door sensors, etc.) is being transmitted to the unit and this triggers the system to...

  • Page 13: Familiarizing The Remote Control Buttons

    Familiarizing the Remote Control Buttons Use the Remote control to operate the OSD menu on surveillance screen. Button Function Switch to Channel 1 As a number key for entering password Switch to Channel 2 As a number key for entering password Switch to Channel 3 As a number key for entering password Switch to Channel 4...
  • Page 14 Button Function To play the video Reverse the video playback at the speed of 2x, 4x 8x or 16x To move the select to left Fast play the video playback at the speed of 2x, 4x 8x or 16x To move the selection to right Stop playing / Stop recording (11) To move the select to down...

  • Page 15: Chapter 2 Operating The Eb1304 Mob

    For the fist time using the DVR unit, suggest user connect with the monitor and setup DVR unit by OSD menu. Once the DVR unit has been set up, user can use LED panel with remote control to modify setup of DVR unit.

  • Page 16: Set Up The System Date And Time

    2.1.3 Set up the System Date and Time Before starting record video, adjust the date and time first. 1. Press to call up the OSD menu and then use down and select Submenu. And then, press 2. In Submenu, select the Date and press to adjust the date and use ▲...

  • Page 17: To Playback Video

    2.3.1 To Playback Video Press (play). Use the ▲ buttons to go up and down and select TIME SEARCH or EVENT LIST. Then, press (play) to make a selection. TIME SEARCH (search by date and time): In the selected HARD DISK, press .
  • Page 18 Listed below are the following recording conditions: A – Always Recording It records non-stop and automatically continue recording when interrupted. S – Sensor Recording It records when the sensor has activated. M – Motion Recording It records when any movement is detected B –...

  • Page 19: Chapter 3 Osd Navigation Tree

    23 : 00 - 00 : 00 ALWAYS REC ALWAYS REC PASSWORD CURRENT CONFIRM VIDEO ADJUSTMENT CAMERA BRIGHTNESS CONTRAST SATURATION RESET TO DEFAULT VALUE TEMPERATURE SET TEMPERATURE TYPE CENTIGRADE HIGH THRESHOLD LOW THRESHOLD DVR GIT PROCTECT DVR COLD PROTECT buttons...
  • Page 20 buttons to move the selection to the left and right. The red frame turns yellow when users are making a selection. If the unit is currently recording the video, user may have to stop video recording to change the settings. OSD MENU MAIN MENU CAMERA SELECT...
  • Page 21 BUZZER Description JACK SETUP The DVR unit provides a jack port for external extend line for system LED indicator or IR receiver. It is convenient for user to easily indicate the DVR unit status or remote control the DVR unit when the DVR unit is installed at hide place.
  • Page 22 DATE : Set the current date. Please set the correct date and time when you use the DVR system at the first time to make sure the time of recorded video file is correct. TIME : Set the current time.
  • Page 23 The default value is 45°C. DVR HOT PROTECT: Set the temperature limit to shutdown hard disk when the DVR unit temperature is higher than (>) limited. The default value is 60°C. DVR COLD PROTECT: Set the temperature limit to stop recording when the DVR unit temperature is lower than (<) limited.
  • Page 24 OSD MENU HARD DRIVE SETUP OVERWRITE ENABLED HDD SIZE 78MB HDD USED 232MB HDD FORMAT * HDD SIZE shows the total capacity of the hard disk. * HDD USED shows the amount of space that has been used. Description OVERWRITE ENABLED : Enable/disable replacing the earliest recorded file when the hard disk space runs out.
  • Page 25 OSD MENU SENSOR SETUP SENSOR REC TIME 010 SEC ALARM OUT TIME 010 SEC NOT INSTALLED CHANNEL - 1 CHANNEL - 2 NOT INSTALLED CHANNEL - 3 NOT INSTALLED CHANNEL - 4 NOT INSTALLED MOTION SETUP MOTION CAMERA SENSITIVITIY MOTION RECORD TIME 010 SEC Description SENSOR REC TIME :...

  • Page 26: Chapter 4 Setup Dvr In Led Mode

    Chapter 4 Setup DVR in LED Mode Besides OSD menu mode, user can setup DVR system in LED mode with remote control. To setup the DVR system, refer to the following function description. Press button to enter or exit setup function button to select setup function ▲...
  • Page 27 Function Record mode Record Framerate(PAL) Record Framerate(NTSC) Symbol of Title [NOTE] The recording function must be stopped when set up this function. Symbol of Selection (D1 mode) (CIF mode)
  • Page 28 Function Video Quality Hard Disk Setup Symbol of Title [NOTE] The recording function must be stopped when set up this function Symbol of Selection (Best) (High) (Good) (Medium) (Normal) (Low)
  • Page 29 Function Hard Disk Overwrite Hard Disk Format/Password Check Symbol of Title [NOTE] 1. The recording function must be stopped when set up this function When display, user can start to enter the password by using the number key on the remote control. Symbol of Selection (Yes) (No)
  • Page 30 Function From 1st digit to 6th digit [NOTE] When user enter each digit of password, the LED panel will display each digit of indicating as right column shown. Using Password Check the number key buttons of remote control to enter the password.
  • Page 31 Function Jack Setup Warning indication Warning indication Symbol of Title Hard disk plug out Hard disk is full Hard disk shutdown (higher than limited temperature) Hard disk stop (lower than limited temperature) FAN stop abnormally Symbol of Selection (IR) (LED) LED display current temperature and flash LED display current...

  • Page 32: Led Panel Message Definition

    LED Panel Message Definition While the DVR system is recording, LED panel will display general information of the system. When LED panel shows Dot point at right side flashes means the system is recording. SPEED + Press to display system temperature. To change temperature display type, please refer to Chapter 3.1 of TEMPERATURE...

  • Page 33: Chapter 5 Using Usb Playback Console

    Chapter 5 Using USB Playback Console Recommended system requirements Pentium®4 2.4GHZ or above Windows®2000/ XP DDR 256 MB Graphic function (Must support DirectDraw) Audio card or built-in Speaker 1 available USB2.0 port Installing the USB Playback Console To install the Playback Console Application: Place Installation CD into the CD-ROM drive.

  • Page 34: Running The Usb Playback Console

    And then, the surveillance screen will display the USB backup message. Press Select (Yes) to accept USB Playback Console application to get the recorded video files from the hard disk. The DVR system will stop recording automatically. Running the USB Playback Console To run the application, click the USB Playback Console icon on the PC desktop.
  • Page 35 Name Function Select the event you want to playback. The event list only available when user select to playback in DVR Recorded File(HD). Event List Full screen Use the entire area of the screen to only display the video. To return, press the right button of the mouse or ESC on the keyboard.

  • Page 36: To Cut And Save The Portion Of The Recorded Video

    In the Save As dialog box, locate on where user wants to save the file, type the filename, and select the video format. 5.3.2 Playback DVR Recorded File from Hard Disk Click Open File button Select DVR Recorded File(HD) and click OK.

  • Page 37: Playback Backup File(*.Dvr)

    OSD setup menu will appear on the surveillance monitor. Press Select (Yes) to accept HDD Backup application to get the recorded video file from the hard disk. And, EB1304 MOB will stop recording automatically. And then, the Select Disk window will appear as below: Select the hard disk drive from Select Disk windows.
  • Page 38 (10) Name Function All recorded video events list No.: the list order number Record: the record type(see also Begin Time: the beginning of record time End Time: the end of record time Display first frame of each recorded video channels from 4 selected channels.
  • Page 39 Select the event which user wants to backup or mark the Select All to select all listed recorded video events Locate on where user wants to save the backup file Click Start to process backup 10. To stop the backup progress, click Stop 11.

  • Page 40: Chapter 6 Using Imageverification

    Chapter 6 Using ImageVerification Image Verification is a watermark-checking program to identify the authenticity of a saved image (e.g. by snapshot). This program can only verify uncompressed bmp image files. To Run the ImageVerification To run the ImageVerification application, click the Watermark button on USB Playback Console main interface.

  • Page 41: Chapter 7 Using I-Enhance

    Chapter 7 Using i-Enhance The bundled i-Enhance is a video editing tool and can only be used with *.dvr video file. It allows you to adjust the video picture quality, segment and save the selected portion of the video, zoom in and out the image, and print or save the screen shot. You can also save the setting and apply it on other files.

  • Page 42: To Use I-Stable

    Name Function (10) History Box List all the actions. (11) Undo Delete the last action. (12) Noise Reduce Adjust the softness and repair the damaged colours. (13) Sharpness Improve the overall image by enhancing edges. This gives the image more depth. (14) Effects Gray Scale: convert the image into black and white (monochrome).
  • Page 44 Warranty Notice LIMITED WARRANTY AVerMedia TECHNOLOGIES, Inc. warrants this product to be free of defects resulting from faulty manufacture or components under the following terms: WARRANTY LENGTH Labor is warranted for (1) one year from the date of purchase. Parts are warranted for (1) one year from the date of purchase.
