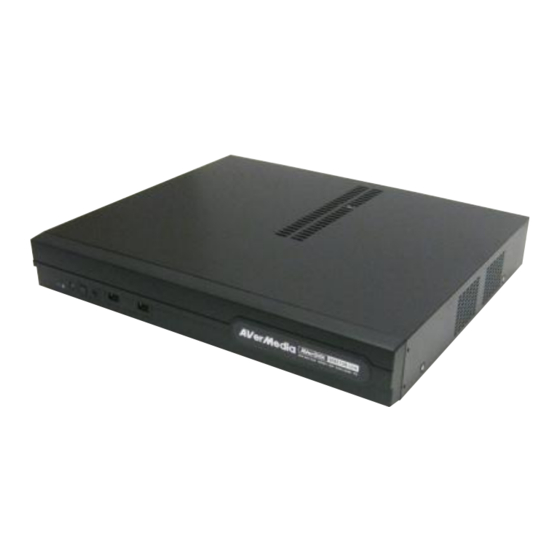

SEB5108H Lite/SEB5108H
/SEB5116H Lite/SEB5116H
User Manual
April 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVerDiGi SEB5108H Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avermedia AVerDiGi SEB5108H Series

Summary of Contents for Avermedia AVerDiGi SEB5108H Series

  • Page 1 ® AVerMedia AVerDiGi SEB5108H/5116H series SEB5108H Lite/SEB5108H /SEB5116H Lite/SEB5116H User Manual April 2010...
  • Page 2 In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
  • Page 3 WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE CAUTION IF THERE IS ANY DAMAGE, SHORTAGE OR INAPPROPRIATE ITEM IN THE PACKAGE, PLEASE CONTACT WITH YOUR LOCAL DEALER. WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT MODIFICATION NOTICE - INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Introduction ................1 Package Content ....................1 1.1.1 SEB5108H Lite ....................1 1.1.2 SEB5108H ...................... 2 1.1.3 SEB5116H Lite ....................3 1.1.4 SEB5116H ...................... 4 1.1.5 Optional Accessories ..................5 Front Panel ......................6 1.2.1 SEB5108H/SEB5116H Lite ................
  • Page 6 2.4.1.2 Using the Event Log Viewer..............26 2.4.1.3 To Search Using the Visual Search ............26 2.4.1.4 To Set a Video Segment and Save ............27 2.4.1.5 To Backup the Playback File ..............28 Playback Backup Video ..................29 Chapter 3 Customizing the DVR System..........32 System Setup .....................
  • Page 7 6.1.1.3 Record Setup ................... 76 6.1.1.4 Alarm Setup ..................... 78 6.1.1.5 Network Setup ..................83 Familiarizing the WebViewer PTZ Buttons ............85 Familiarizing the Remote Console Buttons ............86 6.3.1 To Setup Remote Console Setting ..............88 Using the Remote Playback ................89 6.4.1 Familiarizing the Local Playback Buttons ............

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Package Content 1.1.1 SEB5108H Lite (1) SEB5108H Lite unit (2) Quick Installation Guide (3) Software CD (User Manual included) (4) Power adaptor (5) Power Cord * The power cord varies depending on the standard power outlet of the country where it is sold.

  • Page 10: Seb5108H

    (6) SATA cable x 2 (7) Screws for HDD installation (8) AVerMedia USB optical mouse DO NOT install more than 2 HDD with current power adaptor. It may cause unexpected damage. For additional HDD support, please contact your vendor to purchase an additional power adaptor.

  • Page 11: Seb5116H Lite

    (6) SATA cable x 2 (7) Screws for HDD installation (8) AVerMedia USB optical mouse DO NOT install more than 2 HDD with current power adaptor. It may cause unexpected damage. For additional HDD support, please contact your vendor to purchase an additional power adaptor.

  • Page 12: Seb5116H

    (6) SATA cable x 2 (7) Screws for HDD installation (8) AVerMedia USB optical mouse DO NOT install more than 2 HDD with current power adaptor. It may cause unexpected damage. For additional HDD support, please contact your vendor to purchase an additional power adaptor.

  • Page 13: Optional Accessories

    1.1.5 Optional Accessories Audio cable for SEB5116H series DVI cable for SEB5116H series (Red cable: 16CH audio in Remote controller only (16CH Loop out) White cable: 1CH audio out Black cable: 1CH MIC in) Audio cable for SEB5108H series 90W Power Adaptor Rack ears (Red cable: 8CH audio in (HDD Holder for 4...

  • Page 14: Front Panel

    Front Panel 1.2.1 SEB5108H/SEB5116H Lite Name Function (1) System Power System power status indicators. Indicate running state of system. Lights when the indicator system is running. (1) HDD indicator When DVR system is recording, the light will keep flashing. (3) Power ON/OFF DVR unit (4) IR Sensor Receive signal from the remote control to operate the DVR unit...

  • Page 15: Seb5108H /Seb5116H

    1.2.2 SEB5108H /SEB5116H Name Function Power indicator: System power status indicators. Indicate running state of system. Lights when the system is running. (1) System indicator Recording indicator: When DVR system is recording, the light will keep flashing. For extended IR sensor cable(optional) (2) IR Sensor port (3) IR Sensor Receive signal from the remote control to operate the DVR unit...
  • Page 16 Name Function Channel camera selection number in playback and preview mode. For the channel over 10, press , then press Press button can switch to different screen display modes ( Press and number button, to set the preset position in the PTZ mode. A functional key for multiple system control.
  • Page 17 Name Function Operate the PTZ cameras automatically based on the selected camera group preset position number. (18) Without setup preset position, the preset button ( ) will not be functional when press it. To setup preset position, please refer to Chapter 3.2.3.

  • Page 18: Back Panel

    Back Panel 1.3.1 SEB5108H Lite/SEB5108H Name Function LAN Port For Gigabit Ethernet connection RS232 port For connecting GSM modem. Audio Out Output the audio signal to audio output device The audio input device has its own power supply is necessary.

  • Page 19: Seb5116H Lite/Seb5116H

    1.3.2 SEB5116H Lite/SEB5116H Name Function LAN Port For Gigabit Ethernet connection RS232 port For connecting GSM modem. Audio Out Output the audio signal to audio output device The audio input device has its own power supply is necessary. VGA Out Output the video signal to a CRT or LCD monitor TV Out Output the video signal to TV...

  • Page 20: Setting Up The Dvr Unit

    This includes direct, indirect, incidental, special, or consequential damages, ® resulting from the incompatibility caused by the usage of these hard disks, even if AVerMedia has expressly advised about the risk of such damages. The entire risk arising out of the use of any information attached here with is borne by the recipient.
  • Page 21 5. The hard disk plate can be installed 3 hard disks. 6. Turn the plate and hard disk over carefully and User can choose the position and place the hard screwed the hard disk on the plate. If hard disk disk on it.
  • Page 22 11. Screw the holder on the DVR unit 12. Push the cover forward and secure the cover 13. You may now connect all the cables and power on the DVR unit.

  • Page 23: Connecting Devices

    Follow the illustration below to make the connection: 1.4.2.1 SEB5108H Lite/SEB5108H Pen drive and external hard disk must be FAT32 format. All connected devices have their own power supply are necessary.

  • Page 24: Seb5116H Lite

    1.4.2.2 SEB5116H Lite Pen drive and external hard disk must be FAT32 format. All connected devices have their own power supply are necessary.

  • Page 25: Sensor, Relay And Rs485 Pinhole Allocation

    Sensor, Relay and RS485 pinhole allocation 1.5.1 SEB5116H Lite/SEB5116H The Sensor and Alarm enable you to connect 16 sensor inputs, 4 relay outputs and 1 PTZ camera. Just connect the external sensor, relay, and PTZ camera pin directly to the pinhole. Check the table below and locate which pinhole is assigned to sensor input and relay output.

  • Page 26: Seb5108H Lite/Seb5108H

    1.5.2 SEB5108H Lite/SEB5108H The Sensor and Alarm enable you to connect 8 sensor inputs, 4 relay outputs and 1 PTZ camera. Just connect the external sensor, relay, and PTZ camera pin directly to the pinhole. Check the table below and locate which pinhole is assigned to sensor input and relay output.

  • Page 27: Chapter 2 Using The Dvr Software

    Chapter 2 Using the DVR Software The Way to Operate DVR There are 3 ways to operate and configure the DVR unit: Using mouse: Using mouse with virtual keyboard can easily to configure DVR setting. Using Front Panel button( see also Chapter 1.3) Using Remote Control: It’s an optional way to operate DVR unit.

  • Page 28: Using The Virtual Keyboard

    The hard disk must be formatted before user can use it with DVR unit. Following the below steps to format the hard disk. Click to call out SETTING MENU. Click System → System and click Next. Click Refresh button to detect the installed hard disk. Select the hard disk that user wants to format it.

  • Page 29: Familiarizing The Functions In Preview Mode

    Familiarizing the Functions in Preview Mode (SEB5116H series) Name Function (1) Login Click to select reboot the DVR system or re-login in different account. (2) Status Display recording date and time (3) Hard disk usage Display the hard disk usage of capacity in percentage. (4) Record Start/stop video recording.

  • Page 30: Using The Ptz Control Panel

    2.3.1 Using the PTZ Control Panel User can using PTZ control panel to operate the PTZ camera in preview mode. Before to use it, please enable the PTZ camera first (see also Chapter 3.2.3 PTZ Camera Setting) When PTZ camera is enabled and set, the PTZ control icon will show on the channel screen. Click on the PTZ control icon to call out PTZ control panel.

  • Page 31: Familiarizing The Buttons In Ptz Control Panel

    2.3.1.1 Familiarizing the Buttons in PTZ Control Panel (3) (2) (10) Name Function (1) Close Exit PTZ camera controller. (2) Setup Configure PTZ cameras. (3) Auto Pan Operate the PTZ cameras automatically based on the selected camera group preset position number. (4) Focus +/- Adjust the focus manually to produce clear image.

  • Page 32: Familiarizing The Functions In Playback Mode

    Familiarizing the Functions in Playback Mode Click (playback) button at the lower right corner of Preview mode user interface to switch to Playback mode. (SEB5116H series) Name Function (1) Status Display the recorded date, time and play speed. ı: Move at the beginning of the recorded video file. (2) Playback Control Buttons ı: Go back to the previous frame.

  • Page 33: Familiarizing The Functions In Playback Menu

    2.4.1 Familiarizing the Functions in Playback Menu Click to call out the playback menu. 2.4.1.1 Select Playback File from Calendar Select recorded file by date and time. Select the Calendar from Playback menu and Calendar Search window will appear. User can select the date, hour, and minute and click OK to playback. The purple color blocks mean the block is selected.

  • Page 34: Using The Event Log Viewer

    2.4.1.2 Using the Event Log Viewer Show the record of activities that take place in the system. 1. Click the Event Log from playback menu. The Event log viewer window will appear. 2. Click Setting to select the Date. 3. To filter the records, select and click the select button to display Event, System, Operation, Network or All.

  • Page 35: To Set A Video Segment And Save

    (SEB5116H series) 2.4.1.4 To Set a Video Segment and Save Keep a portion of the recorded video. Following the below steps to Set and Save the Wanted Portion of the Recorded Video 1. While playback, right-click on playback screen and the A point of video segment is set. 2.

  • Page 36: To Backup The Playback File

    2.4.1.5 To Backup the Playback File In the Backup Setting dialog box, the number from 00 to 23 represent the time in 24-hour clock. The CH1 to CH16 represent the camera number. When you back up the file, you may find Qplayer application included in the backup folder.

  • Page 37: Playback Backup Video

    Playback Backup Video You can playback the backup files and output video segment by using QPlayer applications on the PC. When you back up the recorded file, QPlayer applications are automatically included in the backup folder. With QPlayer, it is the same as in Playback mode and supports 6 different split screen types to view all the video at the same time.
  • Page 38 Name Function (5) Playback Rewind: Wind back the recorded video file. Control Buttons Pause: Briefly stop playing the recorded video file. Play: To faster playback speed. When each time press faster button, the speed will double the playback speed (1/32X, 1/16X,1/8X, 1/4X, 1/2X, 1X, 2X, 4X, 8X, 16X, 32X).
  • Page 39 Name Function (12) Full screen View in full screen mode. To return, press the right button of the mouse or ESC on the keyboard or click the arrow icon. Click to exit from full screen mode When you switch to full screen in multiple-screen mode, Left click to toggle to only display one of the video in the multiple-screen mode or all.

  • Page 40: Chapter 3 Customizing The Dvr System

    Chapter 3 Customizing the DVR System In the Preview screen mode, click button to customize your DVR system. When the DVR setting menu appears, click the selection button that you want to configure. System Setup In the System Setting dialog box, there are 3 tabs – System, Network, and User. Click the tab to configure it.
  • Page 41 (2) Miscellaneous Video Format: display the video system according to your camera video system. If the video system setting is wrong, the video would appear abnormal. Date Format: Select the date format which wants to display in preview and playback mode AutoScan Period: Set the time gap of the Auto Scan function from 3 to 10 seconds.
  • Page 42 Part II Click Next to go to next setup page, click Back can go back previous setup page. Click OK to accept the new settings, click Cancel to exit without saving. (1) Storage Display the recorded video save path. User can format the hard disk and calculate the approximately capacity of hard disk for recording.
  • Page 43 Select the storage path and click Format button. When hard disk format is done, click OK to finish. In System Setting window, click Refresh to re-detect the hard disk. - Calculate: To calculate the capacity of hard disk for recording, click Calculate. And then, fill in the hard disk capacity in Expected HD Size (GB) or enter the expected record days in Expected Recording time (Days), and then, click Calculate to start calculation.

  • Page 44: Network Setup

    3.1.2 Network Setup Setup system network parameters. Click OK to save the configuration, click Cancel to exit without save. Click to call out virtual keyboard for entering value in necessary columns. In Select Cameras, SEB5108H series only has 8 channels will be available. (1) Transmitting Cameras Mark the camera number check box that user wants to make it accessible via internet using WebViewer, Remote Console, PDAViewer and HandyViewer (still image).
  • Page 45 Server Port: Fill in the port number that is using for WebViewer connection. Default is 80. ISP Port: Fill in the port number that is using for remote updating firmware. Default is 5005. (4) Other Dynamic DNS: Dynamic Domain Name Service is a data query service mainly used on the Internet for translating domain names into Internet addresses.

  • Page 46: User Setup

    3.1.3 User Setup User can create user accounts in different authority. Click Add to create a new user account. Click Cancel to exit without save. To modify the user account, select the account and click Edit. If user wants to remove the user account, select the account and click Delete.
  • Page 47 To create a user account: Click User tab from System setting interface. User should see the following setup windows. Refer the following explanation to create a user account. Click or right-click on the column to call out virtual keyboard for entering value in necessary columns. Click OK to save and exit the setup windows, click Cancel to exit without save.

  • Page 48: Camera Setup

    Camera Setup User can configure camera, motion mask, and PTZ camera parameters in this section. 3.2.1 Camera Setting Click to call out virtual keyboard for entering value in necessary columns. Click OK to save and exit the setup window, click Cancel to exit without save. In Select Cameras, SEB5108H series only has 8 channels will be available.

  • Page 49: Motion And Mask Setting

    3.2.2 Motion and Mask Setting Click Default will back to the factory default value. In Select Cameras, SEB5108H series only has 8 channels will be available. (1) Select Camera Select the camera number you want to configure. To select all cameras, mark Select All check box. (2) Motion Mask Enable/disable the motion detection and motion mask setup.

  • Page 50: Ptz Camera Setting

    select a video cover area. To un-select the cover area, drag from down to up. Also, user can click block one by one to select and un-select the cover area. 3.2.3 PTZ Camera Setting Configure PTZ camera parameters and preset position. Click OK to save the setting, click Cancel to exit without save.
  • Page 51 (5) PTZ Control Panel To control PTZ camera lens to move up, down, left, right, zoom in/out, focus in/out, and speed up/down when setup up preset position.

  • Page 52: Recording Setup

    Recording Setup In Select Cameras, SEB5108H series only has 8 channels will be available. (1) Camera Icons Select the camera number you want to set the recording setting. To select all the cameras, mark the Select All check box. To select more than one camera, Right click on the camera icon. To select one camera only, Left click on the camera icon.
  • Page 53 Sensor Trigger: Customize the initial state of the attached sensor. Condition Description NOT INSTALLED Indicates that there is no sensor connected NORMAL OPEN Indicates that the initial state of the sensor is normal open. Video recording initiates when there is a changes in the sensor state NORMAL CLOSE Indicates that the initial state of the sensor is normal close.

  • Page 54: Schedule Setting

    Schedule Setting Setup system schedule, record schedule, and holiday schedule for DVR system. 3.4.1 Setup System Schedule Schedule to record, disable network, reboot and disable alarm of all the cameras either weekly or one time. The number from 00 to 23 represent the time in 24-hour clock. The left most column display the days in a week.

  • Page 55: Setup Recording Schedule

    - None: No any recording at all. 5. Click on the blocks to set the schedule or click All to select all. To un-select the specific schedule blocks, click the None and click blocks to un-select. Click Clear will un-select all schedule block. 6.

  • Page 56: Setup Holiday Schedule

    Automatically switch to recorded at the maximum frame rate setting once a motion is detected and if there is no motion, it records at the minimum frame rate setting. Set the maximum frame rate setting in Chapter 3.3 Recording Setup. None The system won’t do any recording.
  • Page 57 the holiday that has been set. OFF means the DVR system will not record on the holiday that has been set. 5. To end setting, click OK to exit and accept the setting and Cancel to exit without saving the setting.

  • Page 58: Backup Setup

    Backup Setup In the Backup Setting dialog box, the number from 00 to 23 represent the time in 24-hour clock. The numbers from 01 to 16 represent the camera number. When you back up the file, you may find Qplayer application included in the backup folder. User need to install the Qplayer on PC to playback (see also Chapter 2.5).
  • Page 59 installation. 8. Click Backup Now to start archiving the selected file. When backup is 100% completed, click OK to end.

  • Page 60: Alarm Setting

    Alarm Setting In the Alarm Setting windows, click Add to create and set new alarm setting, click Delete to remove the selected alarm setting, Edit to modify exist alarm setting, click OK to exit and save the setting, Cancel to exit without saving. To set the Alarm Setting: 1.
  • Page 61 3. In Enable Time, the number from 00 to 23 represent the time in 24-hour clock. Click the time that user want to activate or deactivate the alarm function. 4. Select Trigger Any to activate if it falls to one of the conditions or Trigger All to activate if it falls to all conditions.
  • Page 62 - Relay Output Set to enable/disable the relay operation when the alarm is activated and to extend additional time in second before it stops the relay operation. In the Alarm Relay dialog box, mark from the available relay list; set to enable/disable the relay operation when the alarm is activated. Set the Retrieve time, you may to extend the relay operation time and set the duration in second.
  • Page 63 - Send E-mail Send an electronic text message.  Mail Server Enter the SMTP Server and port. If your e-mail system requires user identification, enable Authentication check box and enter ID and Password.  Mail To check if it is working, click Test button. From: Enter the sender e-mail address.
  • Page 64 - Start Recording Record the video from the selected camera. 1. Select the camera to enable/disable video recording. Enable All to select all cameras. 2. In the Frame Rate selection, select As Setting to record the number of frames based on the Recording Setting or Max to record the maximum of frames based on the available speed.
  • Page 65 - Alarm SOP Define the Standard Operation Procedure that SOP dialog will appear when alarm is occurred. - Send to CMS (Central Management System) Enable/disable the selected camera to send video to CMS when the alarm is activated. SEB5108H series only has 8 channels will be available.

  • Page 66: System Status Viewing

    System Status Viewing User can check DVR system status by select Status from setup menu.

  • Page 67: Chapter 4 Using The Usb Playback Console

    Chapter 4 Using the USB Playback Console Recommended system requirements Pentium® 4 2.4GHZ or above Windows® 2000/ XP/Vista DDR 256 MB Graphic function must support DirectDraw Audio card or built-in Speaker 1 available USB2.0 port Installing the USB Playback Console To install the USB Playback Console: Place Installation CD into the CD-ROM drive.

  • Page 68: Running The Usb Playback Console

    Running the USB Playback Console To run the application, click the icon on the PC desktop Name Function (1) Split Screen Mode Select from different screen view to playback the recorded video file of the entire camera or one camera on screen. (2) Exit Close the application.
  • Page 69 Name Function (6) Archive To select the video file source for playing. – DVR Recorded File (HD): To playback the recorded video from the hard disk which was recording video on the DVR system. (see also Chapter 4.3.2) – Backup File(.dvr): The file is backup and save in *.dvr file format. (see also Chapter 4.3.3)

  • Page 70: To Cut And Save The Portion Of The Recorded Video

    Name Function Search from the recorded activities that take place in the system (i.e., Sensor, (16) Event Search Motion, Video Loss, POS)(see also Chapter 4.3.6) (17) Intelligent Search Search the changes in the motion detector frame (See also Chapter 4.3.7) Turn on and off the sound (18) Sound /Sound bar Increase and decrease the volume...

  • Page 71: Playback Dvr Recorded File From Hard Disk

    4.3.2 Playback DVR Recorded File from Hard Disk Please have the hard disk which containing of recorded video data install on your PC or using external USB enclosure to connect to your PC. Click Archive button Select DVR Recorded File(HD) and click OK. Select the hard disk drive from Select Disk window and click OK The Playback Date/Time Selection window appears.

  • Page 72: Playback Backup File(*.Dvr)

    4.3.3 Playback Backup File(*.dvr) Click Archive button. Select Backup File(*.dvr) and click OK. Locate the backup file folder and click OK. When open the backup video file, just locate the where backup file folder is. Select the date on the calendar and the time from 00 to 23 to where to start playing the recorded video file.

  • Page 73: To Backup Recorded File

    4.3.4 To Backup Recorded File HDD backup function allows user to backup recorded file from hard disk. Click Adv. Function → HDD Backup on USB Playback Console UI. Select the source hard disk. In Backup date/time selection windows, select the date and time. 00-23 represents hours and 01-16 represents channels.

  • Page 74: To Search Using The Visual Search

    4.3.5 To Search Using the Visual Search 1. Click Visual Search. 2. In the Visual Search Setting dialog box, select the Camera number and the date. Then click OK. When a series of frames appear by date, click on the frame to display another series of frames and search by every Hour of that date, every 3Minutes of that hour, every 10 Seconds of that minute, every Second of that 10 seconds.

  • Page 75: To Search Using The Intelligent Search

    4.3.7 To Search Using the Intelligent Search 1. Click on the video screen on where you want to search. 2. Click Intelligent Search. The Intelligent Search text (red) would appear at the lower left corner of the screen. 3. When the Intelligent Search Setting dialog box and motion detector frame appear, you may adjust the sensitivity bar and the motion detector frame size and location.

  • Page 76: Chapter 5 Ienhance

    Chapter 5 iEnhance The bundled iEnhance is a video editing tool and can only be used with *.dvr and *.avf video file. It allows you to adjust the video picture quality, segment and save the selected portion of the video, zoom in and out the image, and print or save the screen shot.

  • Page 77: To Use Istable

    Name Function (12) Noise Reduce Adjust the softness and repair the damaged colours. (13) Sharpness Improve the overall image by enhancing edges. This gives the image more depth. (14) Effects Gray Scale: convert the image into black and white (monochrome). Normalize: adjust the brightness intensity.

  • Page 78: Chapter 6 Using The Remote Programs

    Chapter 6 Using the Remote Programs User can use Microsoft Internet Explorer to access DVR system by entering the IP address. To use this feature, make sure that your PC and DVR server both are connected to the internet and the Network feature is enabled.
  • Page 79 After installing the WebCamX.cab and when connecting to the DVR system, you are required to enter default account ID (Admin; capital in first letter) and password (111111) and select the type of network. Changing account password is strongly recommended.

  • Page 80: Familiarizing The Webviewer Buttons

    Familiarizing the WebViewer Buttons Right-clicking on the WebViewer video screen, enables you to start video recording, change video quality, switch camera and enable/disable DirectDraw. Name Function (1) DirectDraw Enhance the video quality. Not all graphic cards can support this function. If you cannot see the screen display correctly or screen is messed, please check with VGA card vendor.
  • Page 81 Name Function (9) Remote setup Change the DVR server settings (see also Chapter 6.1.1). (10) PTZ Control Initiate PTZ camera controller(see also Chapter 6.2) (11) Snapshot Capture and save the screen shot in *.bmp format. (12) Full screen Use the entire area of the screen to only display the video. To return, Right-click or press ESC on the keyboard.

  • Page 82: To Setup Remote System Setting

    6.1.1 To Setup Remote System Setting Click OK to exit and save the setting and Cancel to exit without saving the setting. The setting here applies to Remote DVR system only. After changed the DVR system setting, refresh your web browser in order to apply the new setting to the DVR system.

  • Page 83: Camera Setup

    6.1.1.2 Camera Setup (1) Camera icon Select the camera that user wants to set up. SEB5108H series only has 8 channels will be available. (2) Camera Title Enter a name for the camera (3) Preview display Enable/disable the previewing of selected camera on surveillance screen. When there is no video source on the camera, we suggest disabling it so that the system won’t detect it as video loss error.

  • Page 84: Record Setup

    6.1.1.3 Record Setup SEB5108H series only has 8 channels will be available. (1) Camera icon Select the camera that user wants to set up. To select channel 01~ 16, mark All. (2) Frame Rate Info Display Display the total frame rate and the available frame rate info that deepens on the Total Frame Rate and Surplus Frame Rate setting of every camera.
  • Page 85 Pre Record Time: set the time in second for the DVR system to pre-recording before the alarm happen. After Record Time: set the time in second for the DVR system to continue recording after the alarm has ended. (4) Record Schedule By default, in 24 hours, the recording schedule is set to always record every hour.

  • Page 86: Alarm Setup

    6.1.1.4 Alarm Setup 1. Select the alarm from (6) alarm list table. 2. In (1) user can change alarm Name and Description. 3. In (2) Enable Time, the number from 00 to 23 represent the time in 24-hour clock. Click the time that user want to activate or deactivate the alarm function.
  • Page 87 Retrieve time: set the waiting duration before system switching back to original Preview mode. If the retrieve time is un-mark, the alarm video will keep enlarging until user switch back to Preview mode manually. - Relay Output Set to enable/disable the relay operation when the alarm is activated and to extend additional time in second before it stops the relay operation.
  • Page 88 - Send E-mail Send an electronic text message.  Mail Server Enter the SMTP Server and port. If your e-mail system requires user identification, enable Authentication check box and enter ID and Password.  Mail To check if it is working, click Test button. ...
  • Page 89 - Start Recording Record the video from the selected camera. 1. In Recording Cameras, select the camera to enable/disable video recording. Mark All to select all cameras. 2. In the Frame Rate selection, select As Setting to record the number of frames based on the Recording Setting or Max to record the maximum of frames based on the available speed.
  • Page 90 - PTZ Preset Point Position the PTZ camera based on the preset point setting. 1. Next to the PTZ preset point check box, click Detail. 2. In the PTZ Setup dialog box, select the PTZ camera number in Select Camera. And then mark the Enable check box.

  • Page 91: Network Setup

    6.1.1.5 Network Setup SEB5108H series only has 8 channels will be available. (1) Transmitting Camera Select the camera to disable/enable camera can be view from remote site. (2) Network Type Select the IP Mode – Static IP, DHCP, or PPPOE Static IP: Assign a fixed and global IP address for the DVR system ...
  • Page 92  User ID & Password: fill in the user account and password that user applied from your ISP for PPPOE connection. (3) DDNS DDNS (Dynamic Domain Name Service) is a data query service mainly used on the Internet for translating domain names into Internet addresses. Users can register their own domain name on http://ddns.avers.com.tw.

  • Page 93: Familiarizing The Webviewer Ptz Buttons

    Familiarizing the WebViewer PTZ Buttons Name Function (1) Direction buttons Adjust and position the focal point of the PTZ camera. Click the center to pan automatically. (2) Zoom +/- Zoom in and out the image. (3) Select PTZ Choose to enable/disable the PTZ camera. In the Select PTZ dialog box, Select column, click to enable/disable viewing and controlling the PTZ camera.

  • Page 94: Familiarizing The Remote Console Buttons

    Familiarizing the Remote Console Buttons Name Function (1) Exit Close/minimize remote console application (2) Split Screen Mode Select from 6 different split screen type to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen. SEB5108H series doesn’t support 16, 13, and 32-split screen mode.
  • Page 95 Name Function (12) Event Log Show the record of activities that take place in the system. To filter the records, select and click the option button to only display EVENT, SYSTEM, OPERATION, NETWORK or ALL. User also can filter the event log by Date or enter the specific key work in Find Text to search.

  • Page 96: To Setup Remote Console Setting

    6.3.1 To Setup Remote Console Setting Click Setup button to call out the System Setting windows. Click OK to exit and save the setting and Cancel to exit without saving the setting. (1) Storage Path Set the directory on where to save the data. When there is not enough free space to record one hour data, the system automatically replaces the oldest data.

  • Page 97: Using The Remote Playback

    Using the Remote Playback To use this feature, first switch to playback mode by clicking the Playback icon, and then, select the source of the file. In the Select Playback Mode dialog box, choose Local Playback to open the file that is recorded in the Remote Console, and Remote Playback to open the file that is recorded on the DVR server.
  • Page 98 4. The system divides the selected hour into 16 video thumbnails. In the Time Selection screen, click on the video thumbnail you want to download (see also Chapter 6.4.2).

  • Page 99: Familiarizing The Local Playback Buttons

    6.4.1 Familiarizing the Local Playback Buttons Name Function (1) Exit Click to exit or minimize the application. The password is required for exit or minimize. Show the progress of the file being played. You may move the bar to seek at (2) Progress bar any location of the track.
  • Page 100 Name Function Begin: Move at the beginning of the recorded video file. (5) Playback Control Previous: Go back to the previous frame. Buttons Slower: Play the recorded video file at the speed of 1/2x, 1/4x, 1/8x, 1/16x, or 1/32x. Rewind: Wind back the video file. Pause: Briefly stop playing the recorded video file.
  • Page 101 Name Function select and click the option button to only display Event, System, Operation, Network or POS. (15) Visual Search Search from a specific camera by Date, Hour, Minute, 10 Seconds and Second. (See also Chapter 6.4.1.2) (16) Find Next Search for the next event or changes in the motion detector frame.

  • Page 102: To Cut And Save The Wanted Portion Of The Recorded Video

    6.4.1.1 To Cut and Save the Wanted Portion of the Recorded Video 1. Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to start the cut. Then, click Segment to set the begin mark. 2.

  • Page 103: To Search Using The Visual Search

    6.4.1.2 To Search Using the Visual Search 4. Click Visual Search. 5. In the Visual Search Setting dialog box, select the Camera number and the date. Then click OK. When a series of frames appear by date, click on the frame to display another series of frames and search by every Hour of that date, every 3Minutes of that hour, every 10 Seconds of that minute, every Second of that 10 seconds.

  • Page 104: To Search Using The Intelligent Search

    6.4.1.3 To Search Using the Intelligent Search 1. Click on the video screen on where you want to search. 2. Click Intelligent Search. The Intelligent Search text (red) would appear at the lower left corner of the screen. 3. When the Intelligent Search Setting dialog box and motion detector frame appear, you may adjust the sensitivity bar and the motion detector frame size and location.

  • Page 105: Familiarizing The Download And Playback Buttons

    6.4.2 Familiarizing the Download and Playback Buttons Name Function (1) Exit Click to close the application. (2) Progress bar Show the progress of the file being played. You may move the bar to seek at any location of the track. (3) Playback Begin: Move at the beginning of the recorded video file.
  • Page 106 Name Function (10) Visual Search Search from a specific camera by Date, Hour, Minute, 10 Seconds and Second (See also Chapter 6.4.1.2). (11) Audio Enable/disable audio. (12) De-interlace To enhance the video quality. Set the de-interlace mode to #1, if you are capturing motionless picture and #2, if it captures lots of movement.

  • Page 107: Familiarizing The Realtime Playback Buttons

    6.4.3 Familiarizing the Realtime Playback Buttons Name Function (1) Exit To close or minimize the application. The authorization password is requires. (2) Split Screen Mode Select from 6 different split screen type to playback the recorded video file of all the camera, or one camera.
  • Page 108 Name Function – Select the date on the calendar and the time from 00 to 23 to where to start (6) Archive playing the recorded video file. – Open File:User can open the recorded file from certain location. – Click Channel 01~ 16 and Channel 17 ~ 32 button to switch to different channel group of playback calendar if DVR supports more than 16 channels.

  • Page 109: Appendix A Registering Domain Name

    Appendix A Registering Domain Name DDNS (Dynamic Domain Name Service) is a data query service mainly used on the Internet for translating domain names into Internet addresses. It allows remote clients to intelligently search dynamic servers without any previous enquiring for servers’ Internet addresses. In order to take advantage of this intelligent service, first register your domain name on the following Web site http://ddns.avers.com.tw User Login...

  • Page 110: Appendix B Network Service Port

    Appendix B Network Service Port The following table shows the ports that DVR server uses for certain network service. Port# Variable Remote Console 5550 WebViewer CM3000 Firmware Update 5005 DVR DDNS (Upload / Download) 53/1053...

  • Page 111: Appendix C Installing 3

    Appendix C Installing 3 and 4 Hard Disk Before install 3 and 4 hard disk, please make sure to purchase the 90W power adaptor. Please refer to the below steps to install 3 and 4 hard disk. 1. Loosen all screws (2 sides and back) 2.
  • Page 112 7. Turn the plate and hard disk over carefully and 8. Plug the SATA cable into SATA connector on the screwed the hard disk on the plate. If hard disk PC board cannot be fit to the screw hole, then, you may adjust the hard disk position to fit the screw hole.
  • Page 113 12. Place the 4 hard disk on the HDD holder. The 13. Screw (6 screws for both side) the hard disk on head side of hard disk is same side of the screw the HDD holder. hole of HDD holder. 14.
  • Page 114 17. Push the HDD holder forward and screw hole of HDD holder will match the screw hole on the DVR unit and HDD holder should hook on the stabled hook on the DVR unit. User can look through the DVR from position of FAN to adjust the HDD holder position to make sure the HDD holder has hooked into stabled hook on the DVR unit.

  • Page 115: Warranty Notice

    Any other cause which does not relate to a product defect 3. Cartons, cases, batteries, cabinets, tapes, or accessories used with product 4. AVerMedia does not warrant that this product will meet your requirements; it is your responsibility to determine the suitability of this product for your purpose WHAT WE WILL AND WILL NOT PAY FOR We will pay labor and material expenses for covered items.

This manual is also suitable for:

Seb5108h+Averdigi seb5116h liteSeb5116h+Averdigi seb5116h seriesAverdigi seb5116h +

Table of Contents
