CAT5 cable to Smart
CAT5 Computer port
Connecting a SUN RICC

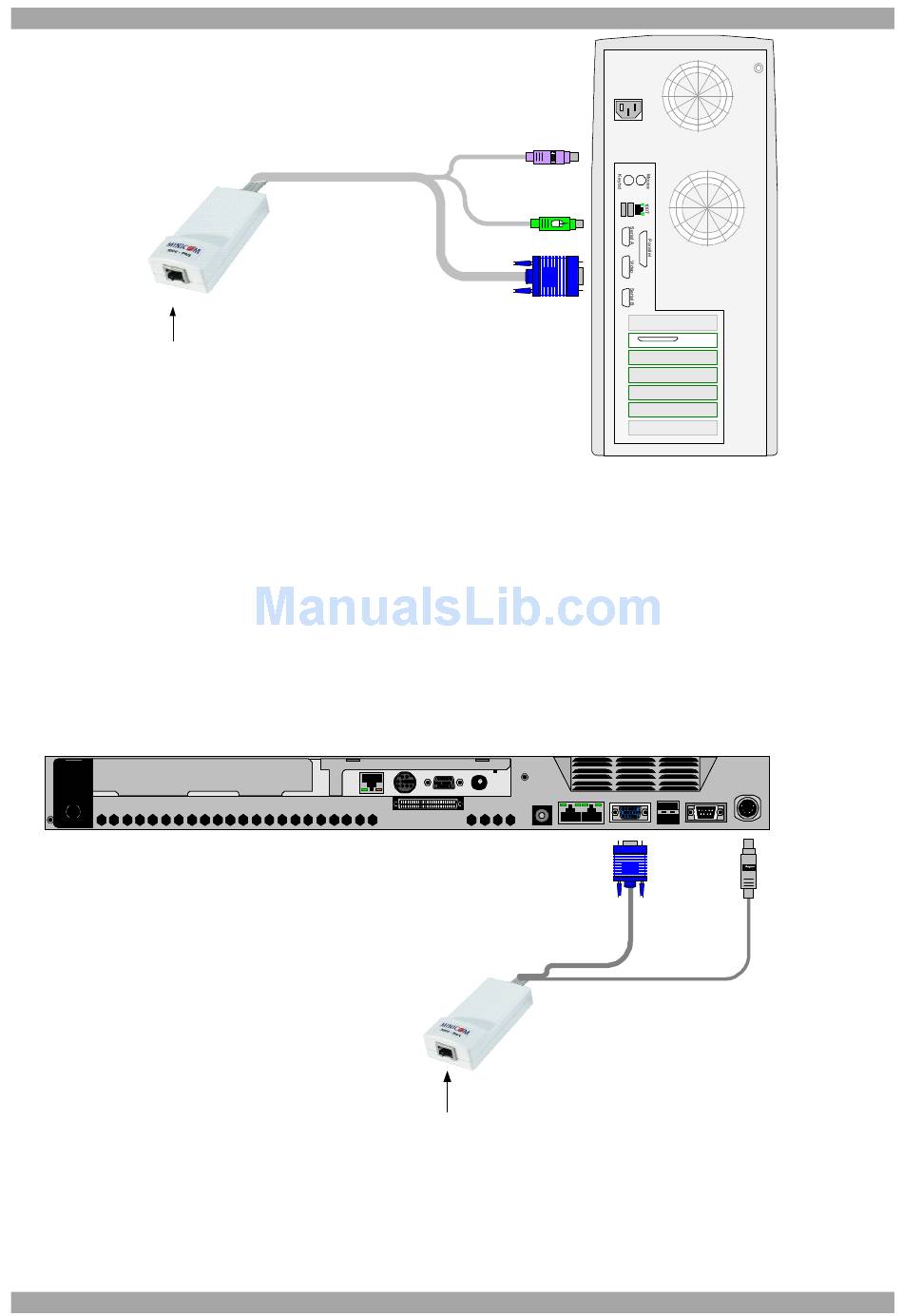

Figure 6 illustrates the SUN RICC and its connections.
To connect the SUN RICC:
1. Connect the Screen connector to the computer's Video card.
2. Connect the Keyboard connector to the computer's Keyboard port.
INSTALLATION GUIDE
RICC
Figure 5 PS/2 RICC
RICC
CAT5 cable to Smart
CAT5 Computer port
Figure 6 SUN RICC
To computer's
keyboard port
To computer's
mouse port
To computer's
Video card
To Computer's
Video Card
.
8
NetServer tc2100
SCSI
PCI 33Mx32b
PCI 33Mx32b
PCI 33Mx32b
PCI 33Mx32b
To Computer's
Keyboard Port
