Connecting a USB RICC
The RICC USB supports Windows 98 SE and later, MAC, SUN and SGI. Figure 7
illustrates the USB RICC and its connections.
To connect the USB RICC:
1. Connect the Screen connector to the computer's Video card.
2. Connect the USB connector to the computer's USB port.
VGA Extender cable
Where the RICC's Screen connector won't reach the computer's Video card,
connect the VGA Extender cable to the RICC and then follow the instructions
below.

10. Connecting the CAT5 cables

1. Connect one connector to the RICCs RJ45 port.
2. Connect the other connector to one of the Smart 16 IP's Computer ports.
3. Follow the above 2 steps for each computer.

11. Connecting the KVM console

To connect a KVM console to the Smart 16 IP:
1. Connect the monitor's connector to the Smart 16 IP's Monitor port.
2. Connect the keyboard's connector to the Smart 16 IP's Keyboard port.
3. Connect the mouse's connector to the Smart 16 IP's Mouse port.
SMART CAT5 SWITCH 16 IP
RICC
CAT5 cable to Smart
CAT5 Computer port

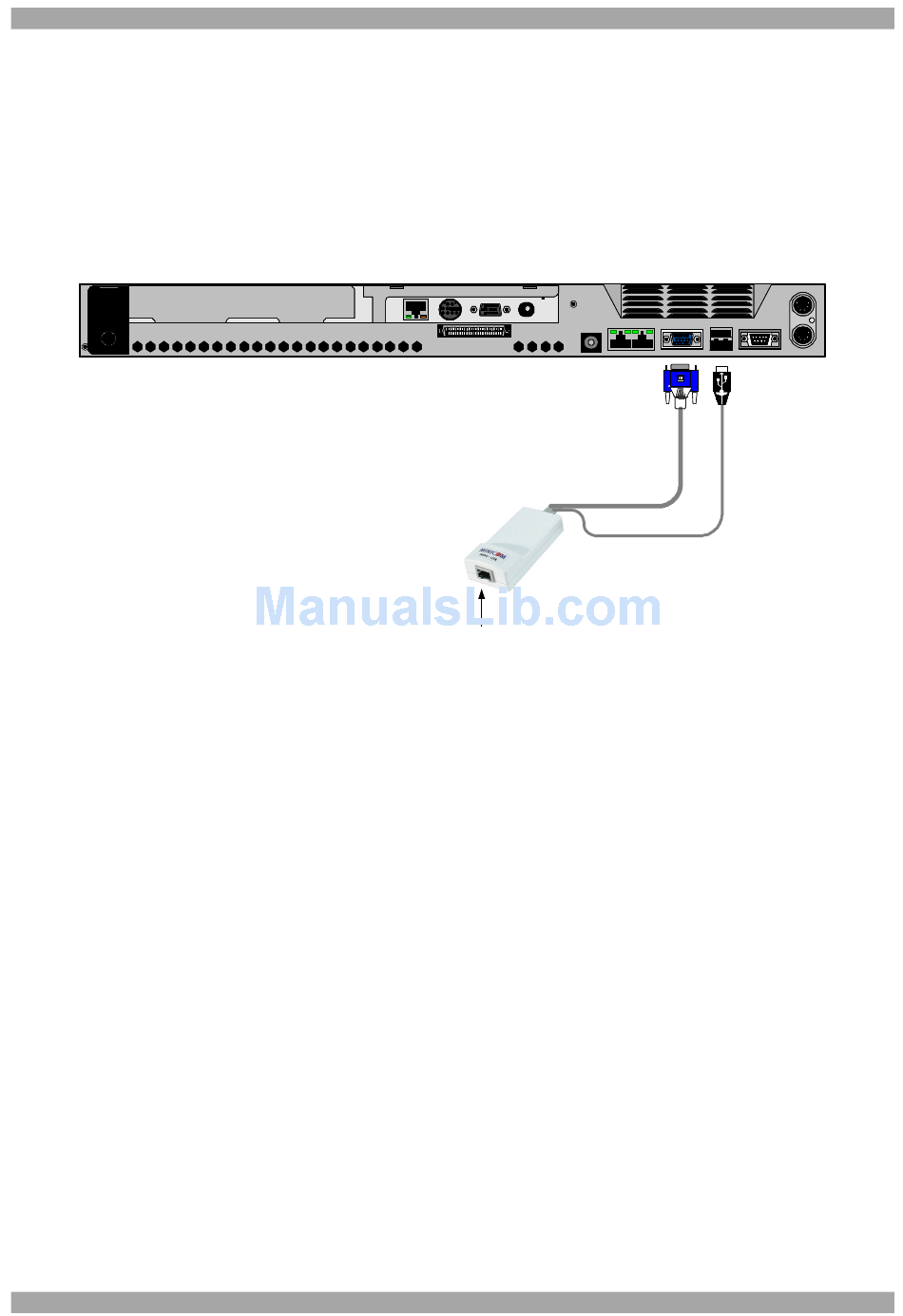

Figure 7 USB RICC
.
9
To Video Card To USB Port
