4. System features

·
KVM (keyboard, video, mouse) access over IP or analogous telephone line.
·
Advanced On Screen Display management (including multi-layer security)
·
Automatically senses video resolution for best possible screen capture
·
High-performance mouse tracking and synchronization
·
Operate the system using an On Screen Display (OSD) or Control software
or keyboard hotkeys
·
Create multi-level cascade arrangements. For example by cascading the
Smart 16 IP 16 Port model, connect up to up to 256 computers in the system
·
Computers can be placed up to 10m/33ft from the Smart 16 IP
·
Multi-platform — supports PS/2, SUN, and USB servers
Smart 16 IP supports PS/2 type keyboards and mice and HD 15 video output. See
the pin assignments in Appendix A.
Smart 16 IP automatically detects the current video mode of the console, however
manual tuning is recommended to get the best video quality. This results in a screen
resolution of 1600x1200 dots with a refresh rate of 60 Hz.
INSTALLATION GUIDE

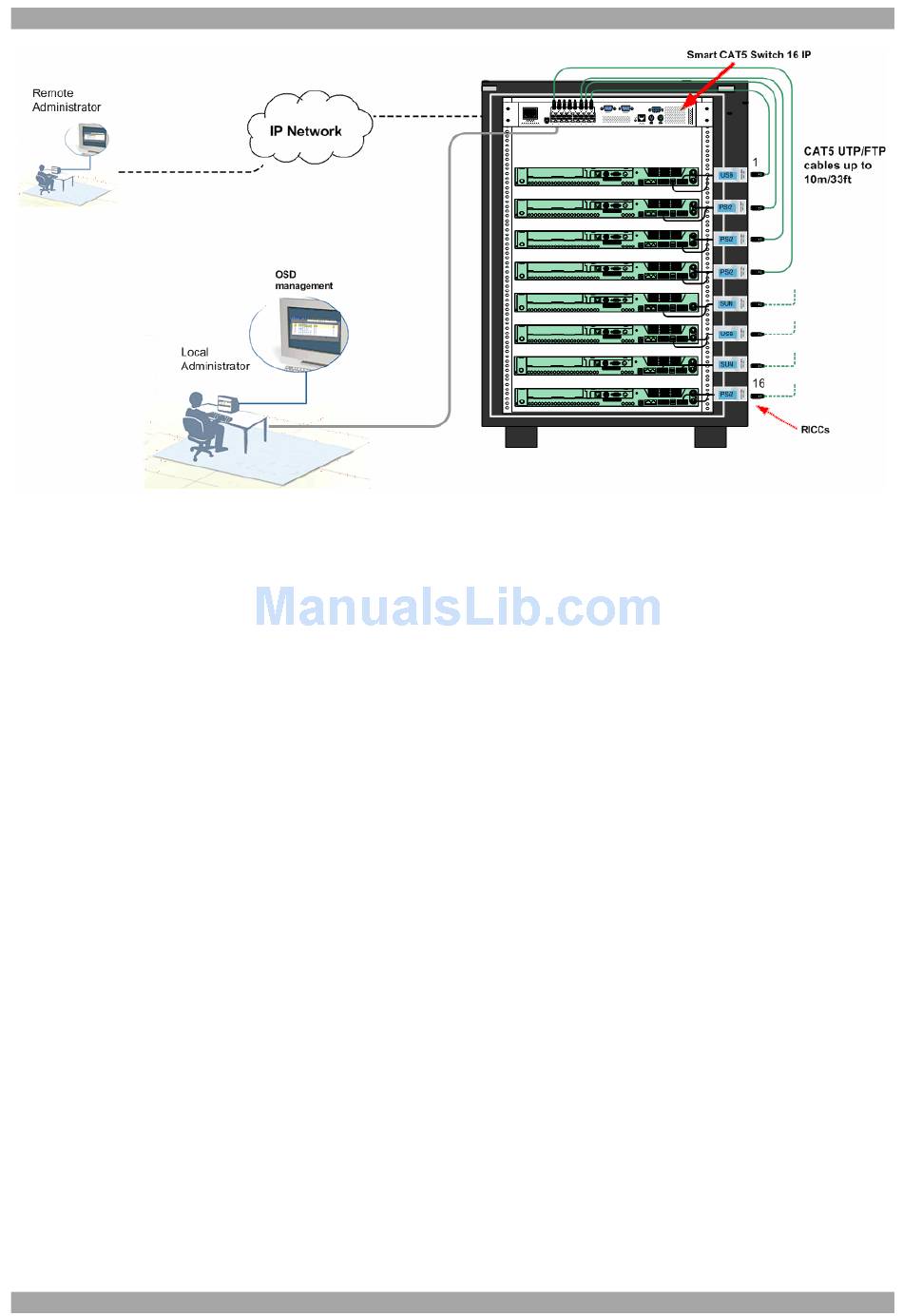

Figure 1 Smart 16 IP usage scenario
.
