SMART CAT5 SWITCH 16 IP

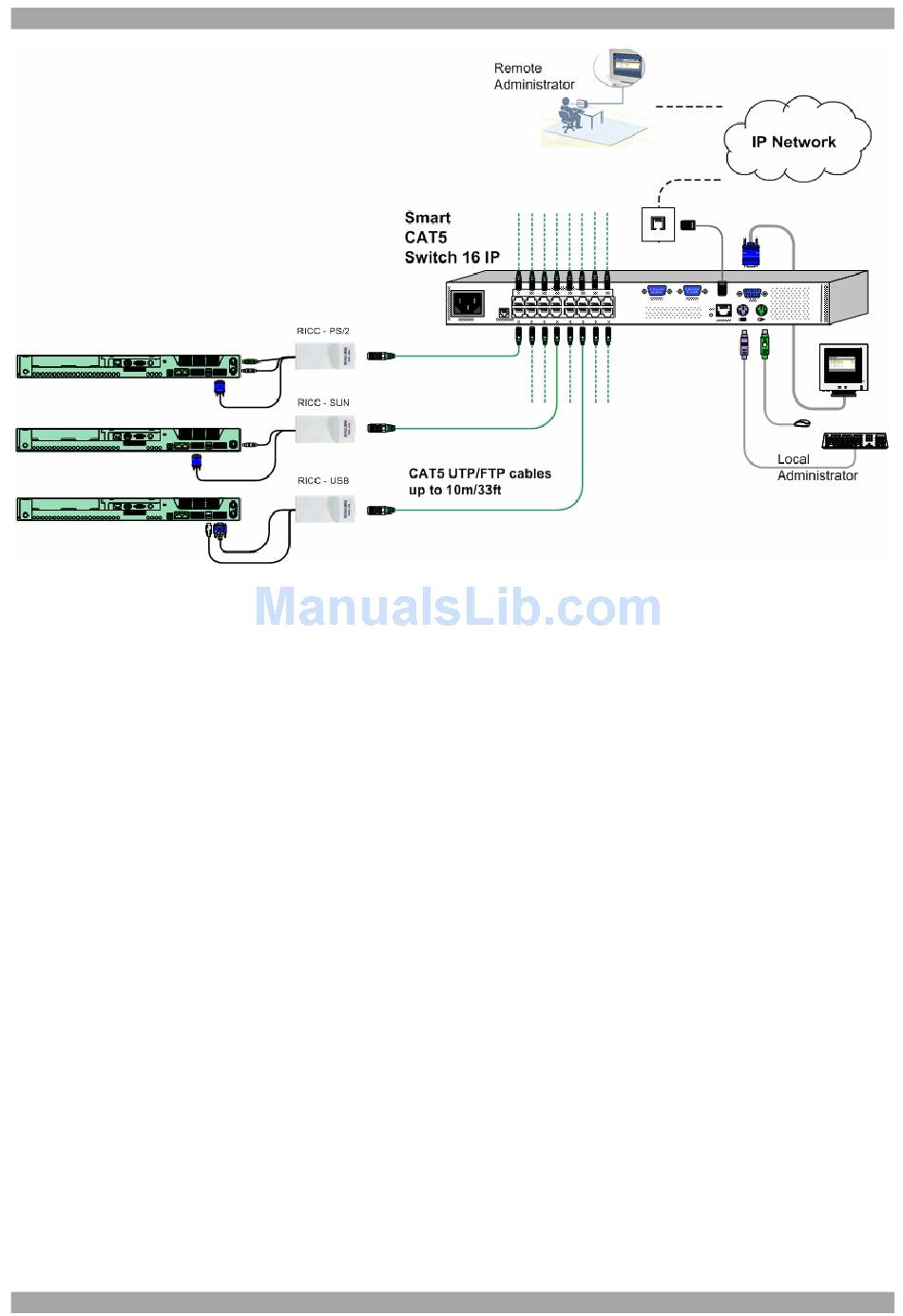

Figure 4 Smart 16 IP system connections
9. The RICCs
The RICCs draw their power from the computer's keyboard port (RICC PS/2, SUN)
or from the USB port (RICC USB).
Connecting a PS/2 RICC
Figure 5 illustrates the RICC.
To connect the PS/2 RICC:
1. Connect the Screen connector to the computer's Video card.
2. Connect the Keyboard connector to the computer's Keyboard port.
3. Connect the Mouse connector to the computer's Mouse port.
.
7
