Front Panel

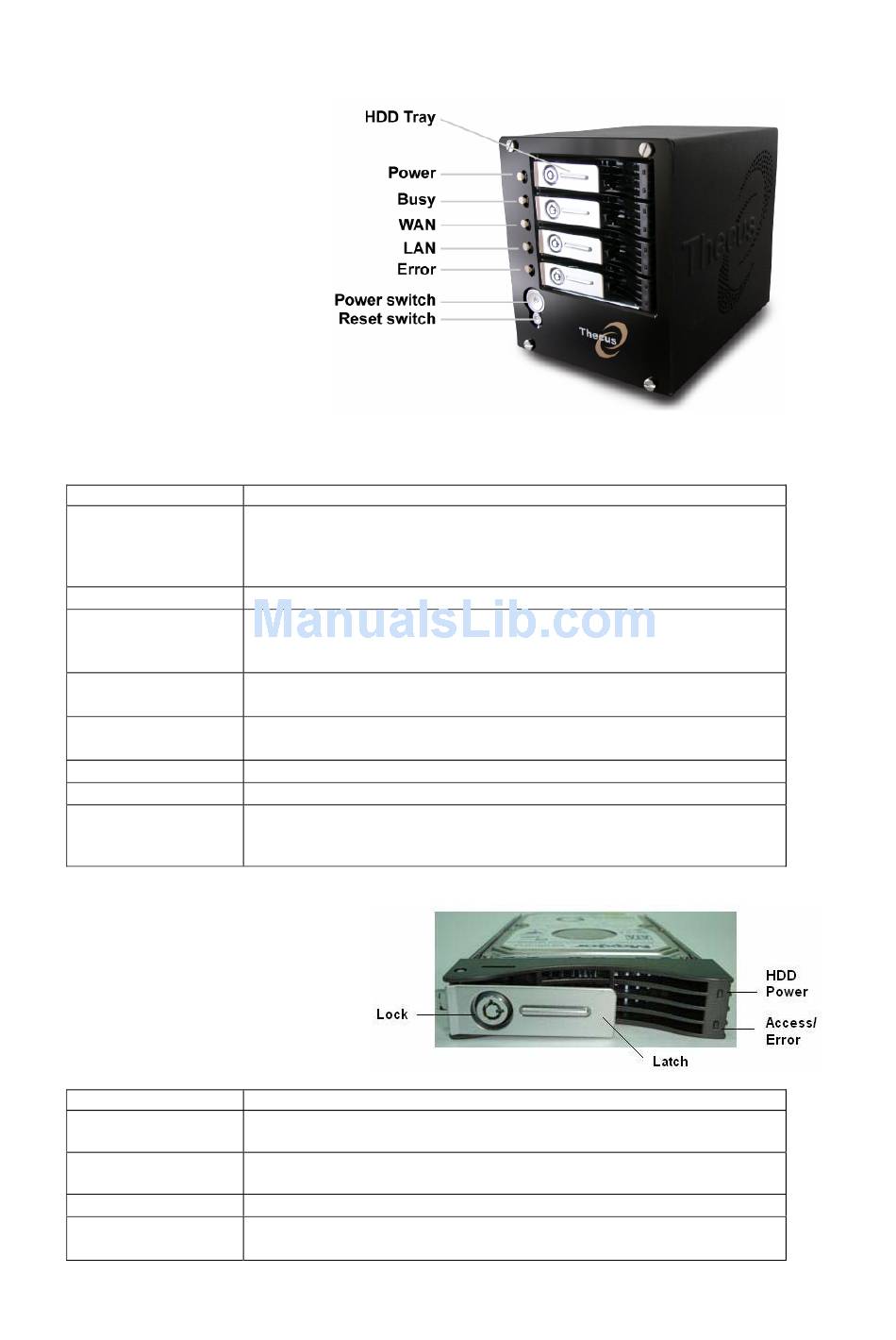

The N4100+'s front panel
displays the unit's array of
status LEDs, and is also
where you'll find the reset
and power buttons. See
the table below for a
detailed explanation of
each:
Item
HDD Trays
Power LED
Busy LED
WAN LED
LAN LED
Error LED
Power Button
Reset Button

Hard Disk Tray

The N4100+'s hard disk trays
each have a lock, a latch, and
two indicators.
Item
Lock
Latch
HDD Power LED
Access/Error LED
Description
•
There are four hard disk drive (HDD) trays. Each tray
supports a 3.5-inch SATA HDD. The trays have locks for
added physical security and keys are provided with the
package.
•
Solid blue: N4100+ is powered on
•
Blinking orange: system startup or maintenance; data
inaccessible
•
Off: system startup complete; system operating normally
•
Solid green: network link
•
Blinking green: network activity
•
Solid green: network link
•
Blinking green: network activity
•
Solid red: system error detected
•
Power on/off N4100+
•
Used to reset the N4100+. Please see Chapter 7:
Troubleshooting >
Admin Password
Description
•
The tray lock lets you physically secure the HDD with
accessory keys.
•
Use the latch to open and remove or close and secure the
tray.
•
Solid blue: HDD is powered on
•
Blinking green: data is being accessed
•
Blinking red: hard disk error
Resetting NAS IP Address and
for reset procedure.
