Front Panel

N0503:

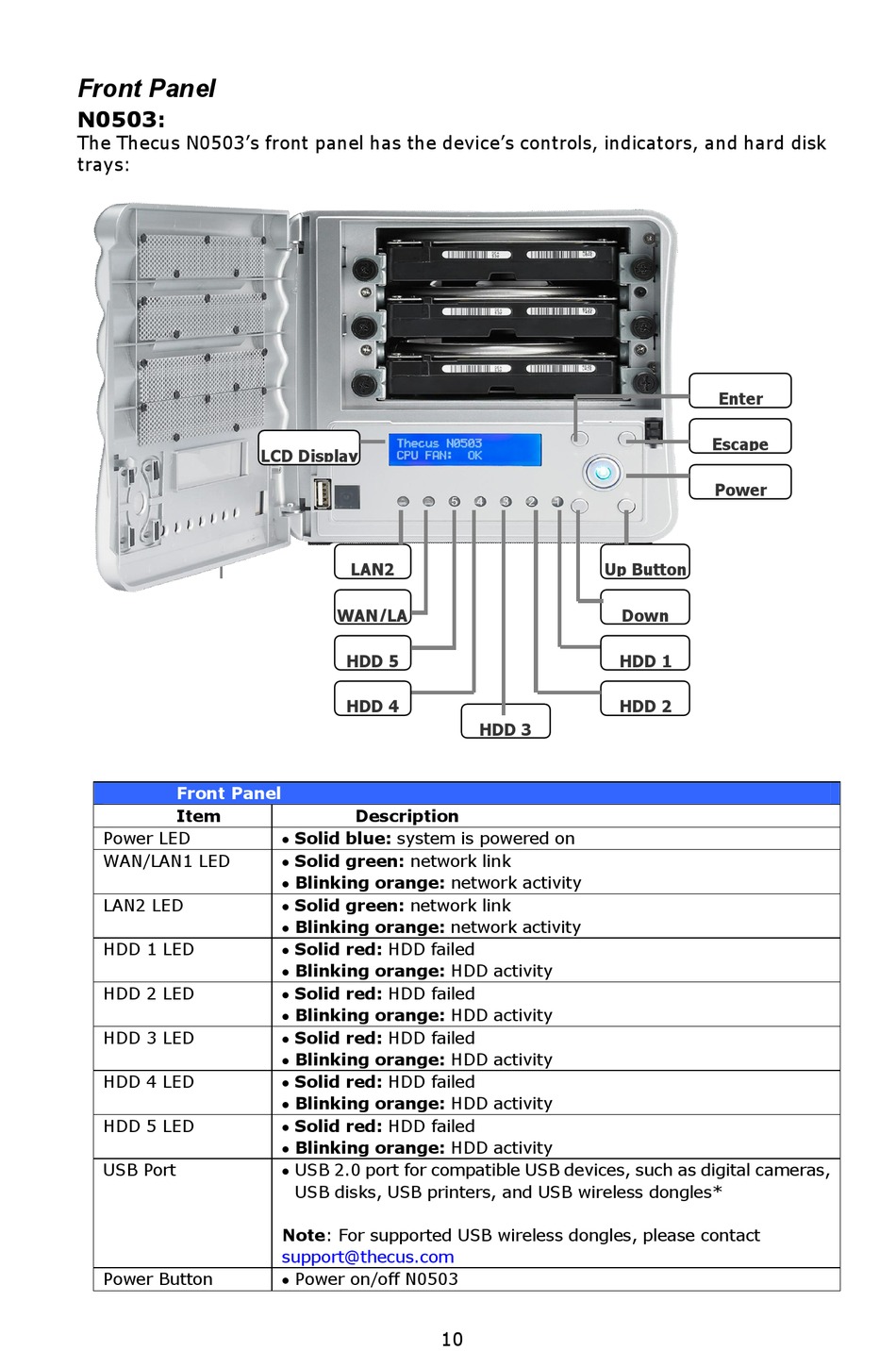

The Thecus N0503's front panel has the device's controls, indicators, and hard disk
trays:
Front Panel
Item
Power LED
WAN/LAN1 LED
LAN2 LED
HDD 1 LED
HDD 2 LED
HDD 3 LED
HDD 4 LED
HDD 5 LED
USB Port
Power Button
LCD Display
LAN2
WAN/LA
HDD 5
HDD 4
Description
 Solid blue: system is powered on
 Solid green: network link
 Blinking orange: network activity
 Solid green: network link
 Blinking orange: network activity
 Solid red: HDD failed
 Blinking orange: HDD activity
 Solid red: HDD failed
 Blinking orange: HDD activity
 Solid red: HDD failed
 Blinking orange: HDD activity
 Solid red: HDD failed
 Blinking orange: HDD activity
 Solid red: HDD failed
 Blinking orange: HDD activity
 USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, USB printers, and USB wireless dongles*
Note: For supported USB wireless dongles, please contact
support@thecus.com
 Power on/off N0503
Up Button
HDD 3
10
Enter
Escape
Power
Down
HDD 1
HDD 2
