RAID Information
Item

RAID Level

Total Capacity
Status
Used Percentage
Stripe Size
Remaining Time
Rebuild Speed
To configure your RAID settings, press the Config button to go to the RAID
Configuration screen.

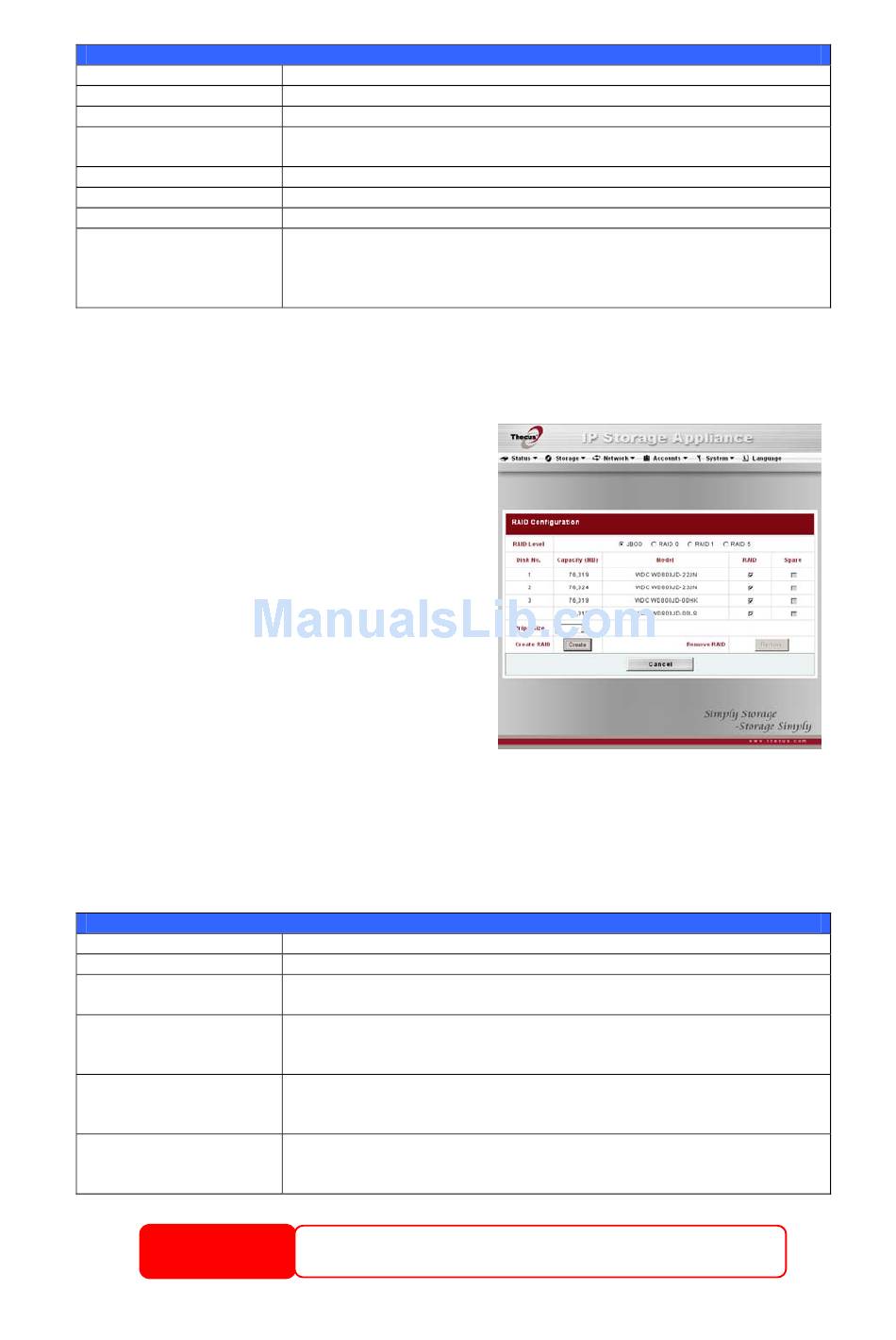

RAID Configuration

On the RAID Information screen, press
the Config button to go to the RAID
Configuration screen. In addition to RAID
disk information and status, this screen lets
you make RAID configuration settings.
For more information on RAID, see
Appendix C: RAID
RAID Level
You can set the storage volume as either None, JBOD, RAID 0, RAID 1 or
RAID 5. RAID configuration is usually required only when you first set up the
device. A brief description of each RAID setting follows:
RAID Levels
Level
None
JBOD
RAID 0
RAID 1
RAID 5
WARNING
Description
Shows the current RAID configuration.
Shows total capacity of the RAID configuration.
Indicates status of the RAID. Can read either Healthy or
Failed.
Displays percentage of used RAID capacity.
Shows the current disk stripe size.
Indicates time remaining until the RAID is finished building.
There are two speed settings you can select when rebuilding
RAID:
Low - longer rebuild time, faster system response
High - shorter rebuild time, slower system response
Basics.
Description
There is no existing storage volume.
The storage volume is a single HDD with no RAID support. JBOD
requires a minimum of 1 disk.
Provides data striping but no redundancy. Improves
performance but not data safety. RAID 0 requires a minimum of
2 disks.
Offers disk mirroring. Provides twice the read rate of single
disks, but same write rate. RAID 1 requires a minimum of 2
disks.
Data striping and stripe error correction information provided.
Excellent performance and good fault tolerance. RAID 5 requires
a minimum of 3 disks. RAID 5 can sustain one failed disk.
If the administrator improperly removes a hard disk that should not be removed
when RAID status is Degraded, all data will be lost.
