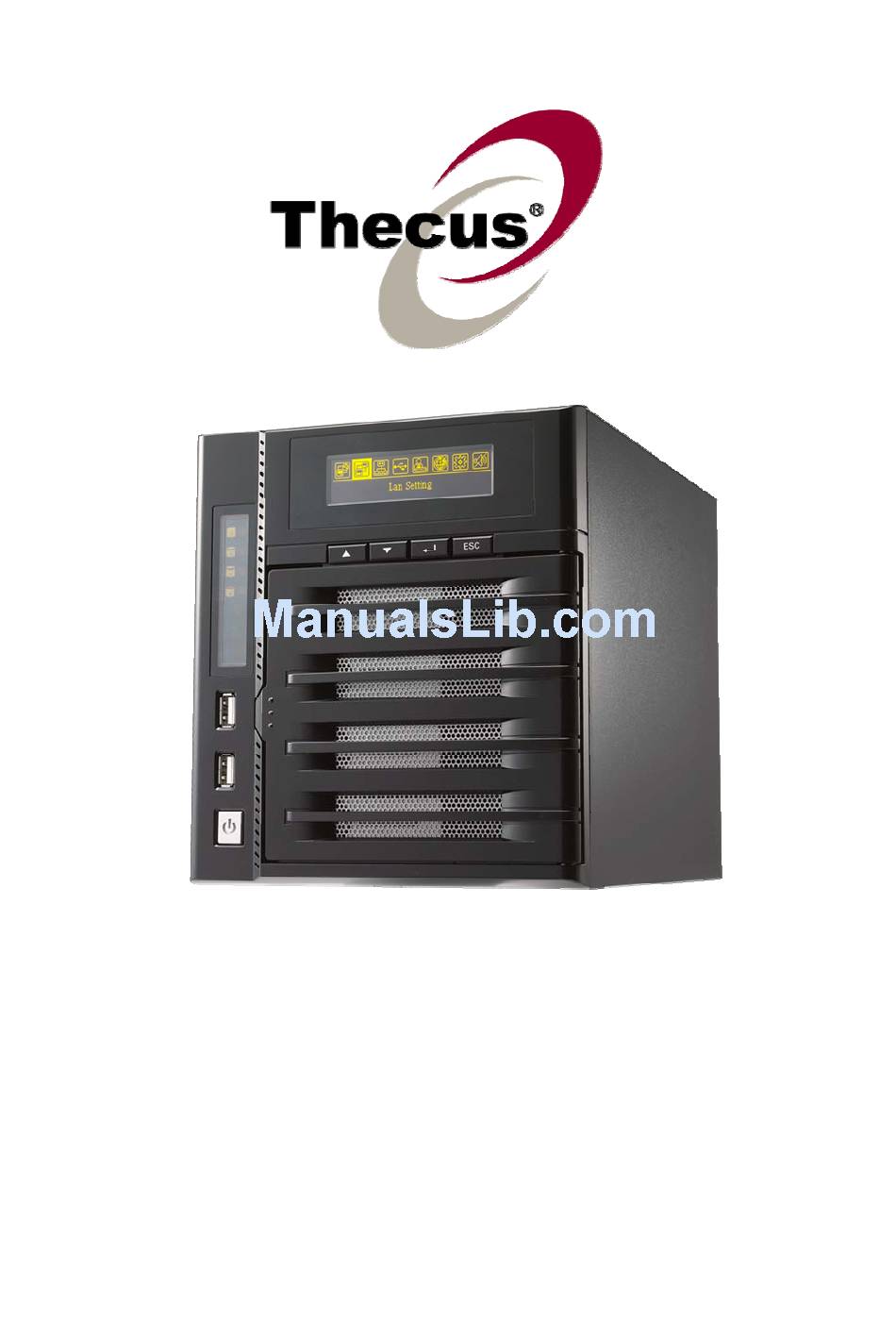

  • Page 1 Thecus N4200 User’s Manual...

  • Page 2: Copyright And Trademark Notice

    About This Manual All information in this manual has been carefully verified to ensure its correctness. In case of an error, please provide us with your feedback. Thecus Technology Corporation reserves the right to modify the contents of this manual without notice.

  • Page 3: Safety Warnings

    Safety Warnings For your safety, please read and follow the following safety warnings: • Read this manual thoroughly before attempting to set up your N4200. • Your N4200 is a complicated electronic device. DO NOT attempt to repair it under any circumstances. In the case of malfunction, turn off the power immediately and have it repaired at a qualified service center.

  • Page 4: Table Of Contents

    Before You Begin .................14 Hard Disk Installation................14 Cable Connections ................15 Chapter 3: First Time Setup ............16 Overview .....................16 Thecus Setup Wizard ................16 OLED Operation ...................18 OLED Controls ................18 Display Mode ................18 USB Copy ....................19 Management Mode............... 19 Typical Setup Procedure ..............19...
  • Page 5 Logs ..................26 System Management ................27 Time: Setting system time ............27 Notification configuration .............. 27 Firmware Upgrade ............... 28 UPS Setting ................29 Schedule Power On/Off..............30 Wake-Up On LAN (WOL) ............... 31 SNMP Support ................31 Utility..................32 System Network ..................36 WAN Configuration...............
  • Page 6 Setting Up an Nsync Target on an Nsync Device .......... 94 Setting Up an Nsync Target on Another Device..........94 Designating N4200 as an Nsync Target ............94 Thecus Backup Utility ..............95 Windows XP Data Backup.............. 95 Apple OS X Backup Utilities ............96 Chapter 5: Using the N4200............
  • Page 7 Hard Drive Damage..............115 Replacing a Hard Drive ............... 115 RAID Auto-Rebuild ..............115 Chapter 7: Troubleshooting ............116 Forgot My Network IP Address ............116 Can't Map a Network Drive in Windows XP ........116 Restoring Factory Defaults ..............116 Problems with Time and Date Settings ..........
  • Page 8 Appendix E: UPS Compatibility List..........142 Appendix F: Licensing Information ..........146 Overview ................... 146 Source Code Availability ..............146 CGIC License Terms................147 GNU General Public License ............... 147...

  • Page 9: Chapter 1: Introduction

    Chapter 1: Introduction Overview Thank you for choosing the Thecus N4200 IP Storage Server. The Thecus N4200 is an easy-to-use storage server that allows a dedicated approach to storing and distributing data on a network. Data reliability is ensured with RAID features that provide data security and recovery—over ten Terabyte of storage is available using...

  • Page 10: Media Server

    Media Server With the built-in Media Server capability, the N4200 provides media streaming service to stand-alone networked home media adapters that support the UPnP AV protocol or are Digital Living Network Alliance (DLNA) standard compliant. To set up the Media Server, refer to Chapter 4: System Network >Media Server.

  • Page 11: Package Contents

    Package Contents Your N4200 package should contain the following items: N4200 Unit x1 Power adapter x1 QIG (Quick Installation Guide) x1 CD-Title x2 (DriveClone5 Pro CD & Universal CD) Ethernet Cable x1 Screw Kit & Key-Luck x1 HDD Compatibility list Card x1 Multiple Languages Warranty Card x1 Please check to see if your package is complete.

  • Page 12: Front Panel

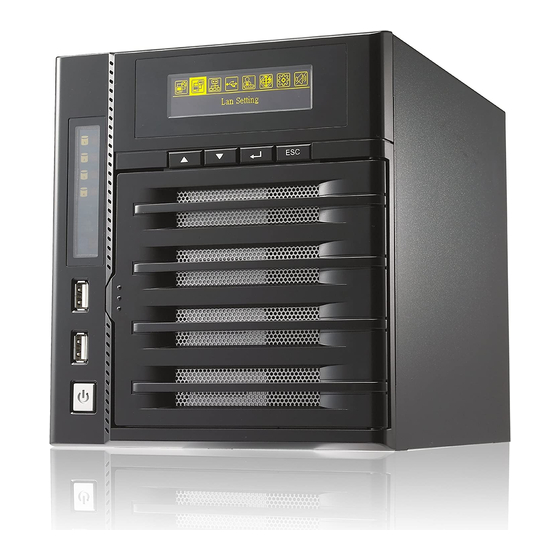

    Front Panel The Thecus N4200’s front panel has the device’s controls, indicators, and hard disk trays: Front Panel Item Description Power Button • Power on/off N4200 OLED • Displays current system status and messages • OLED screen saver will be enabled after screen is left idle for more than 3 mins •...

  • Page 13: Rear Panel

    Rear Panel The N4200 rear panel features ports and connectors. Item Description • Power Connector For connect the power adaptor • WAN Port WAN port for connecting to an Ethernet network through a switch or router • LAN Port LAN port for connecting to an Ethernet network through a switch or router •...

  • Page 14: Chapter 2: Hardware Installation

    Chapter 2: Hardware Installation Overview Your N4200 is designed for easy installation. To help you get started, the following chapter will help you quickly get your N4200 up and running. Please read it carefully to prevent damaging your unit during installation. Before You Begin Before you begin, be sure to take the following precautions: 1.

  • Page 15: Cable Connections

    Cable Connections To connect the N4200 to your network, follow the steps below: 1. Connect an Ethernet cable from your network to the WAN port on the back panel of the N4200. 2. Connect the provided power cord into the universal power socket on the back panel.

  • Page 16: Chapter 3: First Time Setup

    N4200 so that it is accessible to your network users. There are two ways to set up your N4200: using the Thecus Setup Wizard or the OLED display. Follow the steps below for initial software setup.
  • Page 17 6. Name your N4200 and configure the network IP address. If your switch or router is configured as a DHCP Server, configuring the N4200 to automatically obtain an IP address is recommended. You may also use a static IP address and enter the DNS Server address manually. 7.

  • Page 18: Oled Operation

    The Thecus Setup Wizard is designed for installation on systems running Windows NOTE XP/2000 or Mac OSX or later. Users with other operating systems will need to install the Thecus Setup Wizard on a host machine with one of these operating systems before using the unit. OLED Operation The N4200 is equipped with an OLED on the front for easy status display and setup.

  • Page 19: Usb Copy

    The N4200 will rotate these messages every one-two seconds on the OLED display. USB Copy The USB Copy function enables you to copy files stored on USB devices such as USB disks and digital cameras to the N4200 by press button. To use USB copy, follow the steps below: 1.

  • Page 20: Step 1: Network Setup

    Step 1: Network Setup From the Web Administration Interface, you can configure the network settings of the N4200 for your network. You can access the Network menu from the menu bar. For details on how to configure your network settings, refer to Chapter 4: System Network Step 2: RAID Creation...
  • Page 21 Printer Server Photo Server...

  • Page 22: Chapter 4: System Administration

    Chapter 4: System Administration Overview The N4200 provides an easily accessible Web Administration Interface. With it, you can configure and monitor the N4200 anywhere on the network. Web Administration Interface Make sure your network is connected to the Internet. To access the N4200 Web Administration Interface: 1.

  • Page 23: Message Bar

    Menu Bar Item Description System Information Current system status of the N4200. System Management Various N4200 system settings and information. System Network Information and settings for network connections, as well as various services of the N4200. Storage Information and settings for storage devices installed into the N4200.

  • Page 24: Logout

    Green: Systematic temperature is normal. Temperature. Red: Systematic temperature is unusual. Click to go to System Status page as short cut. Green: Connection to network is normal. Network. Red: abnormal connection to the network Logout Click to logout Web Administration Interface. Language Selection The N4200 supports multiple languages, including: English...

  • Page 25: System/Service Status

    Product Information Item Description Manufacturer Displays the name of the system manufacturer. Product No. Shows the model number of the system. Firmware version Shows the current firmware version. Up time Displays the total run time of the system. System/Service Status From the Status menu, choose the System item, System Status and Service Status screens appear.

  • Page 26: Logs

    Logs From the System Information menu, choose the Logs item and the System Logs screen appears. This screen shows a history of system usage and important events such as disk status, network information, and system booting. See the following table for a detailed description of each item: See the following table for a detailed description of each item: System Logs Item...

  • Page 27: System Management

    System Management The System Management menu gives you a wealth of settings that you can use to configure your N4200’s system administration functions. You can set up system time, system notifications, and even upgrade firmware from this menu. Time: Setting system time From the time menu, choose the Time item and the Time screen appears.

  • Page 28: Firmware Upgrade

    Notification Configuration Item Description Beep Notification Enable or disable the system beeper that beeps when a problem occurs. Email Notification Enable or disable email notifications of system problems. SMTP Server Specifies the hostname/IP address of the SMTP server. Port Specifies the port to send outgoing notification emails. Auth Type Select the SMTP Server account authentication type.

  • Page 29: Ups Setting

    • The beeper only beeps if it is enabled in the System Notification menu. NOTE • Check Thecus website for the latest firmware release and release notes. • Downgrading firmware is not permitted. Do not turns off the system during the firmware upgrade process.

  • Page 30: Schedule Power On/Off

    See the following table for a detailed description of each item. UPS Setting Item Description UPS Monitoring Enable or disable UPS monitoring. Manufacturer Choose the UPS manufacturer from the dropdowns. Model Choose the UPS model number from the dropdowns. Battery Status Current status of the UPS battery Power Current status of the power being supplied to the...

  • Page 31: Wake-Up On Lan (Wol)

    Example - Monday: On: 8:00; Off: 16:00 System will turn on at 8:00 AM on Monday, and off at 16:00 on Monday. System will turn on for the rest of the week. If you choose an on time, but do not assign an off time, the system will turn on and remain on until a scheduled off time is reached, or if the unit is shutdown manually.

  • Page 32: Utility

    From the menu, choose the SNMP item, and the SNMP Support screen appears. From here, you can Enable or Disable. Utility ˙ Administrator password From the menu, choose the Administrator Password item and the Change Administrator Password screen appears. Enter a new password in the New Password box and confirm your new password in the Confirm Password box.

  • Page 33: Config Mgmt

    Confirm Password Type the new password again to confirm. Apply Press this to save your changes. ˙ Config Mgmt From the menu, choose the Config Mgmt item and the System Configuration Download/Upload screen appears. From here, you can download or upload stored system configurations.
  • Page 34 ˙ Reboot & Shutdown From the menu, choose Reboot & Shutdown item, and the Shutdown/Reboot System screen appears. Press Reboot to restart the system or Shutdown to turn the system off. ˙ File System check The File System Check allows you to perform a check on the integrity of your disks’ file system.
  • Page 35 Once the system has rebooted, you will be returned to the File System Check prompt. There you will see the available RAID volumes to run the file system check on except ZFS volume, ZFS has no need to perform file system check. Check the desired RAID volumes and click Next to proceed with the file system check.

  • Page 36: System Network

    The system must be re booted before the N4200 can function normally NOTE after file system check co mplete. System Network Use the System Network menu to make network configuration settings as well as service support settings. WAN Configuration From the System Network menu, choose WAN, and the WAN Configuration screen appears.
  • Page 37 WAN Configuration Item Description Host name Host name that identifies the N4200 on the network. Domain name Specifies the domain name of the N4200. To set a server name for NetBIOS computer. WINS Server MAC Address MAC address of the network interface. Jumbo Frame Support Enable or disable Jumbo Frame Support of the WAN interface on your N4200.

  • Page 38: Lan

    WARNING Most Fast Ethernet (10/100) Switches/Routers do not support Jumbo Frame and you will not be able to connect to your N4200 after Jumbo Frame is turned on. If this happens, turn off the N4200. Then, insert USB disk with factory reset utility included and power on the N4200. Till the system power on complete then it will bring your system settings back to factory default.

  • Page 39: Samba / Cifs

    The IP Segment of WAN and LAN should not overlap. NOTE The IP address of the LAN interface should not be in the range of the Start WARNING IP address and End IP address. Samba / CIFS There are 4 options is currently allow Admin to Enable/Disable to operate N4200 associated with Samba / CIFS protocol.

  • Page 40: Samba Anonymous Login Authentication

    Samba Anonymous Login Authentication To enable this option, no matter there is share folder has been created in public access. The user account and password is needed from system to access under SMB/CIFS protocol. On the other hand, no more anonymous login is allowed. •...

  • Page 41: Ftp

    A description of each item follows: NFS Server Setting Item Description Enable or Disable NFS support. Apply Click Apply to save your changes. N4200 can act as a FTP server, enabling users to download and upload files with their favorite FTP programs. From the System Network menu, choose the FTP item, and the FTP screen appears.

  • Page 42: Media Server

    Security FTP Enable or disable Security FTP, be sure the client FTP software has also security FTP setting enabled. Port Specifies the port number of an incoming connection on a non-standard port. FTP ENCODE If your FTP client or operating system does not support Unicode (e.g.

  • Page 43: Share Media Folders

    A description of each field follows: Media Manager Settings Item Description Media Server Enable or disable the Media Server service. Shared Media Folders Select the folder(s) that contains media files to be shared. Rescan Click the Rescan button to have the N4200 for new contents in the selected media folder.

  • Page 44: Http/ Web Disk

    4. Setup the DMA (These steps will be different if you use a different DMA) a. From the Server List screen, select “N4200: Media Server” as the server. b. Go to My Media c. Click on the Up/Down Arrow buttons to select Music Jukebox, Photo Albums, or Video Clips d.

  • Page 45: Upnp

    From the System Network menu, choose the Nsync Target item, and the Nsync Setting screen appears. Enable or Disable your Nsync Target Server. Press Apply to confirm your settings. Once Nsync Target has been enabled, the other Thecus NAS product is able to operate remote replication to this NAS system. Bonjour Setting Bonjour, is Apple Inc.'s trade name for its implementation of Zeroconf, a service...

  • Page 46: Storage Management

    through Bonjour zero-configuration networking with a complete description of the protocols and technologies used to create Bonjour enabled applications and devices. Storage Management The Storage menu displays the status of storage devices installed in the N4200, and includes storage configuration options such as RAID and disk settings, folder configuration, space allocation and ISO Mount.

  • Page 47: S.m.a.r.t. Information

    Bad Block scan Yes to start scan Bad Block. Total Capacity Shows the total SATA hard disk capacity. Disk Power The administrator can set the disk to power down after a period of Management inactivity. When the Status shows Warning, it usually means there are bad sectors on the NOTE hard disk.

  • Page 48: Bad Block Scan

    Current Pending Sector Current count of unstable sectors (waiting for remapping). The raw value of this attribute indicates the total number of sectors waiting for remapping. Later, when some of these sectors are read successfully, the value is decreased. If errors still occur when reading sectors, the hard drive will try to restore the data, transfer it to the reserved disk area (spare area), and mark this sector as remapped.

  • Page 49: Create A Raid

    RAID Information Item Description Master RAID The RAID volume currently designated as the Master RAID volume. ID of the current RAID volume. NOTE: All RAID IDs must be unique. RAID Level Shows the current RAID configuration. Status Indicates status of the RAID. Can read either Healthy, Degraded, or Damaged.
  • Page 50 2. On the RAID Configuration screen, set the RAID storage space as JBOD, RAID 0, RAID 1, RAID 5, RAID 6, or RAID 10 — see Appendix C: RAID Basics for a detailed description of each. 3. Specify a RAID ID. 4.

  • Page 51: Raid Level

    Building a RAID volume may take time, depending on the size of hard drives NOTE and RAID mode. In gene ral, while the RAID volume building process is up to “RAID Building” then th e data volume is capable to be accessed. Creating RAID destroys a ll data in the current RAID volume.

  • Page 52: Edit Raid

    RAID 5 requires a minimum of 3 disks. RAID 5 can sustain one failed disk. RAID 6 Two independent parity computations must be used in order to provide protection against double disk failure. Two different algorithms are employed to achieve this purpose. RAID 6 requires a minimum of 4 disks.

  • Page 53: Remove Raid

    Remove RAID Click to remove the RAID volume. All user data and iSCSI has been created in selected RAID volume will be removed. To remove a RAID volume, follow the steps below: 1. On the RAID List screen, select the RAID volume by clicking on its radio button, and click RAID Information to open the RAID Configuration screen.

  • Page 54: Expanding A Raid

    Remove RAID destroys a ll data in the current RAID volume. The data is WARNING unrecoverable. Expanding a RAID To expand a RAID 1, RAID 5, RAID 6, or RAID 10 volume, follow the steps below: 1. Replace one of the hard drives in the RAID volume and allow it to automatically rebuild.

  • Page 55: Migrating A Raid

    Migrating a RAID Once a RAID volume has been created, you may want to move it to other physical drives or change the RAID array all together. To migrate a RAID 0, RAID 1, RAID 5 or RAID 6 volume, follow the steps below: 1.
  • Page 56 NOTE Migrating a RAID volume could take several hours to complete With RAID level migration function, it has two different type “On line” and “Off line” alone with limitation as listed below. 1. During RAID level migration, it is not allowed reboot or shutdown system. 2.
  • Page 57 Below is a table listing of possible RAID migration schemes: From RAID 0 RAID 5 RAID 6 [OFFLINE] [OFFLINE] RAID [RAID 0] HDDx2 to [RAID 0] HDDx3 [RAID 0] HDDx2 to [RAID 5] HDDx3 [RAID 0] HDDx2 to [RAID 0] HDDx4 [RAID 0] HDDx2 to [RAID 5] HDDx4 [RAID 0] HDDx2 to [RAID 0] HDDx5 [RAID 0] HDDx2 to [RAID 5] HDDx5...

  • Page 58: Space Allocation

    [ONLINE] RAID [RAID 6] HDDx4 to [RAID 6] HDDx5 [RAID 6] HDDx4 to [RAID 6] HDDx6 [RAID 6] HDDx4 to [RAID 6] HDDx7 [RAID 6] HDDx5 to [RAID 6] HDDx6 [RAID 6] HDDx5 to [RAID 6] HDDx7 [RAID 6] HDDx6 to [RAID 6] HDDx7 Space Allocation You may specify the space allocated for iSCSI volumes.

  • Page 59: Allocating Space For Iscsi Volume

    Allocating Space for iSCSI Volume To allocate space for an iSCSI volume on the current RAID volume, follow the steps below: 1. Under the Volume Allocation List, click iSCSI Target. The Create iSCSI Volume screen appears. Create iSCSI Volume Item Description RAID ID ID of current RAID volume.

  • Page 60: Modify Iscsi Volume

    Month Select the current month from the dropdown. Username Enter a username. Password Enter a password. Password Confirm Reenter the chosen password 2. Designate the percentage to be allocated from the Allocation drag bar. 3. Enable the iSCSI Target Service by selecting Enable. 4.

  • Page 61: Delete Volume

    2. Modify your setting. Press ok to change. Delete Volume To delete volume on the current RAID volume, follow the steps below: 1. Under the Volume Allocation List, click Delete. The Space Allocation screen appears.

  • Page 62: Advance Option

    2. Press YES. All data in the volume will be removed. Advance Option There are 2 options is currently allow Admin to Enable/Disable to operate N4200 associated with iSCSI setting. The details as listed in following screenshot. With the option changed, it will need to reboot system to activate. iSCSI Block Size Select the block size with 4K while the iSCSI volume size is over 2TB.

  • Page 63: Adding Folders

    Adding Folders On the Folder screen, press the Add button and the Add Folder screen appears. This screen allows you to add a folder. After entering the information, press Apply to create new folder.

  • Page 64: Modify Folders

    Add Folder Item Description RAID ID RAID volume where the new folder will reside. Folder Name Enter the name of the folder. Description Provide a description the folder. Browseable Enable or disable users from browsing the folder contents. If Yes is selected, then the share folder will be browseable.

  • Page 65: Remove Folders

    Description Provide a description the folder. Browseable Enable or disable users from browsing the folder contents. This setting will only apply while access via SMB/CIFS and web disk. Public Admit or deny public access to this folder. Share Limit Enter the maximum size of the folder. The folder will not grow beyond this limit.
  • Page 66 NFS Share Item Description Hostname Enter the name or IP address of the host Privilege Host has either read only or writeable access to the folder. Guest System Support There are two selections available: • Unix / Linux System • AIX (Allow source port >...

  • Page 67: Snapshot

    Snapshot The N4200 is capable for 16 snapshot version control. To have snapshot to work on, the file system creation for RAID volume has to be “ZFS”. Snap (Snapshot configuration) If added folder has located in the RAID volume with “ZFS” file system , then the folder management screen with “Snap”...

  • Page 68: Folder And Sub-Folders Access Control List (Acl)

    These taken snapshot is only accessible though CIFS/SMB by manually type \\NAS IP address\snapshot and invisible from normal access. Also, the taken snapshot version is read only can not be deleted under CIFS/SMB access but only click the “Del” button showing on the screen shot above. Folder and sub-folders Access Control List (ACL) On the Folder screen, press the ACL button, and the ACL setting screen appear This screen allows you to configure access to the specific folder and sub-folders for...
  • Page 69 2. With the group or user selected, press one of the buttons from the three access level columns at the top. The group or user t hen appears in that column and has that level of access to the folder. 3.

  • Page 70: Stackable Nas

    The system will list up to 1,000 users from the chosen category. To narrow NOTE your search, ente r a search term in the blank provided. Stackable NAS The N4200’s capacity can be expanded even further using the stackable function. With it, users can expand the capacity of their network storage systems up to 5 other stack target volumes which are located in different systems.
  • Page 71 Next, input the target IP address of the stackable device and click the Discovery button. The system will list available target volumes from the inputted IP address. Once IP with volume have been set, you may need to input a valid user name and password to validate your access rights.
  • Page 72 From the figure above, the Export share name is “pmmeeting”. The figures below show the result before and after via Microsoft Network Access with settings have been completed. No Stack Target Stack target with export share name “pmmeeting” The Browseable setting will be same method of setting for system share folder. It designates whether or not this folder will be visible through web disk.
  • Page 73 The Public setting will be set same as what the setting for the system share folder associated with the ACL permission setup. If Public is set to Yes, all users will be able to access it, and ACL button will be grayed out. If Public is set to No, the ACL button will be available on the Stack Target List window.
  • Page 74 With this newly attached stack target device, you will see the information displayed and also several options you can choose. In general, if attached stack target device has been used by another N5200PRO/1U4500/N5500/N4200/N4200/N8800 as stack target volume, then the Format item will be display and system will recognize it straight away and display its capacity.

  • Page 75: Iso Mount

    To attempt to reconnect the stack target, click Reconnect. ISO Mount The ISO Mount feature is very useful tool from Thecus products. With it, users can mount an ISO file and having export name to display all details from mounted ISO...
  • Page 76 From the main menu, the ISO Mount feature is located under “Storage”. Please refer the figure below for reference. Select on the ISO mount function and you will have the screen shot appear as following. A. Add a ISO file From the figure above, select ISO file from drop down share list.
  • Page 77 To mount new ISO file, select from listed ISO file and input desired mounting name into “Mount as:” field. Click “ADD” with confirmation to complete mounting ISO file. Or without “Mount as” ISO file export name input, system will automatic to give the export name by ISO file name.

  • Page 78: User And Group Authentication

    The mounted ISO file will be located same share folder with name giving. Please refer the screen shot below. ISO file “image” has mounted as folder “Image” you could see. The ISO file “Thecus 01” without assign mounting name, system automatically has folder “Thecus 01”...
  • Page 79 support feature; the N4200 will connect with the ADS/NT server and get all the information of the domain users and groups automatically. From the Accounts menu, choose Authentication item and the ADS/NT Support screen appears. You can to change any of these items and press Apply to confirm your settings. A description of each item follows: ADS/NT Support Item...

  • Page 80: Local User Configuration

    To join an AD domain, you can refer the figure and use the example below to configure the N4200 for associated filed input: AD Domain Example Item Information Work Group / Domain domain Name ADS Support Enable ADS Server Name Computer1 ADS/NT Realm Domain.local...

  • Page 81: Add Users

    Local User Configuration Item Description Press the Add button to add a user to the list of local users. Edit Press the Edit button to modify a local user. Remove Press the Remove button to delete a selected user from the system.

  • Page 82: Edit Users

    NOTE All users are automatically assigned to the ‘users’ group. Edit Users 1. Select an existing user from the Local User Configuration screen. 2. Click on the Edit button, and Local User Setting screen appears. 3. From here, you can enter a new password and re-enter to confirm, or use the <<...

  • Page 83: Remove Users

    Remove Users 1. Select an existing user from the Local User Configuration screen. 2. Click on Remove button and the user is deleted from the system. Local Group Configuration From the Accounts menu, choose the Group item, and the Local Group Configuration screen appears.

  • Page 84: Add Groups

    Add Groups 1. On the Local Group Configuration screen, click on the Add button. 2. The Local Group Setting screen appears. 3. Enter a Group Name. 4. Enter a Group ID number. If left blank, the system will automatically assign one.

  • Page 85: Remove Groups

    Remove Groups 1. On the Local Group Configuration screen, select a group name from the list. 2. Press Remove to delete the group from the system. Batch Create Users and Groups The N4200 can also add users and groups in batch mode. This enables you to conveniently add numerous users and groups automatically by importing a simple comma-separated plain text (*.txt) file.

  • Page 86: Application Server

    Application Server The N4200 supports printer server, and Tunes server. The integrated Print Server allows you to share a single USB printer will all users on the network. The N4200 provides activating the iTunes Server on the device. You will be able to play music files on this device with your iTunes client software directly.

  • Page 87: Windows Xp Sp2

    Printer”. Select Yes and all your print jobs will be submitted to this printer by default. Click Next. 9. Click Finish. • Not all USB printe rs are supported. Please check Thecus website for a list of NOTE supported printers. • Note that if a multi...

  • Page 88: Windows Vista

    Windows Vista To set up the Printer Server in Windows Vista, follow the steps below: 1. Open Printer Folder from the Control Panel. 2. Click the right mouse button in anywhere on the Printers folder and then select Add Printer. 3.
  • Page 89 4. Select The printer that I want isn’t listed. You can press The printer that I want isn’t listed to go into next page without waiting for Searching for available printers to finish. 5. Click Select a shared printer by name. Type http://<Thecus_NAS>:631/printers/usb-printer in the box, where <Thecus_NAS_IP>...
  • Page 90 If your printer model is not listed, please contact your printer manufacturer for help. 7. Windows will attempt to connect to the printer. 8. You can choose to set this printer as the default printer by checking the Set as the default printer box. Click Next to continue. 9.

  • Page 91: Itunes® Server

    From the Module Management menu, choose the Module Installation item and the Module Management screen appears. From here, you can install separate software modules to extend the functionality of your N4200. System Module The system module is officially provided by Thecus for new features added.

  • Page 92: User Module

    User Module The user module is reserved for Thecus fans to build up 3 party functions in the future. Backup There are a number of ways to back up data with the N4200. Nsync You can backup a share folder to another N4200 (Nsync Target) or any FTP server for safe keeping as long as you have appropriate access right on that target.
  • Page 93 Add Nsync Task Item Description Task Name The name of your Nsync task. Target Server Select whether the target is a Thecus Product (e.g. N4200) or FTP Manufacturer server. Nsync Mode Synchronize mode or Incremental mode . Target Server IP The IP address of your target server.

  • Page 94: Setting Up An Nsync Target On An Nsync Device

    Designating N4200 as an Nsync Target The N4200 can act as an Nsync server, enabling another Nsync-equipped Thecus NAS at a remote location backup their files to this N4200. From the System Network menu, choose the Nsync Target item, and the Nsync Target Server screen appears.

  • Page 95: Thecus Backup Utility

    Thecus Backup Utility The Thecus Backup Utility is on your Installation CD. When you click on the CD, the Backup Utility will be installed under Program Groups > Thecus > Thecus Backup Utility. If it is not installed, you can copy the file (Thecus Backup Utility.exe) to a convenient location on your hard disk and double click to execute...

  • Page 96: Apple Os X Backup Utilities

    2. When the Welcome to Microsoft Windows XP screen appears, click Perform Additional Tasks. 3. Click Browse this CD. 4. In Windows Explorer, navigate to ValueAdd > Msft > Ntbackup. 5. Double-click Ntbackup.msi to install the backup utility. Once installed, you can use the Windows Backup Utility by following the steps below: 1.

  • Page 97: Chapter 5: Using The N4200

    Chapter 5: Using the N4200 Overview Once the N4200 is setup and operating, users on the network may manage all varieties of digital music, photos, or files by simply using their web browsers. To manage your personal files or access public files on the N4200, just enter its IP address into your browser (default IP address is http://192.168.1.100), and you ill be taken to the N4200 Login page.
  • Page 98 6. To create a new folder within the current folder, press the New folder button. When the screen appears enter a name for the folder. Press OK to create the folder. 7. To upload a file from your computer to the current folder, press the New file (upload) button.

  • Page 99: Photo Server

    (Admin) Change password and confirm new password. (logout) To logout of the web disk interface. Show the files and folders in the directory. Search files in the directory. (You can only input some word string.) Name Displays the names of folders and files. Size Shows the size of folders and files.

  • Page 100: Windows Xp Publishing Wizard

    Windows XP Publishing Wizard There are many ways for a local user to upload pictures into their photo album. Users of Windows XP can upload their pictures using the Windows XP Publishing Wizard. 1. Click on the XP Publishing Wizard icon on top right corner. 2.
  • Page 101 4. Once the register file is installed, use the Windows file manager to browse the folder that contains the picture you want to publish. On the left pane, there will be an icon labeled “Publish this folder to the Web”. 5.
  • Page 102 7. Your PC will start to connect to the Photo Web Server. 8. Select N4200 Photo Gallery Wizard to publish your pictures to the N4200. 9. Login into the N4200 with your local user name and password. 10. Create your album by entering an album name and clicking on the Create Album button.
  • Page 103 11. Select the album you want to upload your pictures to. 12. Confirm the target album. 13. Windows will show you that the picture upload is in progress.
  • Page 104 14. When the upload is finished, the Wizard will ask you whether if you want to go to the website. Click Finish to go to your Photo Web Server. 15. Click on the user’s icon to go to that user’s album. 16.

  • Page 105: Managing Albums And Photos

    17. Finished! You will see the pictures just selected in the album. Managing Albums and Photos Icon Function Description Make Cover Make selected photo your cover picture. Back Return to the previous screen. Add a new album or photos. Modify Edit the name and description of the selected album or photo.

  • Page 106: Creating Albums

    Creating Albums To create a photo album, follow the steps below: 1. Click the Add button to create a new album. 2. Enter a name for the album, and enter a description if you wish. Then, click on the Create Album button. Password Protecting Albums If you would like to put a password on a particular album, follow these steps: 1.

  • Page 107: Mapping A Client Pc To The N4200

    Slide Shows Slide shows are a great way to enjoy pictures stored on your N4200. You can click on the Start Slide Show icon on the top right hand corner to start the slide show. To stop the slide show, click on the Stop Slide Show icon on the top right hand corner.

  • Page 108: Mapping The N4200 As An Iscsi Drive

    1. Choose Go > Connect to Server… 2. Enter the network address for the server in the Server Address text box. When connecting using SMB/CIFS protocol, type: smb://192.168.1.100/Folder1 When connecting using AFP protocol, type: afp://192.168.1.100/Folder1 Click Connect. 3. When MAC OS X is trying to connect N4200, it will ask for a User Name and Password which has access to the folder.
  • Page 109 3. You will now install the iSCSI Initiator using the Setup Wizard. Click Next to continue. 4. Leave the default selections and click Next. 5. Read the license agreement. To continue with the installation, click I Agree and then click Next. 6.
  • Page 110 Initiator properties window will appear. elect the Discovery tab. Under Target Portals, click Add. . Enter the IP address of the N420 . Click OK. 10. On the iSCSI Initiator Properties window, select the Targets tab. With the iSCSI target highlighted, click Log On. The Log On to Target dialogue...
  • Page 111 11. If you have not enabled CHAP, click OK to continue. If you have enabled CHAP, click Advanced. Under Advanced Settings, check the CHAP login information checkbox and enter your username and password. Click OK. 12. Right click My Computer on the desktop and select Manage.

  • Page 112: Windows Vista

    13. Click on Disk Management and you will see a new hard disk listed. 4. Initialize the new hard disk and you will then be able to use the iSCSI target as a local drive. Windows Vista ecause Windows Vista has the Microsoft iSCSI Initiator pre-installed, you will not ave to install this piece of software.

  • Page 113: Chapter 6: Tips And Tricks

    N4200. Setting up remote administrat ion is a three-part process, and will require the following equipment: Thecus N4200 NAS device • able / DSL Router with Dynamic DNS support • Home PC •...

  • Page 114: Part I - Setup A Dyndns Account

    4. Test the HTTPS connection from another computer on the Intern a. From a remote computer, open your browser and en https://www.N4200.dyndns.or b. You should see the login page of N420 ewall Software Configuration If you are using a software firewall (i.e. Norton In...

  • Page 115: Replacing Damaged Hard Drives

    Replacing Damaged Hard Drives If you are using RAID 1, RAID 5, or RAID 6 you can easily replace a damaged hard drive in the Thecus N4200 while keeping yo ur data secure with the system’s automatic data recovery. ard Drive Damage...

  • Page 116: Chapter 7: Troubleshooting

    IP address by either looking directly onto the N4200’s OLED anel, or by using the setup wizard to retrieve the IP of your N4200. 1. Start the Setup Wizard, and it will automatically detect all Thecus IP storage products on your network.

  • Page 117: Dual Dom Supports For Dual Protection

    4. Set the Date, Time, and Time Zone. 5. Click Apply. In addition, if the N4200 is able to access the Internet and you want to keep the NTP Server clock.isc.org by default, please make sure th e DNS Server is correctly entered, thereby allowing the NTP Server name to correctly resolve.

  • Page 118: Chapter 8: Firmware Revise

    Chapter 8: Firmware Revise RAID Expansion for iSCSI Target Volume First, the iSCSI volume is now able to expand its capacity from unused space. From the volume list, simply select the iSCSI volume you like to expand and click the Expand button: You will then see the dialog box displayed below.
  • Page 119 the Encryption option needs to be enabled while the RAID is created and followed by password input for identification. Also, an external writable USB disk plugged into any USB port on the system is required to save the password you have entered while the RAID volume is being created.

  • Page 120: Iscsi Thin-Provisioning

    RAID volumes with encryption enabled will be displayed with a key lock symbol next to volume ID name. iSCSI Thin-Provisioning An advanced thin-provisioning for iSCSI feature is available in this firmware release. With this function, the iSCSI capacity can be more flexible and more efficiently serve more users.
  • Page 121 Next, setup the physical capacity for iSCSI thin-provision volume by dragging the Allocation bar to the desired size. After the size has been determined, click OK to confirm. Now you will see the iSCSI thin-provisioning volume is available from the list. Please refer to the screenshot below.
  • Page 122 4. The limit is 5 iSCSI target volumes under thin-provisioning or a virtual size of 16000GB. iSCSI Thin-provision physical size starts with 333.8GB The virtual capacity is limited to 16000GB The screen shot for iSCSI target volume creation under thin-provisioning; the physical capacity 333.8GB.
  • Page 123 iSCSI target volume creation. The maximum virtual size is 14300GB (16000GB – 1700GB(1 iSCSI target volume)). This screenshot lists iSCSI target volumes created under thin-provisioning. The 2 iSCSI target volume under thin-provisioning has been created with a capacity of 14300GB. This message appears if there is no more room for new iSCSI target creation.

  • Page 124: Iscsi Lun Id

    Each RAID volume can only create one iSCSI thin-provision volume. NOTE Each thin-provision volume can only create 5 iSCSI target volumes. The notification will send out while the physical size of iSCSI thin-provision capacity has used up to 90%. iSCSI LUN ID When iSCSI target volume has been created, there is a default LUN ID of 0 in previous firmware versions which was un-configurable.

  • Page 125: Chapter 9: Firmware Revise

    Chapter 9: Firmware Revise Updated Login User Interface There is a brand new design for the admin login UI. The previous chapters have screenshots of the original user interface. NOTE Please note that all changes are visual only. There are no functional changes.

  • Page 126: Disclaimer Page Added

    Disclaimer Page Added The following disclaimer page has been added to this firmware release. Please click the check box if you do not want to have this page displayed during the next login.

  • Page 127: Updated Main User Interface

    This on-line register service can periodically update the user when new firmware and software modules are released by Thecus. To enable this service, simply check the “Enable” check box. By enabling this service, the items in bold will be sent to Thecus via the Internet.

  • Page 128: Added Rsync Setting Under Nsync Target

    Added Rsync Setting under Nsync Target The Thecus Nsync feature has added a third way to use Rsync to replicate data between two systems. For the target side to allow source cross data, the Rsync target server needs to first select “Enable” and then assign a username and password for authentication.

  • Page 129: Added 2 Nd Gateway For Clients Of Dhcp Server Route

    Thecus NAS as a DHCP server to have another route to balance traffic bandwidth. If the IP sharing mode setting is set to “Enable” under WAN port, then this NOTE gateway cannot be configured.

  • Page 130: Added Dual Dom For Auto Repair

    Added Dual DOM for Auto Repair The unique Dual DOM feature can now perform “Auto Repair”. The Thecus NAS will backup up to five versions of the system configuration either by the default timing of 1:00am every day automatically or as scheduled by the user.

  • Page 131: Chapter 10: Version 3.01.00 Firmware Updates

    Chapter 10: Version 3.01.00 Firmware Updates What’s New There are additional features implemented into the new 3.01.00 version firmware. Updated Login User Interface The design of the admin login UI has been completely updated. The previous chapters have screenshots of the original user interface. NOTE Please note that all changes are visual only.
  • Page 132 Administrators can add or remove favorite functions to My Favorites by right clicking the mouse on the menu tree. The other way administrators can add favorite functions is by clicking the “Add Favorite” icon in each function screen. Please refer figure below in red circuit icon.

  • Page 133: Added Additional Mode Support For Link Aggregation

    Added Additional Mode Support for Link Aggregation Link Aggregation now has six supported modes. The administrator can choose the most suitable mode to fit the network environment. You may choose from the following options: Disable Load Balance Failover Balance-XOR 802.3ad Balance-TLB Balance-ALB See the right diagram for details.

  • Page 134: Appendix A: Product Specifications

    Appendix A: Product Specifications Hardware Specifications Item Spec LAN Interface RJ-45x2 : 10/100/1000 BASE-TX Auto MDI/MDI-X OLED indicator HDD1 Power, Activity/Fail HDD2 Power, Activity/Fail HDD3 Power, Activity/Fail HDD4 Power, Activity/Fail WAN (Activity) LAN (Activity) USB Busy USB Failure OLED module 2.8”...

  • Page 135: Software Specifications

    Folder Management Share and sub-folders level permission Public folder Quota Management Share folder quota control Backup Thecus Backup Utility (Windows XP/2000 and MAC OS X) Thecus Nsync System Management Web GUI Multilingual support (English, French, German, Italian, Traditional Chinese, Simplified Chinese,...
  • Page 136 *AD support: Works as a client member in a Microsoft Active Directory domain, allowing the N4200 to utilize the domain users and groups setting for authentication to the system and authorization to the share folders. **For supported USB dongles, please contact sales@thecus.com...

  • Page 137: Appendix B: Customer Support

    Troubleshooting, located in this manual. You can also try to ensure that you are using the latest firmware version for your N4200. Thecus is committed to providing free firmware upgrades to our customers. Our newest firmware is available on our Download Center: http://www.thecus.com/download.php...

  • Page 138: Appendix C: Raid Basics

    RAID volume can regenerate data from the data and parity stored on its other hard disk drives. RAID Levels The Thecus N4200 supports standard RAID levels 0, 1, 5, 6, 10, and JBOD. You choose a RAID level when you create a system volume. The factors for selecting a RAID level are: •...

  • Page 139: Raid 5

    RAID 5 RAID 5 offers data security and it is best suited for networks that perform many small I/O transactions at the same time, as well as applications that require data security such as office automation and online customer service. Use it also for applications with high read requests but low write requests.

  • Page 140: Disk Usage

    Disk Usage When all 7 disks are of the same size, and used in RAID, N4200 disk usage percentage is listed below: RAID Level Percentage Used RAID 0 100% RAID 1 1/n x 100% RAID 5 (n-1)/n x 100% RAID 6 (n-2)/n x 100% RAID 10 JBOD...

  • Page 141: Appendix D: Active Directory Basics

    Appendix D: Active Directory Basics Overview With Windows 2000, Microsoft introduced Active Directory (ADS), which is a large database/information store. Prior to Active Directory the Windows OS could not store additional information in its domain database. Active Directory also solved the problem of locating resources;...

  • Page 142: Appendix E: Ups Compatibility List

    Appendix E: UPS Compatibility List Brand Series Model Notes Ablerex MS-RT ActivePower 1400VA MiniGuard UPS 700 M2501 cable Back-UPS Pro Matrix-UPS Smart-UPS Back-UPS 940-0095A/C cables, 940-0020B/C cables, 940-0023A cable Back-UPS Office 940-0119A cable Masterswitch Not a UPS - 940-0020 cable Back-UPS RS 500 custom non-USB cable Regulator Pro serial...
  • Page 143 Brand Series Model Notes Ares 700 and larger Fideltronik Other Ares models PowerRite MAX Fiskars PowerServer 10, 30 All models with alarm interface MP110/210 Gamatronic MS-T µPS3/1 Gemini UPS625/UPS1000 R3000 XR R5500 XR INELT Monolith 1000LT Infosec iPEL 350, 500, 750, 1000 Ippon (various) UPStation GXT2 contact-closure...
  • Page 144 Brand Series Model Notes Oneac EG/ON Series advanced interface Online P-Series OnLite AQUA 50 Orvaldi various not 400 or 600 SMK-800A ULT-1000 Powercom TrustTrust 425/625 BNT-1000AP Powercom Advice Partner/King Pr750 BNT-2000AP PowerGuard PG-600 PowerKinetics 9001 PowerTech Comp1000 DTR cable power Power Walker Line-Interactive VI1000 3110, 3115, 5119, 5125, 5119 RM, PW5115...
  • Page 145 NOTE • The UPSes marked Blue have been tested and work well • If your UPS is not in the support list, be sure that the UPS supports one of following protocols: o SEC protocol o Generic RUPS model o Generic RUPS 2000 (Megatec M2501 cable) o PhoenixTec protocol o Safenet software...

  • Page 146: Appendix F: Licensing Information

    Source Code Availability Thecus Technology Corp. has exposed the full source code of the GPL licensed software. For more information on how you can obtain our source code, please visit our web site, http://www.thecus.com.

  • Page 147: Cgic License Terms

    CGIC License Terms Basic License CGIC, copyright 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 by Thomas Boutell and Boutell.Com, Inc. Permission is granted to use CGIC in any application, commercial or noncommercial, at no cost. HOWEVER, this copyright paragraph must appear on a "credits" page accessible in the public online and offline documentation of the program.
  • Page 148 they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary.
  • Page 149 these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole.
  • Page 150 4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
  • Page 151 9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Table of Contents
