Kichler
®
Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Arkwet
cUL Certified
for Wet Location
Instruction Manual
TM
Patio
A Kichler

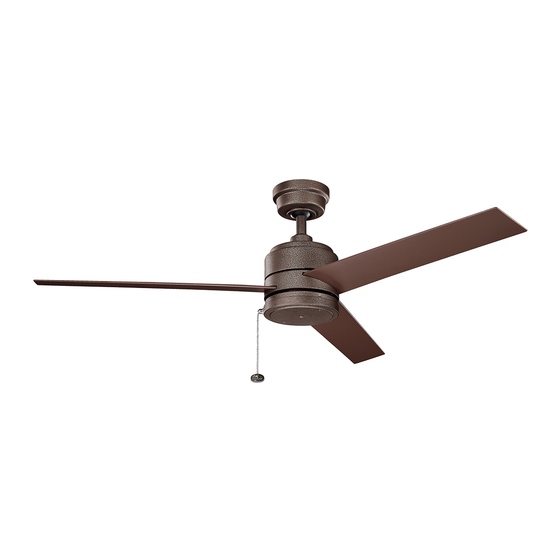

Outdoor/Indoor ceiling fan
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arkwet Patio and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kichler Lighting Arkwet Patio

  • Page 1 Arkwet Patio A Kichler Outdoor/Indoor ceiling fan ® cUL Certified for Wet Location Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2.
  • Page 3: Tools And Materials Required

    Arkwet Patio 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Ceiling mounting bracket Canopy Ball/downrod assembly Coupling cover...
  • Page 4: Mounting Options

    4. MOUNTING OPTIONS 4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure.
  • Page 5: Hanging The Fan

    Arkwet Patio 5. HANGING THE FAN Hanger bracket REMEMBER to turn off the power before you begin. Ceiling To properly install your ceiling fan, follow the canopy steps below. Canopy cover Step 1. Remove the decorative canopy Fig. 5 bottom cover from the canopy by turning the cover counter clockwise.
  • Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Downrod tighten. Now tighten the set screw. (Fig. 9) Canopy Step 9. Lift the motor assembly into position Canopy cover and place the hanger ball into the ceiling mounting bracket.
  • Page 7: Installation Of Safety Support

    Arkwet Patio 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling. Ceiling mounting Attach Step 1. Attach the provided wood screw and bracket safety cable to ceiling joist washers to the ceiling joist next to the with screw and...
  • Page 8: Finishing The Installation

    8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the ceiling outlet box. Outlet box Step 2. Slide the canopy up to the mounting bracket and place one of the key hole slots over Ceiling mounting the mounting screw on the mounting bracket. bracket Rotate the canopy until the screw head locks in Screws...
  • Page 9: Attaching The Fan Blades

    Arkwet Patio 9. ATTACHING THE FAN BLADES Insert the blade through the blade slot in the motor housing. Align the holes in blade and blade bracket, making sure the holes are also aligned and secure with the screws and rubber washers provided. Repeat process with other blades.
  • Page 10: Installing The Switch Housing

    11. INSTALLING THE SWITCH HOUSING 1. While holding the switch housing under your ceiling fan, push the square wire connectors together. One from the fan and one from the switch housing. (Fig.16) NOTE: These connectors are color coded and will ONLY engage when the colored strips are matched (aligned).
  • Page 11 Arkwet Patio 12. OPERATING INSTRUCTIONS Turn the power on and check the operation of your ceiling fan. The pull chain controls the 3 speeds of your ceiling fan. 1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns the motor off.
  • Page 12: Troubleshooting

    13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy. 1. Make sure all motor housing screws are snug. 2.
