Kittery point

Advertisement

Quick Links

Kichler
®
Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday

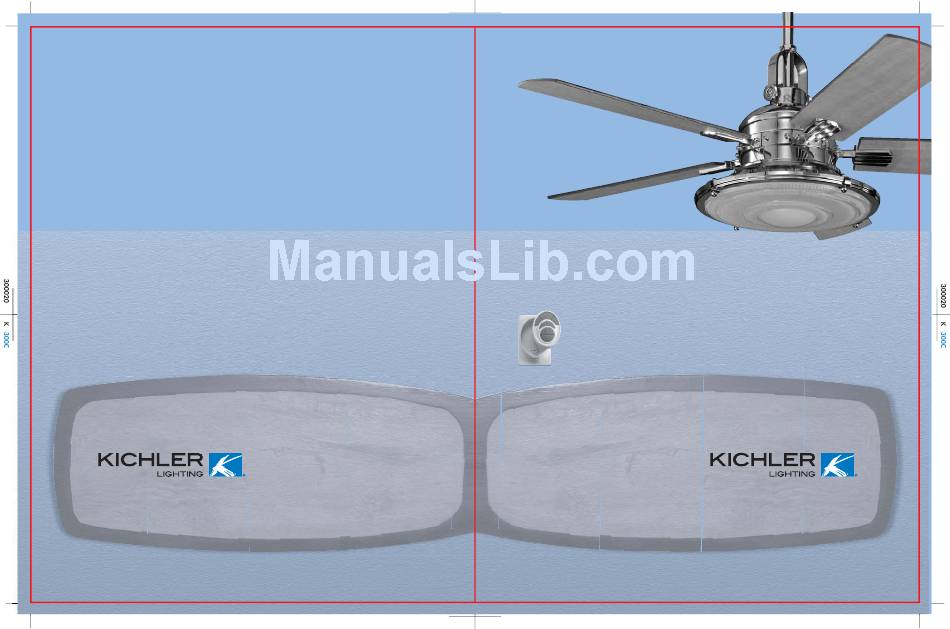

Kittery Point
Designed to coordinate with a popular Kichler Lighting collection.
Includes our new
CoolTouch
Control System
TM
Looks permanent, but goes wherever you go!
U.S. Patent Pending
Instruction Manual
TM
A Kichler
®
Décor
ceiling fan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kittery Point and is the answer not in the manual?

Questions and answers

Summary of Contents for Kichler Lighting Kittery Point

  • Page 1 Kittery Point A Kichler ® Décor ™ ceiling fan Designed to coordinate with a popular Kichler Lighting collection. Includes our new CoolTouch Control System Looks permanent, but goes wherever you go! U.S. Patent Pending Kichler ® Lighting 7711 East Pleasant Valley Road P.O.
  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning.
  • Page 3: Tools And Materials Required

    Kittery Point 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Canopy & Ceiling mounting bracket Ball/downrod assembly (1) &...
  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure.
  • Page 5: Hanging The Fan

    Kittery Point 5. HANGING THE FAN Ceiling mounting bracket REMEMBER to turn off the power before you begin. Canopy To properly install your ceiling fan, follow the steps below. Canopy Step 1. Remove the decorative canopy bottom cover Fig. 5 cover from the canopy by turning the cover counter clockwise.
  • Page 6 Step 8. Slip the coupling cover, canopy cover Hanger ball and canopy onto the downrod. Downrod Thread the hanger ball onto the downrod, Canopy insert the cross pin through the downrod and tighten. Now tighten the set screw. (Fig. 9) Canopy cover Step 9.
  • Page 7: Installation Of Safety Support

    Kittery Point 6. INSTALLATION OF SAFETY SUPPORT (for Canadian Installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install it as follows. Ceiling mounting Attach bracket safety cable to ceiling joist Step 1. Attach the provided wood screw and...
  • Page 8: Finishing The Installation

    Step 2. Motor to Receiver Electrical Connections: (Fig. 14) Outlet box Connect the black wire from the fan to the black White (neutral) wire marked "TO MOTOR L" on the receiver. Black (hot) Connect the white wire from the fan to the white Green or bare copper (ground) wire marked "TO MOTOR N"...
  • Page 9: Attaching The Fan Blades

    Kittery Point 9. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Place a blade on the blade bracket.
  • Page 10: Installing The Light Kit

    11. INSTALLING THE LIGHT KIT Step 1. Loosen the three mounting screws on the inside of the light fixture. Hold the light plate close to the light fixture and connect the white wires from the light plate and the fan. Follow the same procedure with the black wire connectors.
  • Page 11: Installing The Battery

    Kittery Point 13. INSTALLING THE BATTERY Remove the battery compartment cover on the back of the CoolTouch™ Transmitter and insert both batteries provided. Make sure the + sign is facing up. Take care during this procedure NOT TO move the frequency dip switches inside this compartment.
  • Page 12 Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. Warm Weather Operation: Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 22. This allows you to set your air conditioner on a warmer setting without affecting your general comfort.
  • Page 13: Installing The Cooltouch Control System Wall Plate

    Kittery Point 15. INSTALLING THE COOLTOUCH ™ CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Control System Transmitter. You can replace an Wall plate existing wall switch or, install the transmitter on ANY flat surface.
  • Page 14: Troubleshooting

    17. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the batteries are installed properly. Positive (+) side facing out. 4.
