Gun Scanner Series 2

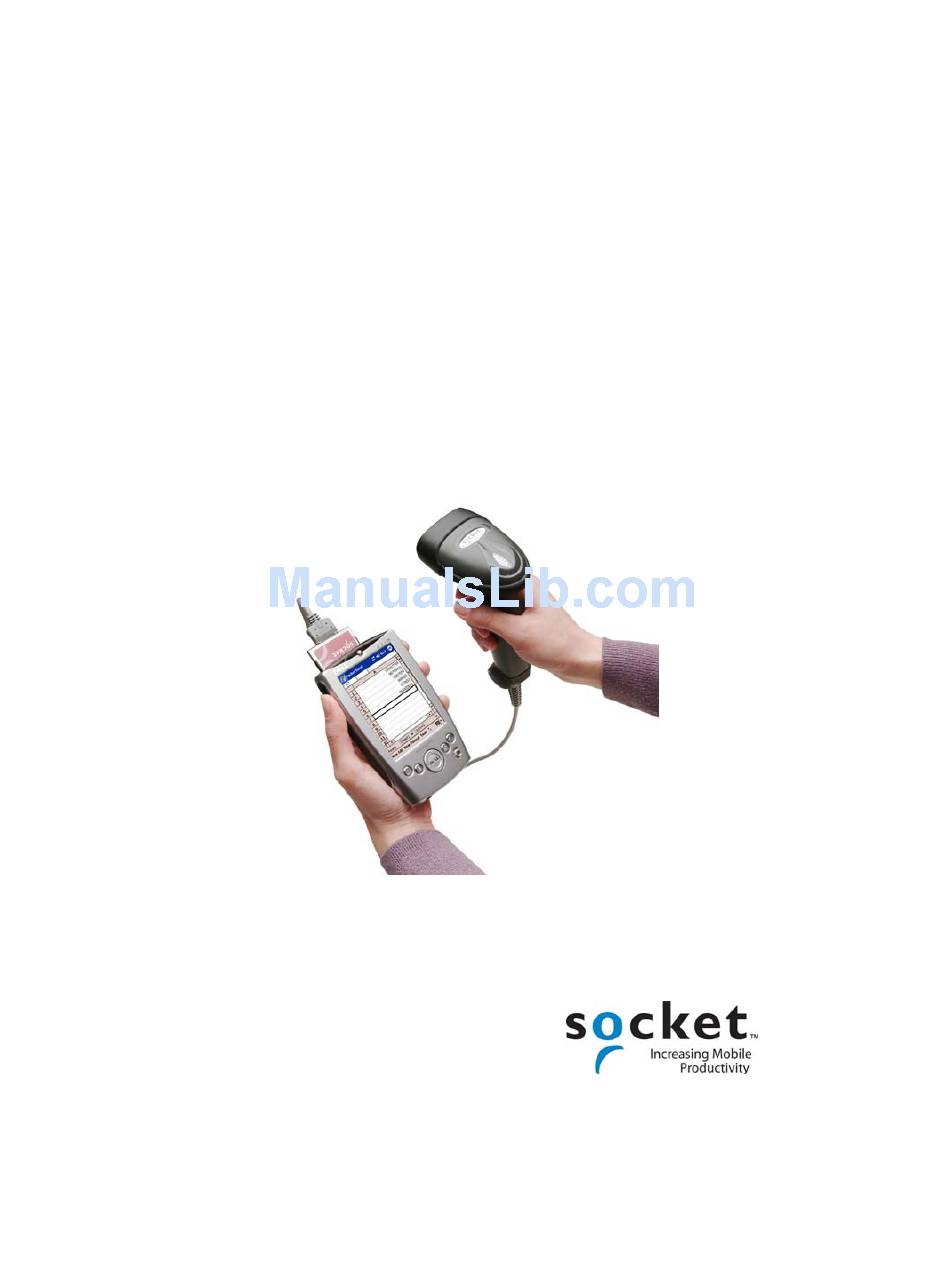

Socket Gun Scanner (GS) 2X (Xtreme Performance) bar
code laser scanning gun with CompactFlash card and cable
for adding data collection functionality to a variety of
Windows-based mobile computers
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Socket Gun Scanner (GS) 2X (Xtreme Performance)

Summary of Contents for Socket Gun Scanner (GS) 2X (Xtreme Performance)

  • Page 1 Gun Scanner Series 2 Socket Gun Scanner (GS) 2X (Xtreme Performance) bar code laser scanning gun with CompactFlash card and cable for adding data collection functionality to a variety of Windows-based mobile computers User’s Guide...
  • Page 2 Copyright Notice Copyright © 2005 Socket Communications, Inc. All rights reserved. Socket, the Socket logo and Battery Friendly are registered trademarks of Socket Communications, Inc. GS 2X and SocketScan are trademarks of Socket Communications, Inc. All other brand and product names are trademarks of their respective holders.

  • Page 3: Table Of Contents

    Table of Contents 1 | INTRODUCTION About the Software Package Contents Scanner Maintenance 2 | SCANNING TIPS Aiming Decode Zone LED Definitions Beeper Definitions 3 | PREPARING FOR SETUP Register Your Product Uninstall Old Scanning Software Attach the Interface Cable 4 | SETUP FOR WINDOWS MOBILE STEP 1: Install the Software STEP 2: Insert the Card into your Device...
  • Page 4 APPENDICES A | SPECIFICATIONS B | BAR CODE LABEL SPECIFICATIONS C | DEFAULT PARAMETERS D | SAMPLE BAR CODES E | NUMERIC BAR CODES F | TROUBLESHOOTING G | TECHNICAL SUPPORT H | GLOSSARY Limited Warranty Limited Software Warranty Regulatory Compliance...

  • Page 5: Introduction

    1 | Introduction The Socket GS 2X gives you the freedom of scanning bar codes anytime anywhere with a variety of Windows-based mobile computers. The system features the S-2208 scanner, which combines excellent scanning performance and advanced ergonomics to provide the best value in a lightweight laser scanner.

  • Page 6: Package Contents

    • A Type I CompactFlash-to-PC Card adapter (optional) Note: In case your scanner ever becomes damaged and you want to send it back to Socket for servicing, KEEP THE ORIGINAL PACKAGING. It is the approved container for shipping. Scanner Maintenance Cleaning the exit window is the only maintenance required.

  • Page 7: Scanning Tips

    2 | Scanning Tips Aiming Do not hold the scanner directly over the bar code, with the laser beam perpendicular to the bar code. Laser light reflecting directly back into the scanner from the bar code is known as specular reflection. This specular reflection can make decoding difficult.

  • Page 8: Decode Zone

    Decode Zone Figure 2-2. S 2208 Decode Zone LED Definitions In addition to beeper sequences, the scanner communicates with the user using a two-color LED display. Table 2-1 defines LED colors that display during scanning. Table 2-1. Standard LED Definitions Meaning No power is applied to the scanner, or the scanner is on and ready to scan.

  • Page 9: Beeper Definitions

    Beeper Definitions The scanner emits different beeper sequences and patterns to indicate status of the scanner power, symbol decode, decode errors, etc. Table 2-2. Standard Beeper Definitions Usage Beeper Sequence Meaning Low/medium/high Power up. beep A bar code symbol was decoded (if decode Short high beep beeper is enabled).

  • Page 10: Preparing For Setup

    • Uninstalling old scanning software • Attaching the interface cable Register Your Product Socket highly recommends that all users register their Socket products. Registered users receive priority for technical support. Register online at: www.socketcom.com/prodreg Product registration is not required to ensure your warranty rights.

  • Page 11: Uninstall Old Scanning Software

    Uninstall Old Scanning Software Delete any bar code scanning software you may already have installed on your mobile computer. Windows Mobile: For Windows Mobile devices, you have two options for uninstalling scanning software. OPTION 1: Uninstall Directly from Device 1. Make sure the bar code scanning software is closed, and remove the Bar Code Laser Scanning Card from your mobile computer.

  • Page 12: Attach The Interface Cable

    Attach the Interface Cable 1. Plug the interface cable modular connector into the cable interface port on the bottom of the scanner handle. 2. Gently tug the cable to ensure the connector is properly secured. 3. Connect the other end of the interface cable to the host (see the specific host chapter for information on host connections).

  • Page 13: Setup For Windows Mobile

    4 | Setup for Windows Mobile This chapter shows how to install, configure, and use the Socket GS 2X on any of the following mobile computers based on Windows Mobile: • Pocket PC 2000/2002/2003/2003SE • HPC 2000 or pen tablet based on Windows Mobile This chapter shows Pocket PC 2002 screens.

  • Page 14: Step 1: Install The Software

    STEP 1: Install the Software Follow these steps for software installation BEFORE inserting the Bar Code Laser Scanning Card into your mobile computer. 1. Use ActiveSync and a serial/Ethernet/USB cable or cradle to make an active connection between the mobile computer and a host PC. 2.
  • Page 15 5. In the File Download screen, select the option that lets you OPEN (or run) the file from its current location. IMPORTANT! YOU MUST OPEN THE FILE! DO NOT SAVE! Note: If the File Download screen reports that the file may be harmful, disregard the warning and open the file.

  • Page 16: Step 2: Insert The Card Into Your Device

    1. If you have not installed the interface cable yet, plug it in now. Refer to Chapter 2, “Preparing for Setup” for instructions. 2. Insert the Socket Bar Code Laser Scanning Card into the appropriate slot of your mobile computer.

  • Page 17: Step 3: Start Socketscan

    STEP 3: Start SocketScan 1. Pocket PC: Go to Start | Programs | SocketScan. Tap on SocketScan. HPC 2000: Tap on the SocketScan icon on your desktop. 2. Whenever SocketScan is running, either of two icons may appear in the menu bar (visible from the Today screen for Pocket PCs).

  • Page 18: Step 4: Scan Data Into A Windows Program

    STEP 4: Scan Data into a Windows Program 1. Make sure SocketScan is open. 2. Start the Windows application that you want to receive the data (e.g., Excel, Notepad, etc.). Make sure a new document or spreadsheet is open. For information about bar code scanning applications, please vist: www.socketcom.com/solutions 3.
  • Page 19 For example, try this Code 39 bar code: Upon successful decode, the scanner beeps and the LED turns green. (For more information on beeper and LED definitions, refer to Table 2-1 and Table 2-2.) 5. After a successful scan, data should appear in your document. For example, after you scan the code above into a Pocket Excel spreadsheet, data should appear in the first cell.

  • Page 20: Optional: Configure Prefix/Suffixes

    OPTIONAL: Configure Prefix/Suffixes The SocketScan Prefix/Suffix applet lets you specify prefix and/or suffix characters to be added automatically to the data you scan. This helps to further eliminate manual data entry. 1. Tap on the SocketScan icon in the menu bar to launch the applet (visible in the Today screen for Pocket PCs).

  • Page 21: Optional: Configure Sounds

    OPTIONAL: Configure Sounds The SocketScan Sounds applet lets you choose any WAV sound file to be played by the host device to indicate a successful scan. Note: Since the S-2208 also beeps this feature may not be needed. WARNING! DO NOT ASSIGN A .WAV FILE ON A POCKET PC 2003/2003SE, OR THE SOFTWARE MAY LOCK UP! 1.

  • Page 22: Optional: Configure Special Symbologies

    OPTIONAL: Configure Special Symbologies You can manually configure the scanner for specific user preferences and scanning options. Refer to Chapter 6, “User Preferences” for instructions. Refer to Appendix C, “Default Parameters,” to see parameter numbers and default settings of each symbology. Also please refer to the S-2208 Advanced Programming Guide, available online in Adobe Acrobat PDF format at: www.socketcom.com/support/support_bar.asp...

  • Page 23: Setup For Windows 98Se/Me/2000/Xp

    5 | Setup for Windows 98SE/Me/2000/XP This chapter explains how to install the GS 2E on a notebook or pen tablet computer running any of the following Windows versions: • Windows 98 Second Edition • Windows Me, 2000 or XP This chapter features screen images from Windows 98SE.

  • Page 24: Step 1: Insert The Installation Cd

    STEP 1: Insert the Installation CD Insert the SocketScan Installation CD into your CD-ROM drive. STEP 2: Insert the Card into Your Computer 1. If you have not installed the interface cable yet, plug it into the scanning gun. Refer to Chapter 2, “Preparing for Setup,” for instructions. 2.

  • Page 25: Step 3: Configure For New Hardware

    STEP 3: Configure for New Hardware 1. Make sure the installation CD is still inside your computer. 2. The first time you insert the Bar Code Laser Scanning Card, a new hardware or device driver wizard will appear. Complete the wizard by following the appropriate instructions for your Windows version: Windows XP •...
  • Page 26 Windows Me • Select Specify the location of the driver. WARNING! FOR WINDOWS Me, DO NOT SELECT Automatic search for a new driver! • In the next screen, select Search for the best driver for your device, and check Removable Media. Click Next>. •...

  • Page 27: Step 4: Install Socketscan Software

    STEP 4: Install SocketScan Software 1. Make sure the SocketScan Installation CD is still inside your computer. 2. Use My Computer or Windows Explorer to access your CD-ROM drive. In the CD, click on SETUP.EXE. 3. Follow the instructions on the host PC screen to install the software for your Windows version.

  • Page 28: Step 5: Scan Data Into A Windows Program

    STEP 5: Scan Data into a Windows Program Follow these steps to use the GS 2X to scan data into a Windows program. For information about bar code scanning applications (available separately), visit: www.socketcom.com/solutions 1. Start SocketScan. Click Start | Programs | SocketScan. 2.
  • Page 29 For example, try this Code 39 bar code: Upon successful decode, the scanner beeps and the LED turns green. (For more information on beeper and LED definitions, refer to Table 2-1 and Table 2-2.) 4. After a successful scan, data should appear in your document. If you scan the code above into an Excel spreadsheet, data should appear in the first cell: CHAPTER 5: SETUP FOR WINDOWS 98SE/ME/2000/XP...

  • Page 30: Optional: Configure Prefix/Suffixes

    OPTIONAL: Configure Prefix/Suffixes The SocketScan applet lets you specify prefix and suffix characters or functions to be added automatically to the data that you scan. 1. Right-click on the SocketScan icon in the task bar at the bottom of your screen. In the pop-up menu, select Settings… 2.

  • Page 31: Optional: Configure Sounds

    OPTIONAL: Configure Sounds The SocketScan applet lets you choose a WAV sound file to be played by the host device to indicate a successful scan. Note: Since the S-2208 also beeps this feature may not be needed. 1. Tap on the SocketScan icon in the task bar.

  • Page 32: Optional: Configure Symbologies

    OPTIONAL: Configure Symbologies You can manually configure the scanner for specific user preferences and scanning options. Refer to Chapter 6, “User Preferences” for instructions. Refer to Appendix C, “Default Parameters,” to see parameter numbers and default settings of each symbology. Also please refer to the S-2208 Advanced Programming Guide, available online in Adobe Acrobat PDF format at: www.socketcom.com/support/support_bar.asp...

  • Page 33: User Preferences

    6 | User Preferences This chapter provides bar codes for programming the Socket S 2208 scanner for the following optional user preferences: • Beeper tone • Beeper volume • Variable length scan line • Laser on time Your scanner is shipped with the settings shown below (also see Appendix C, “Default Parameters,”...

  • Page 34: Hints And Tips On Programming The Scanner

    • Resetting Defaults To return all features to their default values, simply scan the Set All Defaults bar code. WARNING! DO NOT SCAN THE BAR CODES IN THIS CHAPTER WITH ANY SOCKET SCANNER PRODUCT OTHER THAN THE S-2208 GUN.

  • Page 35: User Preferences

    Beeper Tone Set the decode beep frequency (tone) to low, medium or high. *Medium Frequency High Frequency WARNING! DO NOT SCAN THE BAR CODES IN THIS CHAPTER WITH ANY SOCKET SCANNER PRODUCT OTHER THAN THE S-2208 GUN. CHAPTER 6: USER PREFERENCES...

  • Page 36: Beeper Volume

    Set the beeper volume to low, medium or high. Low Volume (change bar code in PDF) Medium Volume (change bar code in PDF) *High Volume WARNING! DO NOT SCAN THE BAR CODES IN THIS CHAPTER WITH ANY SOCKET SCANNER PRODUCT OTHER THAN THE S-2208 GUN.

  • Page 37: Variable Length Scan Line

    Short Length Scan Line Full Length Scan Line WARNING! DO NOT SCAN THE BAR CODES IN THIS CHAPTER WITH ANY SOCKET SCANNER PRODUCT OTHER THAN THE S-2208 GUN. CHAPTER 6: USER PREFERENCES...

  • Page 38: Laser On Time

    3. If you make an error, or wish to change your selection, scan Cancel in Appendix E. Laser On Time WARNING! DO NOT SCAN THE BAR CODES IN THIS CHAPTER WITH ANY SOCKET SCANNER PRODUCT OTHER THAN THE S-2208 GUN. CHAPTER 6: USER PREFERENCES...
  • Page 39 Appendix A Specifications Bar Code Laser Scanning Card Specifications Physical Characteristics: Card Dimensions: 36.4 x 42.8 x 3.3 mm Cable Length: 2 m extended Operating System Support: Windows Mobile for Pocket PC 2000/2002/2003/2003SE and HPC 2000 Windows 98SE, Me, 2000, XP Interface Standards: CompactFlash Type I With adapter: PC Card Type II, JEIDA 4.1...
  • Page 40 15 kV area discharge 8 kV contact discharge Minimum Element Width 5 mil (0.127 mm) Interfaces Supported Socket CompactFlash (CF) Card only Certified Pending to UL1950, CSA C22.2 No.950. Electrical Safety EN60950/IC950 Input Transient Protection IEC 1000-4-(2,3,4,5,6,11) FCC Part 15 Class A, ICES-003 Class A European...

  • Page 41: A | Specifications

    Appendix B Bar Code Label Specifications All bar code symbols/labels should satisfy the appropriate AIM Uniform Symbology Specification. Background Substrate: The bar code symbol should be printed on material (media) that is reflective and has a matte (not glossy) finish. A background diffuse reflectance of at least 70% to 80% is desirable for optimum contrast.

  • Page 42: C | Default Parameters

    Appendix C Default Parameters Table C-1. Standard Default Parameters Table Parameter Type/ Parameter Default Symbology User Preferences Set Default Parameter All Defaults Beeper Tone Medium Beeper Volume High Laser On Time 3.0 Sec Beep After Good Decode Enable UPC/EAN UPC-A Enable UPC-E Enable...
  • Page 43 Parameter Type/ Parameter Default Symbology Code 128 Code 128 Enable UCC/EAN-128 Enable ISBT 128 (non-concatenated) Enable Code 39 Code 39 Enable Trioptic Code 39 Disable Convert Code 39 to Code 32 (Italian Farmer Code) Disable Code 32 Prefix Disable Set Length(s) for Code 39 2 to 55 Code 39 Check Digit Verification Disable...
  • Page 44 Parameter Type/ Parameter Default Symbology Codabar (NW – 7) NOTIS Editing Disable Demote RSS Disable Disable Set Length(s) for MSI 1 to 55 MSI Check Digits Transmit MSI Check Digit Disable MSI Check Digit Algorithm Mod 10/Mod 10 RSS (Reduced Space RSS 14 Disable Symbology)

  • Page 45: D | Sample Bar Codes

    Appendix D Sample Bar Codes Code 39 Interleaved 2 of 5 Code 128 UPC/EAN UPC-A EAN-13, 100 % RSS 14 RSS 14 must be enabled to read the bar codes below. Note: APPENDIX D: SAMPLE BAR CODES | 45...

  • Page 46: E | Numeric Bar Codes

    Appendix E Numeric Bar Codes For parameters requiring specific numeric values, scan the appropriate numeric bar code. 46 | APPENDIX E: NUMERIC BAR CODES...

  • Page 47: F | Troubleshooting

    Symbol LS-2208 gun is attached to the cable, but it will not operate. POSSIBLE REASONS SOLUTION The standard Symbol LS-2208 is not Use only Socket’s S-2208 gun with the supported by Socket’s CF card and Socket GS 2E CF card and cable. cable.

  • Page 48: G | Technical Support

    Appendix G Technical Support If you have trouble installing or using the GS 2E, Socket has two technical support resources to help you. Please note that technical support is available in English only. 1. Socket On-Demand Support (SOS) Socket On-Demand Support is an interactive technical support program that focuses in on your specific problem to provide the answers you need.
  • Page 49 Note: If you have a damaged scanner and want to return it to Socket for servicing or replacement, SEND THE SCANNER BACK IN THE ORIGINAL PACKAGING. It is the approved shipping container.

  • Page 50: H | Glossary

    Appendix H Glossary Aperture The opening in an optical system defined by a lens or baffle that establishes the field of view. Auto Identification Machinery American Standard Code for Information Interchange. A 7 bit-plus- ASCII parity code representing 128 letters, numerals, punctuation marks, and control characters.
  • Page 51 CDRH Center for Devices and Radiological Health. A federal agency responsible for regulating laser product safety. This agency specifies various laser operation classes based on power output during operation. CDRH Class 1 This is the lowest power CDRH laser classification. This class is considered intrinsically safe, even if all laser output were directed into the eye’s pupil.
  • Page 52 Dead Zone An area within a scanner’s field of view, in which specular reflection may prevent a successful decode. This usually occurs when the oscillating laser beam is perpendicular (± 5°) to the target code. Decode To recognize a bar code symbology (e.g., UPC/EAN) and then analyze the content of the specific bar code scanned.
  • Page 53 2DSC Scanner An electronic device used to scan bar code symbols by analyzing a digital image of the bar code. Its components are: 1. CMOS camera – size and resolution of captured image varies 2. Auxiliary lighting Intercharacter The space between two adjacent bar code characters in a discrete code.
  • Page 54 Nominal The exact (or ideal) intended value for a specified parameter. Tolerances are specified as positive and negative deviations from this value. Nominal Size Standard size for a bar code symbol. Most UPC/EAN codes are used over a range of magnifications (e.g., from 0.80 to 2.00 of nominal).
  • Page 55 Specular The mirror-like direct reflection of light from a surface, which can Reflection cause difficulty decoding a bar code. Start/Stop A pattern of bars and spaces that provides the scanner with start and Character stop reading instructions and scanning direction. The start and stop characters are normally to the left and right margins of a horizontal code.

  • Page 56: Limited Warranty

    Incompatibility is not a defect covered by Socket’s warranty. During the warranty period, Socket will, at its option, repair or replace the defective product at no charge when furnished with proof of retail purchase, provided that you deliver the product to Socket or to an authorized Socket Service Center.

  • Page 57: Limited Software Warranty

    90 days from the date of delivery of the SOFTWARE. CUSTOMER REMEDIES. SOCKET’S entire liability and your exclusive remedy shall be, at SOCKET’S option, either (a) return of the price paid or (b) replacement of the SOFTWARE which does not meet SOCKET’S Limited Warranty and which is returned to SOCKET with a copy of your receipt.

  • Page 58: Regulatory Compliance

    This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402 LASER DEVICES: Socket products using lasers comply with US 21CFR1040.10, Subchapter J and IEC825/EN 60 825 (or IEC825-1/EN 60 825-1, depending on date of manufacture). The laser classification is marked on one of the labels on the product.
  • Page 59 PRODUCT DISPOSAL: This product must not be disposed of with municipal waste. It is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
  • Page 60 © Socket Communications, Inc. © Socket Communications, Inc. 8/2005 8/2005 Printed in U.S.A. Printed in U.S.A.
