1D/2D/OCR/DOTCODE READER - D760,D860,S760 AND S860

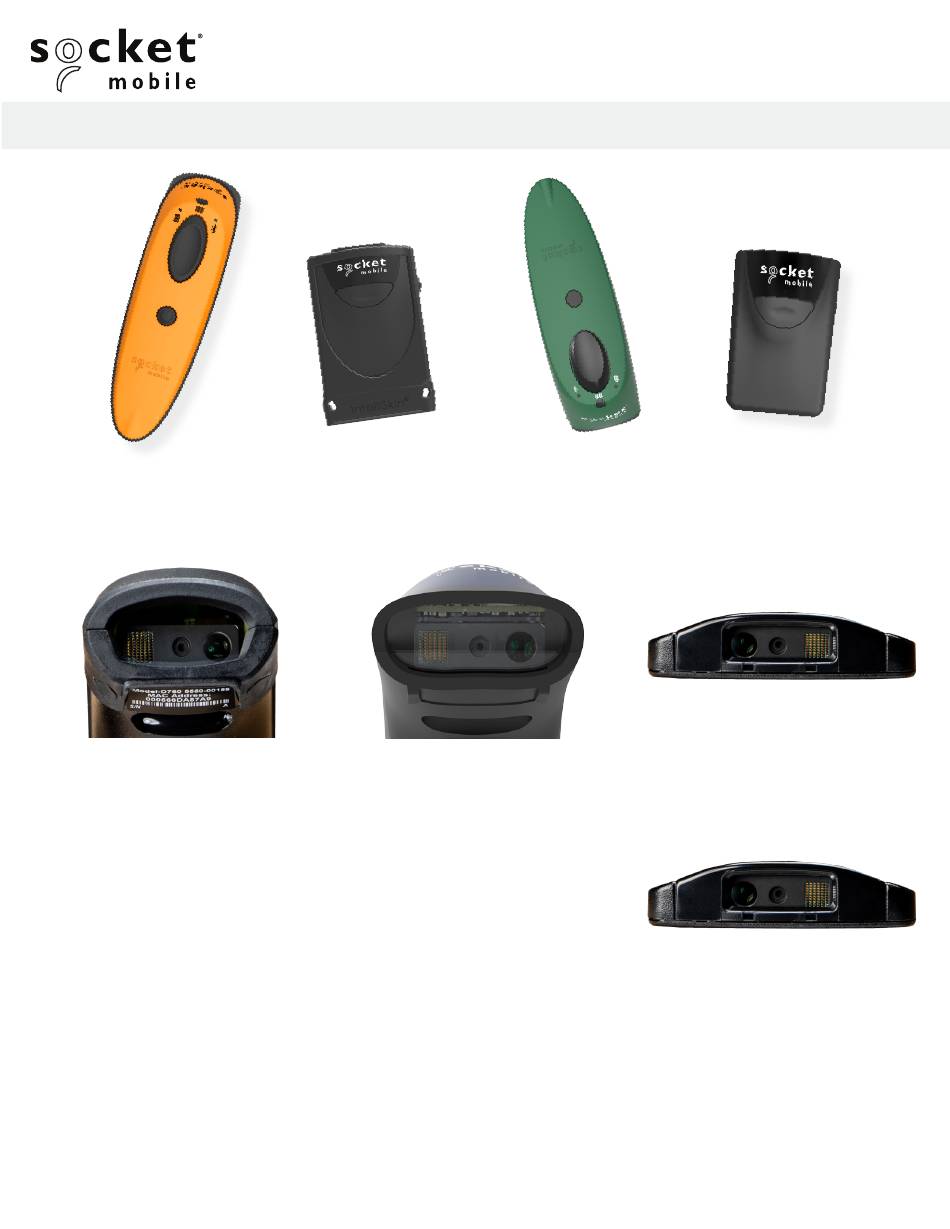

This document pertains to the following D760, D860, S760, S860:
Model
D760
Construction Orange
D760
Safety Green
D760
Utility Gray
PROGRAMMING GUIDE
Model
S760
Blue
S760
Green
S760
Red
S760
White
S760
Yellow
Model
S860 Black
Model
D860 Black
