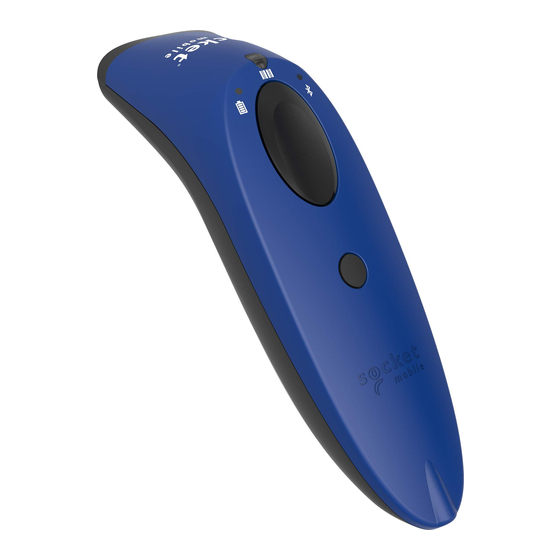

S700, S730, S740, and S760
SocketScan® 700 Series User Guide
Bluetooth® wireless technology
Barcode Scanner
www.socketmobile.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SocketScan 700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Socket SocketScan 700 Series

Summary of Contents for Socket SocketScan 700 Series

  • Page 1 S700, S730, S740, and S760 SocketScan® 700 Series User Guide Bluetooth® wireless technology Barcode Scanner www.socketmobile.com...

  • Page 2: Table Of Contents

    Table of Contents Package Contents Optional Charging Accessories Product Information Attach Wrist Strap Charge the Battery Powering On/Off Scanning Barcodes Bluetooth Connection Modes 11-12 Bluetooth Connection Roles/Reconnection 13-15 Setup using Application Mode • Apple 16-17 ® • Android 18-19 • Windows PC Setup without software application (Basic Mode): •...
  • Page 3 Table of Contents Pairing Reset (Bluetooth connection) Factory Reset Restore Method Battery Replacement Quick Programming 28-33 Status Indicators 34-37 Product Specifications 38-39 Supported Symbologies 40-42 Safety, Bluetooth, Compliance & Warranty 43-49, 52-55 Battery Warning Statements 50-51...

  • Page 4: Package Contents

    Mac iOS® are registered trademarks of Apple, Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade names are those of their respective owners.

  • Page 5: Optional Charging Accessories

    Optional Charging Accessories Available separately Charging Stand AC Power Supply Charging Dock International Adapters available For all optional accessories visit our Socket Store.

  • Page 6: Product Information

    Power Connector Stand Attachment Lanyard Eyelet Charging pins Socket Mobile’s barcodes scanners can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode scanners can be wiped clean with a Sani- Cloth. Warning: DO NOT IMMERSE IN WATER (scanner’s mechanics could be damaged) DO NOT USE BLEACH FOR CLEANING (scanner’s material property may be affected)

  • Page 7: Attach Wrist Strap

    Attach Wrist Strap Attach the Wrist Strap (optional) 1. Detach the string loop of the tether from the wrist strap. 2. Feed the string loop through the eyelet. 3. Pull the tether through the string loop. 4. Pull tight so the string loop is secure. 5.

  • Page 8: Charge The Battery

    Charge the Battery Power Adapter Plug in the power adapter and the scanner will beep twice. The scanner must be fully charged before first use. Please allow 8 hours uninterrupted charging for the initial battery charge. The scanner will stop charging once the battery is full (No overcharging occurs) •...

  • Page 9: Powering On/Off

    Powering on/off Power button Powering On: Powering Off/ Disconnecting: Press and hold down the small Press and hold down the small power button until the Battery power button until the scanner light turns on and the scanner beeps twice (high-low) and all beeps twice (low-high).

  • Page 10: Scanning Barcodes

    Scanning Barcodes 1D/2D Barcode and OCR Aim the scan beam straight across the entire barcode Trigger button Scanning Barcodes 1. Hold the scanner a few inches from the barcode. 2. Aim, press and hold the trigger button. By default, the scanner will beep, vibrate, and the scan indicator will flash green to confirm a successful scan.

  • Page 11: Bluetooth Connection Modes

    Bluetooth Connection Modes Operating System Connection Options Bluetooth Apple Operating Bluetooth Bluetooth Serial Systems Devices Specific (OS) Support Support (MFi Mode) Android 4.0.3 & Android later iPod, iPhone, & Apple iOS iPad Windows Windows 7, 8, 10 Mac OS X 10.4 to 10.X Mac OS Mac Books, Mac...
  • Page 12 1. Must use with an App developed to work with (MFi-SPP) iOS devices 2. Software installation is required Apple Specific 3. If you have an iOS application that supports Serial Profile Socket Mobile Scanners this is the mode to *By default, the scanner is set to Basic Mode (HID).

  • Page 13: Bluetooth Connection Roles/Reconnection

    Bluetooth connection roles Advanced users only. Note: For the S730 laser barcode scanner print the barcode to scan. Basic Mode (HID) Keyboard Changes a scanner in HID-Peripheral mode to HID-Keyboard mode. For Mac OS, Apple iOS, and other smart devices. Basic Mode (HID) Peripheral Changes a scanner in HID-Keyboard mode to HID-Peripheral mode.
  • Page 14 Data Mode-For SPP Mode Only Advanced users only. Note: For the S730 laser barcode scanner print the barcode to scan. Packet Mode (default) Configures the scanner to transmit decoded data in packet format. Raw Mode - Android and Windows only Configures the scanner to transmit decoded data in raw (unpacketed) format.
  • Page 15 Bluetooth ReConnection All Bluetooth Connection Modes are OK. Note: For the S730 laser barcode scanner print the barcode to scan. Important! After scanning this command barcode, power off and power on the scanner to make sure it is configured properly. Enable Automatic Reconnection from scanner (default) Configure the scanner to automatically initiate a connection to the last paired computer/device after the scanner is powered on.
  • Page 16 Setup-Apple iOS App Mode To assist in scanner setup and configuration, download our new Companion App for free! Socket Mobile Companion App will help you configure and check the status of your Socket Mobile Barcode scanners. • Easy to follow instructions for pairing scanners in Application Mode •...
  • Page 17 Setup-Apple iOS App Mode Scan QR Code using your host device to download Socket Mobile Companion app to pair your scanner. For quick set up: Note: For the S730 laser barcode scanner print the barcode to scan. Power on the scanner. Make sure the scanner is discoverable (unpaired).
  • Page 18 Setup-Apple ios App Mode 4. Tap Socket S700[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the scanner blue LED will stop blinking and turn solid blue. Note: The characters in brackets are the last 6 characters of the Bluetooth Address.
  • Page 19 Setup-Android App Mode Scan QR Code using your host device to download Socket Mobile Companion app to pair your scanner. For quick set up: Power on the scanner. Make sure the scanner is discoverable (unpaired). The Blue light should be blinking fast.
  • Page 20 Setup-Android App Mode 4. Tap Socket S700[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue. Note: The characters in brackets are the last 6 characters of the Bluetooth Address.
  • Page 21 Open. 5. Click the “Start” button and follow the instructions in the wizard. 6. Once complete, you will be ready to scan using Socket’s keyboard emulation (this should be turned off if you have an application that supports the Capture SDK) Note: For the S730 laser barcode scanner print the barcode to scan.
  • Page 22 Setup Basic Mode iMAC In this mode the scanner functions and communicates similar to a keyboard. Therefore, scanner will work with Safari, Notes, and any other application that support an active cursor. 1. Power on the scanner. Make sure the scanner is discoverable (unpaired).

  • Page 23: Android

    Setup Basic Mode Android In this mode the scanner functions and communicates similar to a keyboard. Therefore, scanner will work with Notes, and any other application that supports an active cursor. 1. Power on the scanner. Make sure the scanner is discoverable (unpaired) and the blue light blinks fast.
  • Page 24 Turn Bluetooth on for your device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 2. Tap Socket S700[xxxxxx] in the list of Devices found. After a few seconds the status will change to “Connected” or “Paired” and the scanner blue light will stop blinking and turn solid blue.

  • Page 25: Pairing Reset (Bluetooth Connection)

    Pairing Reset This procedure will put the scanner in discoverable mode. If the scanner is paired with a device, unpair it before trying to connect to a different device. Step 1: Remove or forget the scanner from the Bluetooth list on the host device.

  • Page 26: Factory Reset

    Factory Reset Configures the scanner to factory defaults. The scanner powers off after scanning this barcode. Or, follow the Factory Reset button sequence: 1. Power ON the scanner. 2. Press and hold the scan button. 3. Tap the power button once while continuing to press the scan button.

  • Page 27: Restore Method

    Restore Method NOTE: If your scanner remains in an unresponsive state after following the Factory Reset, use the Restore Method. The Restore Method should be the last attempt used to revive an unresponsive scanner. It will reinitialize the core hardware. 1.

  • Page 28: Battery Replacement

    Battery Replacement Step 1: Remove Battery Door Use screw driver to loosen screw and remove battery door. Step 2: Remove Battery Use a flat head screw driver and place in the top right corner to gently push the battery out. Then, pull the connector to remove. Step 3: Insert New Battery Plug the connector on the new battery.

  • Page 29: Quick Programming

    Quick Programming Scan command barcode(s) to quickly configure the Scanner. Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode! For custom prefix and suffix, contact support@socketmobile.com (Note: For the S730 laser barcode scanner print the barcode to scan). Prefix/Suffix Suffix- Carriage Return...
  • Page 30 Quick Programming Scan one of the barcodes to enable/disable vibrate and beep settings. (Note: For the S730 laser barcode scanner print the barcode to scan). Vibrate/Beep Modes Vibrate ON (default) Enables scanner to vibrate to indicate successful scans. Vibrate OFF Disables scanner from vibrating to indicate successful scans.
  • Page 31 Quick Programming Scan one of the barcodes to reconfigure the scanner to remain powered on for a longer time. (Note: For the S730 laser barcode scanner print the barcode to scan). Active Modes 2 Hours (default) Scanner powers off in 2 hours whwen idle/inactive while connected and 5 minutes when...
  • Page 32 Quick Programming Scan one of the barcodes to configure the scanner to automatically scan barcodes. Command barcode is for model S740 and S760 only. Presentation modes Mobile Mode (default) Reverts back to manual scan mode. #FNB 41FBA50000# Auto Mode (recommended) Configures the sccanner to switch to presentation...
  • Page 33 Quick Programming These barcodes are to configure the scanner for different languages using Microsoft Windows keyboard layout. Scan only when the scanner is in Basic Mode (HID profile). (Note: For the S730 laser barcode scanner print the barcode to scan). HID Keyboard Language Settings English (default) English UK...
  • Page 34 Quick Programming (Note: For the S730 laser barcode scanner print the barcode to scan). HID Keyboard Language Settings Japanese Polish Spanish Swedish ANSI Emulation *Can be slower on Windows System...

  • Page 35: Status Indicators

    Status Indicators Battery Charging when plugged LED Activity Meaning into Power Supply Blinking Yellow Charging the battery Solid Green Battery is 100% full Battery Status When not LED Activity Meaning connected to power supply Battery capacity from Solid Green 100% to 25% Battery capacity from Solid Yellow 25% to 10%...
  • Page 36 Status Indicators Bluetooth LED Activity Meaning Quick Blinking Blue Discoverable - waiting (2 blinks every for a host Bluetooth second) connection. Scanner is attempting to connect to the last known Slow Blinking Blue host device. Bluetooth (1 blink every After 1 minute of second) blinking, scanner will stop searching.
  • Page 37 Status Indicators Beep Pattern Sound Meaning Low-High Tone Power On High-Low Tone Power Off High-High Tone Power Supply detected and scanner started charging 1 Low Beep Scanner has toggled on-screen keyboard or keyboard toggle feature is enabled (iOS devices only) 1 Beep Scanner connected to device and is ready to scan...
  • Page 38 Status Indicators Vibrate Meaning Vibrate Data successfully scanned. Command Barcodes are available on page to modify beep and vibrate settings. If you are using a scanner-enabled application, typically the application provides settings for beep, and vibrate settings. Configuration Settings Time after powering on Scanner Bluetooth mode 0-5 minutes Discoverable and connectable...

  • Page 39: Product Specifications

    Product Specifications Specifications S700/S730/S740/S760 Dimensions (L x W 5.2” x 1.5” x 1.6” (132.2 x 37.1 x 40.1 mm) x H) Total Mass 3.8 oz (108 g) Battery 1400 mAh Lithium - Ion Battery Charge Time 8 Hours Battery Life - Standby time: over 30 hours Per Full Charge Active Scan Time: 70,000 scans within 9 hours...
  • Page 40 Product Specifications Specifications S700/S730/S740/S760 Symbologies See next page Supported Language Settings English, French, German, Spanish [in Basic Mode (HID)] Systems/Battery Charging USB Type 5V 1A Requirement Ambient Light From 0 to 100 000 lux From pitch black to direct sunlight Operating 32°...
  • Page 41 Supported Symbologies Supported S700 S730 S740 S760 Symbologies 1D Barcodes Enabled Enabled Enabled Enabled Bookland EAN Chinese 2 of 5 Codabar Code 11 Code 39 Code 39 Full ASCII Code 93 Code 128 Discrete 2 of 5 EAN-8/JAN EAN-13/JAN GS1-128 GS1 DataBar GS1 DataBar Expanded GS1 DataBar Limited...
  • Page 42 Supported Symbologies Supported S740 S760 Symbologies 2D Barcodes Enabled Enabled Aztec Codablock-F Data Matrix Han Xin Maxicode Micro PDF 417 PDF417 QR Code *DotCode S760 only *Grid Matrix S760 only *GS1 QR (S760 only) *Micro QR (S760 only) *Linked QR (S760 only)

  • Page 43: Supported Symbologies

    Supported Symbologies Supported S740 S760 Symbologies Postal Codes Enabled Enabled Australia Post Japan Postal USPS 4CB/ One Code/ Intelligent Mail *Netherlands KIX Code (S740/S760 only) *UK Postal (S740/S760 only) *US Planet (S740/S760 only) *US Postnet (S740/S760 only) Supported Font S760 Enabled OCR A OCR B...
  • Page 44 Helpful Resources Technical Support & Product Registration: https://www.socketmobile.com/support Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: https://www.socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: http://www.socketmobile.com/developers The User’s Guide (full installation and usage instructions) and Programming Guide (Advanced Scanner Configurations) can be download at:...
  • Page 45 Changes or modifications of this product, not expressly approved by Socket Mobile may void the user’s authority to use the equipment. Do not charge the SocketScan barcode scanner using an AC adapter when operating the unit outdoors, or in the rain.
  • Page 46 Bluetooth Device United States FCC ID: T9J-RN42 LUBMA41 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 47 Bluetooth Device United States FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device meets the FCC requirements for RF exposure in public or uncontrolled environments. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and 2.
  • Page 48 Bluetooth Device Canada 6514A-RN42 2529A-MA41-S7 This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 49 Bluetooth Device Europe CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows: Applicable Directives: •...
  • Page 50 Bluetooth Device JAPAN Telec Marking Compliance R201-125709 R 211-181219 Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.

  • Page 51: Battery Warning Statements

    Battery Warning Statements This device contains two AA rechargeable NiMH replaceable batteries. Stop charging SocketScan barcode scanners if charging is not completed within 24 hours. (Look into replacing the battery). Stop charging the battery if the SocketScan barcode scanner case becomes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage.
  • Page 52 Battery Warning Statements • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. • Never expose this product or the battery to any liquids. • Do not shock the battery by dropping it or throwing it. If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and promptly dispose.
  • Page 53 ATTENTION - LUMIERE LASER NE PAS 650nm REGARDER LE RAYON. CLASSE 2 PRODUIT LASER 1.0mw Complies with Laser Notice 50, dated June 24, 2007 Complies with IEC/EN 60825-1:2007, IEC/EN60825-1:2014 Manufacturer Name: Socket Mobile, Inc. MANUFACTURER ADDRESS: 39700 Eureka Drive, Newark, CA 94560,...
  • Page 54 Regulatory Compliance CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
  • Page 55 (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.
  • Page 56 Extend Your Warranty... SocketCare Receive Priority Service and Personal Care. You have 60 Days from purchase date to enroll in a SocketCare Service Program! For detailed information visit: https://www.socketmobile.com/socketcare 04/2021...
