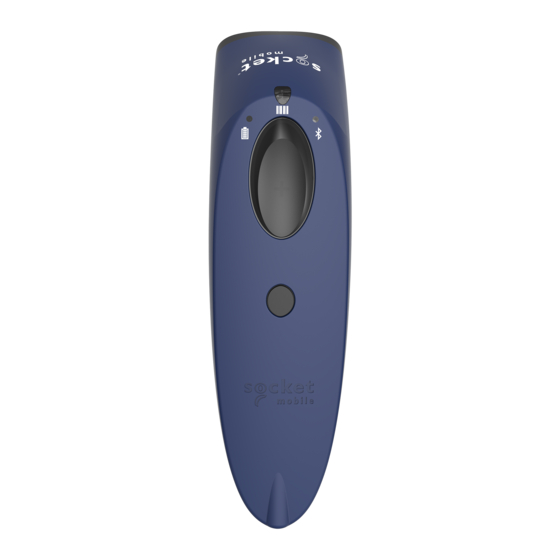

S700 USERGUIDE
SOCKETSCAN
®
Bluetooth
wireless technology
®
Barcode Scanner
Model S700
www.socketmobile.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SocketScan S700 and is the answer not in the manual?

Questions and answers

Toni Ann Simmons
January 27, 2025

Can Socket Mobile SocketScan S700 read 2D barcodes?

0
1 comments:
Mr. Anderson
February 10, 2025

No, the Socket Mobile SocketScan S700 cannot read 2D barcodes. It only supports 1D barcode scanning. For scanning 2D barcodes, including QR codes, the S720 model is recommended.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Socket SocketScan S700

Summary of Contents for Socket SocketScan S700

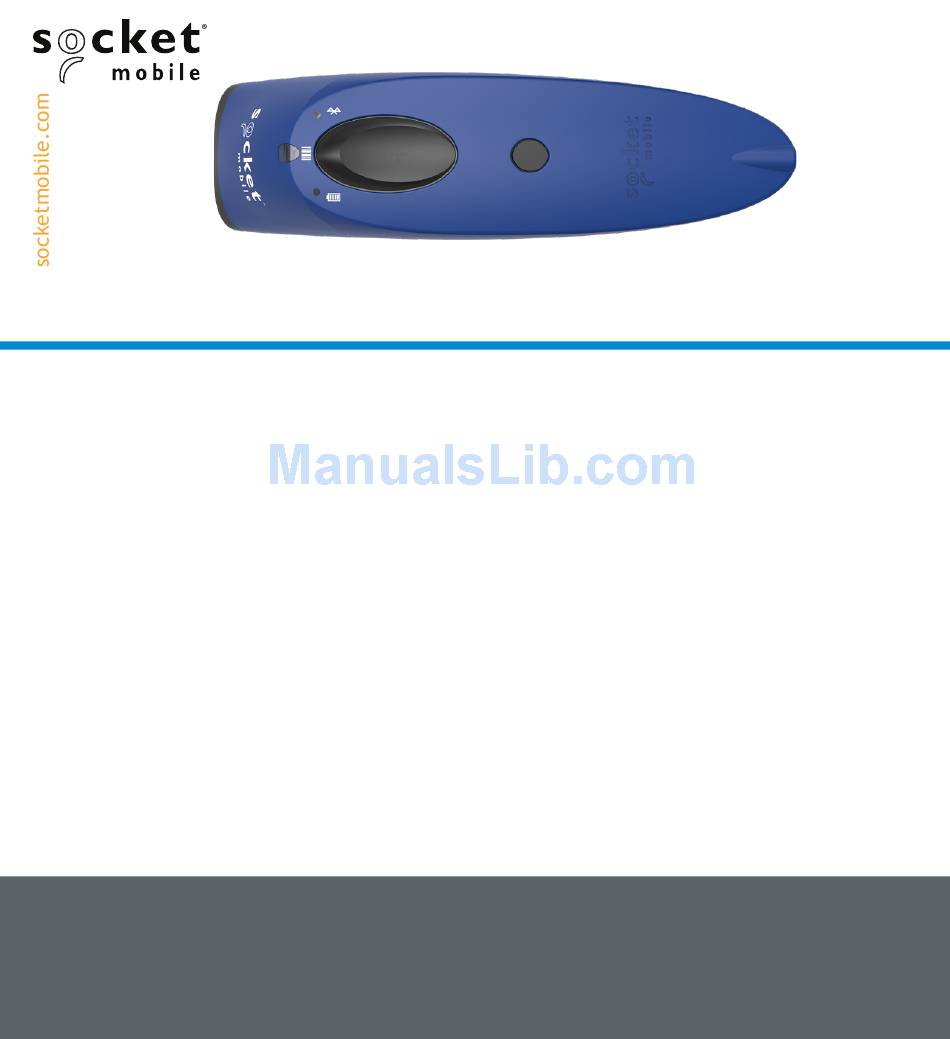

  • Page 1 S700 USERGUIDE SOCKETSCAN ® Bluetooth wireless technology ® Barcode Scanner Model S700 www.socketmobile.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents Product Information Attach Wrist Strap Charge the Battery Optional Charging Accessories Powering on/off Scanning Barcodes Bluetooth Connection Modes 11-12 How to setup your scanner: Download Companion App for Apple and Android Device ® Can’t use Companion App? How to setup your scanner in Basic Mode: Basic Mode (HID keyboard) How to setup your scanner in Application Mode (SPP):...
  • Page 3 TABLE OF CONTENTS Bluetooth Unpairing Bluetooth Reconnection of Scanner Factory Reset Restore Method Status Indicators 23-26 Product Specifications 27-28 Helpful Resources Safety, Compliance & Warranty 30-38 Battery Warning Statements 36-37 Limited Warranty Command Barcodes 41-46...

  • Page 4: Package Contents

    Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade names are those of their respective owners.

  • Page 5: Product Information

    *Also used to display the on-screen keyboard in Basic Mode (iOS only). Socket Mobile’s barcodes scanners can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode scanners can be wiped clean with a Sani-Cloth.

  • Page 6: Attach Wrist Strap

    ATTACH WRIST STRAP Attach the Wrist Strap (optional) 1. Feed the string loop through the eyelet. 2. Pull the wrist strap through the string loop. 3. Pull tight so the string loop is secure. 4. Tighten wrist strap until secure.

  • Page 7: Charge The Battery

    CHARGE THE BATTERY “Beep Beep” Power Adapter The scanner must be fully charged before first use. Please allow 6 hours uninterrupted charging for the initial battery charge. The scanner will stop charging once the battery is full. (No overcharging occurs). •...

  • Page 8: Optional Charging Accessories

    OPTIONAL CHARGING ACCESSORIES Available separately Charging Stand Universal Charging AC Power Supply International Adapters Dock available For all optional accessories visit our Socket Store.

  • Page 9: Powering On/Off

    POWERING ON/OFF Power button Powering On: Powering Off/ Disconnecting: Press and hold down the small Press and hold down the small power button until the Battery power button until the scanner light turns on and the scanner beeps twice (high-low) and all beeps twice (low-high).

  • Page 10: Scanning Barcodes

    SCANNING BARCODES 1D Barcode Aim the scan beam straight across the entire barcode. Scan button Scanning Barcodes 1. Hold the scanner a few inches from the barcode. 2. Aim, press and hold the scan button. By default, the scanner will beep, vibrate, and the scan indicator will flash green to confirm a successful scan.

  • Page 11: Bluetooth Connection Modes

    (SPP) 2. More efficient and reliable data communications for barcodes containing lots of data Serial Port Profile 3. If you have an application that supports Socket Mobile Scanners this is the mode recommended For iOS Devices Application Mode 1. Must use with an App developed to work with...
  • Page 12 BLUETOOTH CONNECTION MODES Operating System Connection Options Bluetooth Operating Bluetooth Bluetooth Apple Systems Devices Serial (OS) Support Support Specific (MFi Mode) Android 4.0.3 & Android later iPod, iPhone, & Apple iOS iPad Windows PC Windows 7, 8, 10 Mac OS X 10.4 to 10.X Mac OS Mac Books, Mac...
  • Page 13 COMPANION APP To assist in scanner setup & configuration Download the Companion App for free! Socket Mobile Companion App will help you configure and check the status of your Socket Mobile Barcode scanners. • Easy to follow instructions for pairing scanners in Application Mode •...

  • Page 14: Basic Mode (Hid Keyboard)

    BASIC MODE Connect Device in Basic Mode In this mode the scanner functions and communicates similar to a keyboard. Therefore, the scanner will work with Notes, and any other application that supports an active cursor. 1. Power on the scanner. Make sure the scanner is discoverable (unpaired).

  • Page 15: Android

    APPLICATION MODE Connect Android device in Application Mode Install Software 1. Go to GooglePlay Store, search for “SocketScan ”. 2. Download & install. Follow the on screen instructions. Getting Started 3. Follow the on screen instructions. 4. Scan the barcode on the screen. 5.

  • Page 16: Apple

    APPLICATION MODE Connect Apple iOS device in Application Mode Please check with your scanner application vendor or visit www.socketmobile.com/appstore to confirm your scanner-enabled application supports the scanner. If you are using the scanner with an Apple iOS device and a scanner-enabled Application that does not provide instructions how to connect your scanner, please use the following steps.

  • Page 17: Application Mode

    APPLICATION MODE 4. Tap Socket S700[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” or “Paired” and the scanner blue LED will stop blinking and turn solid blue. Note: The characters in brackets are the last 6 characters of the Bluetooth Address.

  • Page 18: Windows

    APPLICATION MODE Connect Windows PC in Application Mode Note: Make sure you have administrative privileges. 1. Download the latest SocketScan 10 software from Socket Mobile’s support web page. 2. Follow the on-screen instructions to install the software. 3. In SocketScan 10 Settings, select an incoming Bluetooth serial COM port.

  • Page 19: Bluetooth Unpairing

    BLUETOOTH UNPAIRING Note: This procedure will put the scanner in discoverable mode. Step 1: Unpairing the scanner: Delete the Bluetooth Pairing If the scanner is paired with a device, unpair it before trying to connect to a different device. a. Power on the scanner. b.

  • Page 20: Bluetooth Reconnection Of Scanner

    BLUETOOTH RECONNECTION Automatic Reconnections Each time you power on the scanner, it will automatically try to connect to the last device it was connected to. • Make sure the device is in range with Bluetooth turned on. • Pressing the scan button will initiate the attempts to connect. •...

  • Page 21: Factory Reset

    FACTORY RESET Factory Reset will restore the SocketScan to Factory Default settings (configured as shipped). Scan this barcode follow the Factory Reset (button) sequence: 1. Power ON the reader. Quickly press and release the power button 2. Press and hold the scan button. 3.

  • Page 22: Restore Method

    RESTORE METHOD NOTE: If your scanner remains in an unresponsive state after following the Factory Reset, use the Restore Method. The Restore Method should be the last attempt used to revive an unre- sponsive scanner. It will reinitialize the core hardware. 1.

  • Page 23: Status Indicators

    STATUS INDICATORS Battery Charging when plugged LED Activity Meaning into Power Supply Blinking Yellow/Amber Charging the battery Solid Green Battery is 100% full Battery Status When not LED Activity Meaning connected to power supply Battery capacity from 100% Solid Green to 25% Battery capacity from 25% Solid Yellow/Amber...
  • Page 24 STATUS INDICATORS (CONTINUED) Bluetooth LED Activity Meaning Quick Blinking Blue Discoverable - waiting for a (2 blinks every host Bluetooth connection. second) Attempting to connect to a paired device. Searching Bluetooth Slow Blinking Blue the last known Host. (1 blink every second) Note: Will STOP attempting after approx.
  • Page 25 STATUS INDICATORS (CONTINUED) Beep Pattern Sound Meaning Low-High Tone Power On High-Low Tone Power Off 2 Even Tones Power Supply detected and scanner started charging 1 Low Beep Scanner has toggled on-screen keyboard or keyboard toggle feature is enabled (iOS devices only) 1 Beep Scanner connected to device and is ready to scan...

  • Page 26: Status Indicators

    STATUS INDICATORS (CONTINUED) Vibrate Meaning Vibrate Data successfully scanned. Command Barcodes are available on pages 41-46 to modify the LED, beep, and vibrate settings. If you are using a scanner-enabled application, typically the application provides settings for LED, beep, and vibrate settings. Configuration Settings Time after powering on Scanner Bluetooth mode...

  • Page 27: Product Specifications

    PRODUCT SPECIFICATIONS Specifications S700 Dimensions (L x W x H) 5.2” x 1.5” x 1.6” (132.2 x 37.1 x 40.1 mm) Total Mass 4.0 oz (113 g) Antimicrobial Antimicrobial additive in external surfaces Battery Rechargeable, 2000mAh AA (LR6) NiMH Charge Time 6 Hours Battery Life - Standby time: over 25 hours...
  • Page 28 PRODUCT SPECIFICATIONS Specifications S700 Symbologies All major 1D barcodes Supported Language Settings English, French, German, Spanish [in Basic Mode (HID)] Systems/Battery USB Type 5V 1A Charging Requirement Ambient Light From 0 to 100 000 lux From pitch black to direct sun light Operating 32°...

  • Page 29: Helpful Resources

    HELPFUL RESOURCES Technical Support & Product Registration: support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: socketmobile.com/developers The Command Barcodes (Advanced Scanner Configurations) can be down- load at: socketmobile.com/support/downloads...

  • Page 30: Safety, Compliance & Warranty

    Changes or modifications of this product, not expressly approved by Socket Mobile may void the user’s authority to use the equipment. Do not charge the SocketScan barcode scanner using an AC adapter when operating the unit outdoors, or in the rain.
  • Page 31 BLUETOOTH DEVICE UNITED STATES FCC ID: T9J-RN42 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 32 BLUETOOTH DEVICE UNITED STATES FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radia- tor and your body.
  • Page 33 BLUETOOTH DEVICE CANADA IC ID: 6514A-RN42 This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 34 BLUETOOTH DEVICE EUROPE CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and Euro- pean Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows: CONFORMS TO THE FOLLOWING EUROPEAN DIRECTIVES Low Voltage Directives: 2014/35/EU...
  • Page 35 BLUETOOTH DEVICE JAPAN Telec Marking Compliance R 201-125709 Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.

  • Page 36: Battery Warning Statements

    BATTERY WARNING STATEMENTS This device contains two AA rechargeable NiMH replaceable batter- ies. Stop charging SocketScan barcode scanners if charging isn’t completed within the normal specified time (approx. 6 hours). Stop charging the battery if the SocketScan barcode scanner case be- comes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage.
  • Page 37 BATTERY WARNING STATEMENTS • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. • Never expose this product or the battery to any liquids. • Do not shock the battery by dropping it or throwing it. If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and promptly dispose.
  • Page 38 LED DEVICES Caution: DO NOT STARE DIRECTLY INTO THE LED BEAM. LED DEVICE: The SocketScan S700 and S740 contain a LED-type scan engine. For the LED version of this engine, the following applies: • Complies with EN/IEC 62471 (Exempt Group) •...

  • Page 39: Regulatory Compliance

    REGULATORY COMPLIANCE CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.

  • Page 40: Limited Warranty

    (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.

  • Page 41: Command Barcodes

    COMMAND BARCODES Scan command barcode(s) to quickly configure the Scanner. Make sure the scanner is not connected to a device before scanning a command barcode! See page for unpairing instructions. For a complete set of command barcodes, download the Command Barcodes Sheet: https://socketmobile.com/support/download...
  • Page 42 COMMAND BARCODES (CONTINUED) Important! Make sure the scanner is not connected to a host computer or device before scanning a command barcode! Bluetooth Connection Modes Basic Mode (HID) (default) Configures the Scanner to Human Interface Device (HID) mode as a Keyboard class device #FNB00F40001# Application Mode (MFi-SPP)
  • Page 43 COMMAND BARCODES (CONTINUED) Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode! Beep Settings Beep after scanner Decodes Data ON (default) Enables scanner to beep to indicate successful scans. #FNB0119E00010003 0078004B# Beep after scanner Decodes Data OFF...
  • Page 44 COMMAND BARCODES (CONTINUED) Vibrate Settings Vibrate ON (default) Enables scanner to vibrate to indicate successful scans. #FNB01310001000100FA0000# Vibrate OFF Disables scanner from vibrating to indicate successful scans. #FNB013100010000# Factory Default Factory Reset Revert all settings to factory defaults. The scanner will power off after scanning this barcode.
  • Page 45 Command Barcodes (Continued) HID Keyboard Language Settings Scan to enable language English (Default) #FNB01430001# French #FNB01430002# German #FNB01430003# Spanish #FNB01430004# For more command codes go to: https://www.socketmobile.com/support/download...
  • Page 46 COMMAND BARCODES (CONTINUED) For busy days on the job, try using the Active Mode to keep you moving faster. Avoid the hassle of turning the scanner on again and reconnecting to your host device. Scan one of the barcodes below and reconfigure the scanner to remain on longer. Note: Turn off the host device’s Bluetooth prior to scanning one of the alternate timer barcodes.
  • Page 47 COMMAND BARCODES (CONTINUED) Bluetooth Connection Modes Continuous Power for 4 hours* Scan Barcode to configure the scanner to remain on for 4 hours. #FNB012100F000F0# Return Scanner to Default Setting Turns the scanner off when it is not in use – 3 to 5 minutes after being discon- nected from host device.
  • Page 48 Extend Your Warranty... Receive Priority Service and Personal Care. You have 60 Days from purchase date to enroll in a SocketCare Service Program! For detailed information visit: https://www.socketmobile.com/socketcare 05/2018...
