Mode Settings
ʯ Edit Discrimination Patterns
ʯ Edit Tone ID Profile
ʯ Adjust Response settings
ʯ Turn Recovery Fast On/Off
ʯ Turn Recovery Deep On/Off
ʯ Turn Seawater On/Off
ʯ Select Target Separation
setting
ʯ Select Pinpoint type

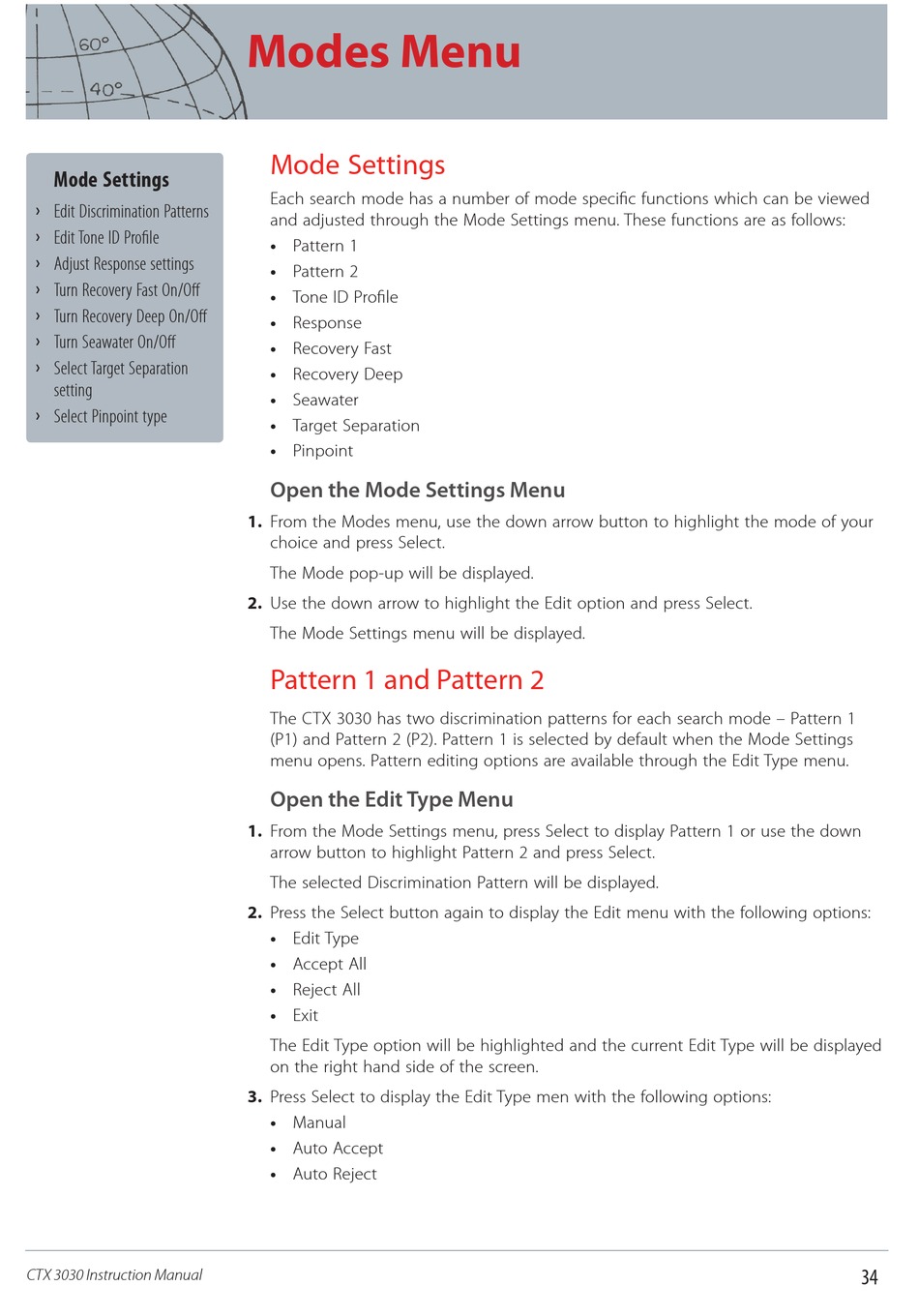

CTX 3030 Instruction Manual
Modes Menu
Mode Settings
Each search mode has a number of mode specific functions which can be viewed
and adjusted through the Mode Settings menu. These functions are as follows:
• Pattern 1
• Pattern 2
• Tone ID Profile
• Response
• Recovery Fast
• Recovery Deep
• Seawater
• Target Separation
• Pinpoint

Open the Mode Settings Menu

1. From the Modes menu, use the down arrow button to highlight the mode of your
choice and press Select.
The Mode pop-up will be displayed.
2. Use the down arrow to highlight the Edit option and press Select.
The Mode Settings menu will be displayed.

Pattern 1 and Pattern 2

The CTX 3030 has two discrimination patterns for each search mode – Pattern 1
(P1) and Pattern 2 (P2). Pattern 1 is selected by default when the Mode Settings
menu opens. Pattern editing options are available through the Edit Type menu.

Open the Edit Type Menu

1. From the Mode Settings menu, press Select to display Pattern 1 or use the down
arrow button to highlight Pattern 2 and press Select.
The selected Discrimination Pattern will be displayed.
2. Press the Select button again to display the Edit menu with the following options:
• Edit Type
• Accept All
• Reject All
• Exit
The Edit Type option will be highlighted and the current Edit Type will be displayed
on the right hand side of the screen.
3. Press Select to display the Edit Type men with the following options:
• Manual
• Auto Accept
• Auto Reject
34
