Menu/Select Button
ʯ Press from the Detect/Map
screens access the menus
ʯ Press from within the menu
screens to select an option
NOTE
Menu options that appear
'greyed out' are not available for
selection.
NOTE
Radio Buttons only allow one
option to be selected, whereas
check boxes allow the selection of
multiple options.
CTX 3030 Instruction Manual

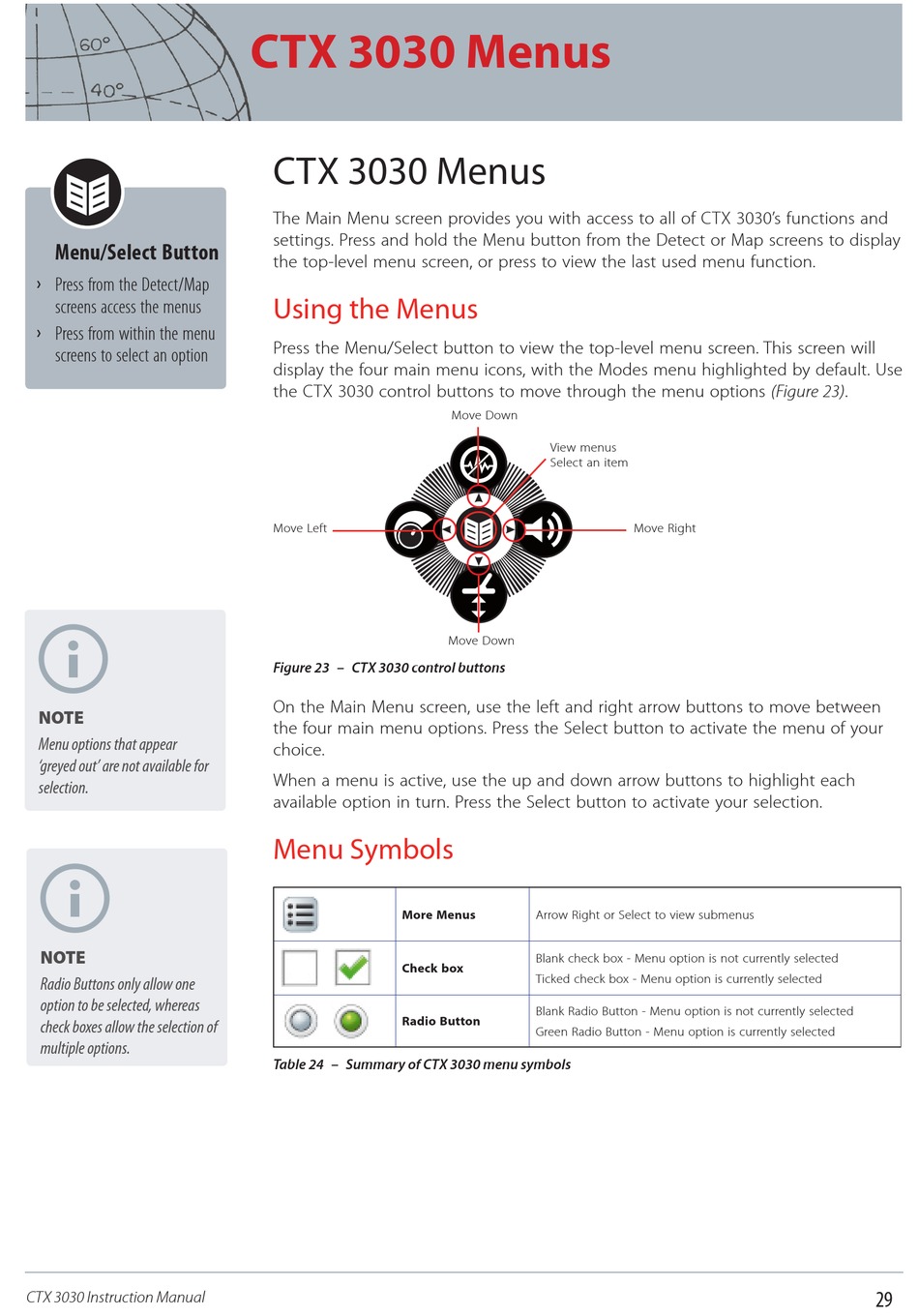

CTX 3030 Menus

CTX 3030 Menus
The Main Menu screen provides you with access to all of CTX 3030's functions and
settings. Press and hold the Menu button from the Detect or Map screens to display
the top-level menu screen, or press to view the last used menu function.

Using the Menus

Press the Menu/Select button to view the top-level menu screen. This screen will
display the four main menu icons, with the Modes menu highlighted by default. Use
the CTX 3030 control buttons to move through the menu options (Figure 23).
Move Left
Figure 23 – CTX 3030 control buttons
On the Main Menu screen, use the left and right arrow buttons to move between
the four main menu options. Press the Select button to activate the menu of your
choice.
When a menu is active, use the up and down arrow buttons to highlight each
available option in turn. Press the Select button to activate your selection.

Menu Symbols

More Menus
Check box
Radio Button
Table 24 – Summary of CTX 3030 menu symbols
Move Down
View menus
Select an item
Move Down
Arrow Right or Select to view submenus
Blank check box - Menu option is not currently selected
Ticked check box - Menu option is currently selected
Blank Radio Button - Menu option is not currently selected
Green Radio Button - Menu option is currently selected
Move Right
29
