The Status Bar is displayed at the top of the Detect and Map screens and provides
status information for the following functions:
• Headphones
• Wireless
• GPS
• Current Search Mode
• Current Pattern
• Time
• GeoHunt
• Backlight
• Battery
Each function is represented by an icon (Figure 4). The icon can vary or may
disappear as the state of each function changes. For further details on the status bar
icons and their various states refer to the summary table (Table 5).
GPS
Headphones Current Pattern
Backlight
GeoHunt Battery
Time
Wireless Current
Search Mode

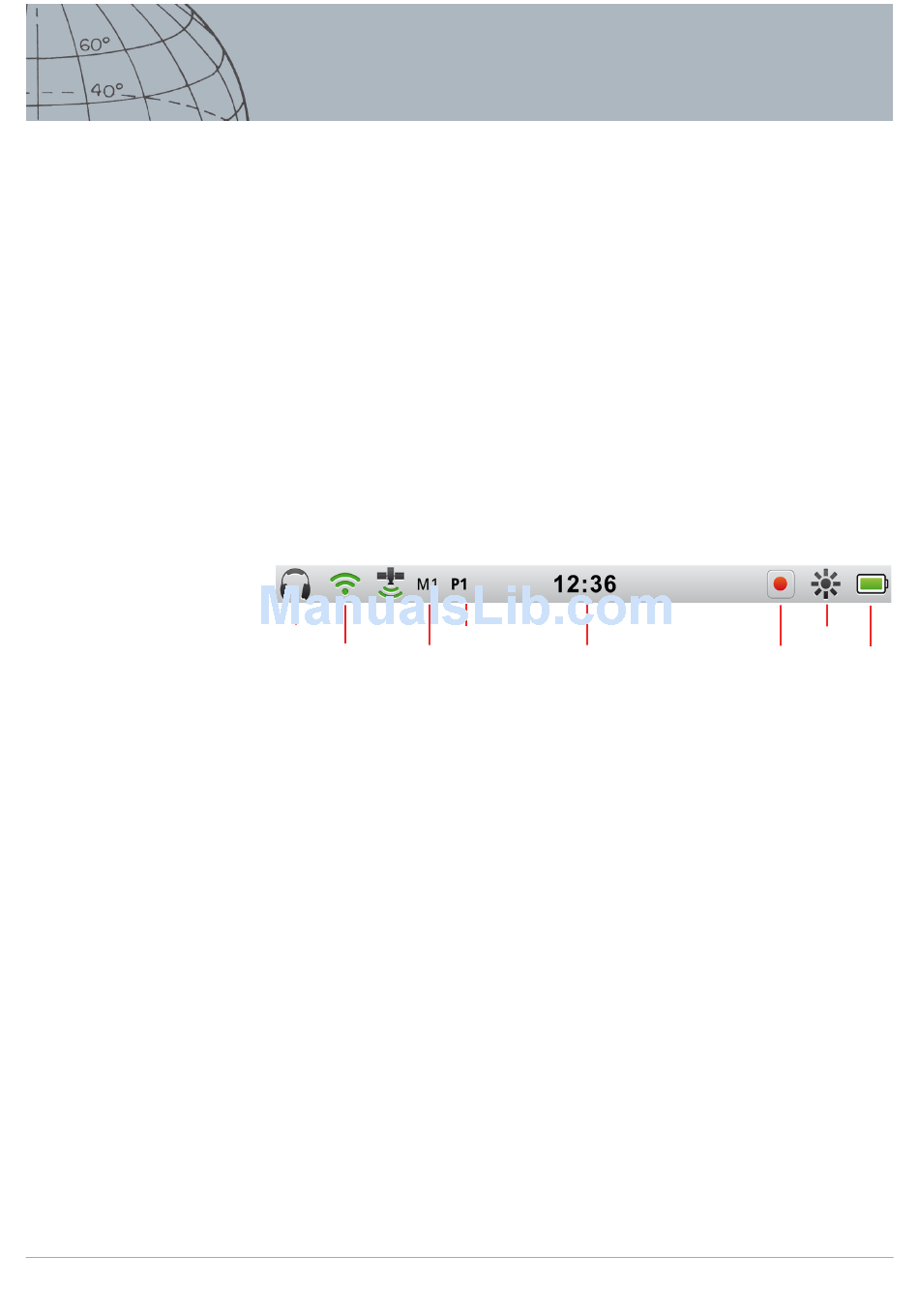

Figure 4 – Status Bar content

Active Mode Markers

An Active Mode Marker will appear in the status bar to indicate which search mode
is currently active. Mode numbers are assigned to each of the modes in order (M1
to M10). For more information on search modes, see page 32.

Patterns

The pattern marker will appear in the status bar to indicate which discrimination
pattern is currently active. Each pattern has been assigned a unique marker as
follows:
• P1 – Pattern 1
• P2 – Pattern 2
