3 Configuration

ETH1000-D can be configured by DIP or from Flashlink GYDA-SC.

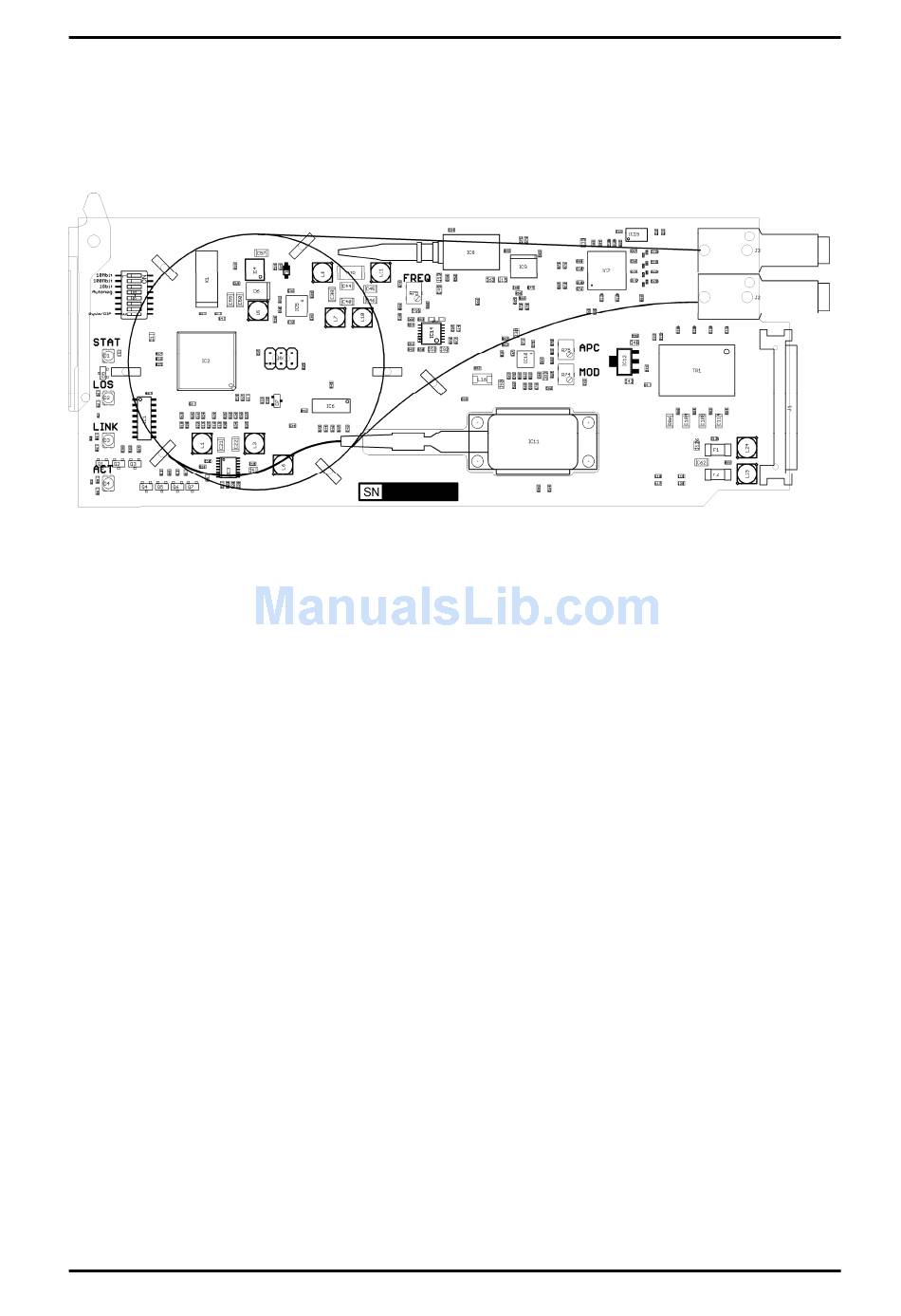

The tables below explain the functionality of the dipswitches.

# Description

1. Enable 10Base-T

2. Enable 100Base-T

3. Enable 1000Base-T

4. Auto- negotiation on 1000Base-X

5. Reserved

6. Reserved

7. Reserved

8. GYDA override/DIP

When DIP switch 1, 2 and 3 are all on or off, speed is set to auto.

DIP switch 1 enables/disables 10Base-T electrical connection.

DIP switch 2 enables/disables 100Base-T electrical connection.

DIP switch 3 enables/disables 1000Base-T electrical connection.

DIP switch 4 enables/disables auto-negotiation on the optical connection, 1000Base-X.

When connecting ETH1000-D to ETH1000MC, auto-negotiation must be disabled. Using two

ETH1000-Ds, these DIPs must be in the same situation.

Dip 5, 6 and 7 are reserved.

Rev. 1

network-electronics.com | 6
