ETH1000-D Rev. 1

1 Product overview

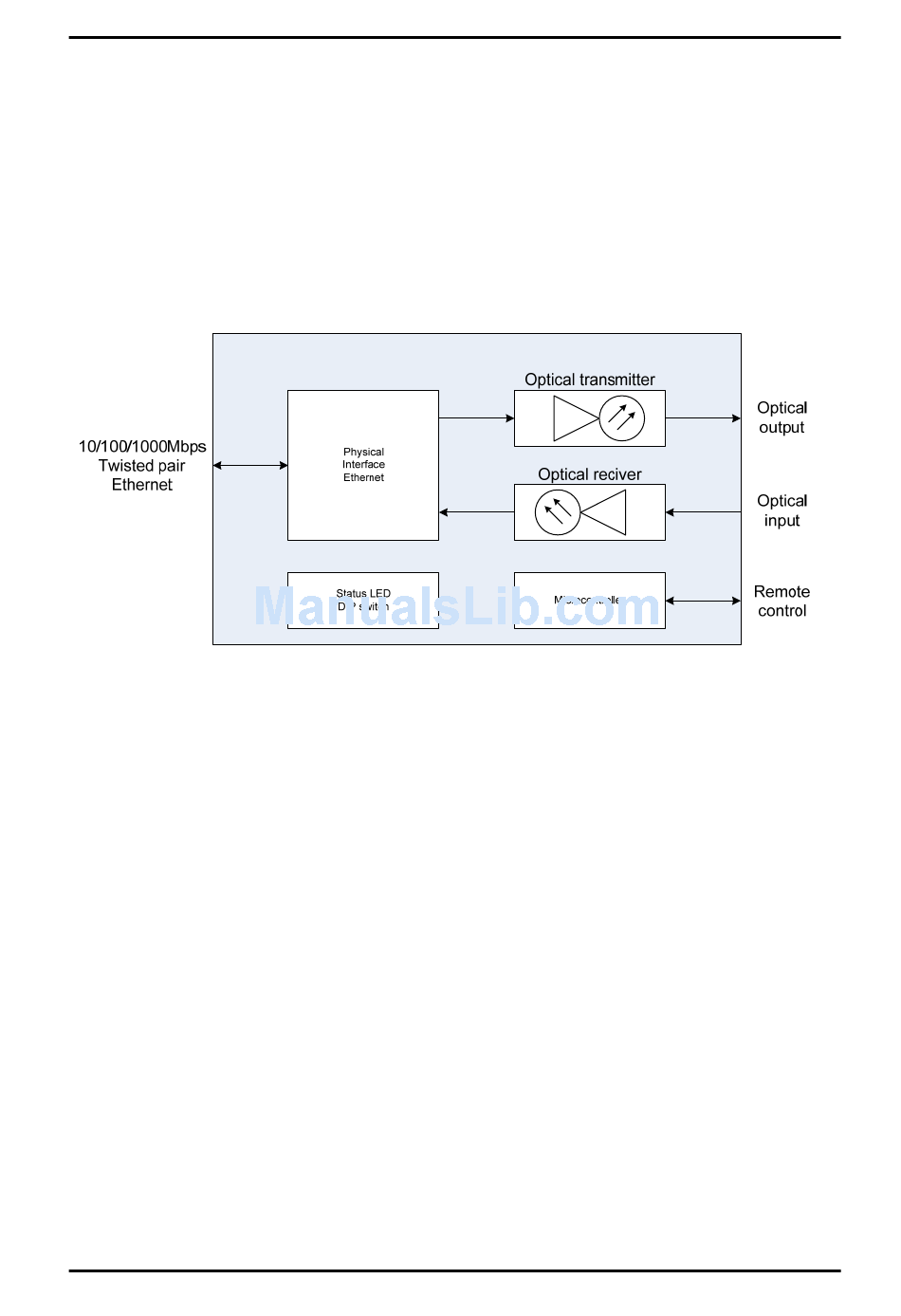

The Flashlink ETH1000-D is a 10/100/1000Base-T to 1000Base-X converter module. The
module converts a 10/100/1000Mbps Ethernet signal on copper to 1000Mbps fibre suitable
for long haul applications. The module has one electrical Ethernet port, and one fibre
transceiver port (receiver fibre connector and transmit fibre connector). The speed on the
electrical connector is dependent of the DIP switch setting or GYDA control. Speed will upon
link connection automatically be set at the highest possible speed. User can independently
enable or disable 10Mbps, 100Mbps or 1000Mbps. The fibre link can be used in one or two
fibre installations, or occupy two wavelengths in a WDM, CWDM or DWDM installation.
