HD-OE-2/HD-OE-L-2/HD-OE-2-M

3 Configuration

3.1 Format configuration

The HD-OE-2 can support a number of different broadcast formats. The correct configuration
can either be set with a DIP switch or with the GYDA Control System. The layout of HD-OE-2
is shown in the drawing below with the DIP switch to the upper left position.
DIP switch configuration must be set according to the table below:
Switch # Label Function, DIP = ON Function, DIP = OFF
1 RCL1 Reclocker 1 ON
2 PRI1 Input 1 selected
3 ASI1 DVB-ASI Reclocker
4 RCL2 Reclocker 2 ON
5 PRI2 Input 2 selected
6 ASI2 DVB-ASI Reclocker
7 SWP Normal operation
8 OVR Override GYDA
All DIP switches are off when pointing towards the release handle.
All clock rates for HD-SDI, SDI and DVB-ASI are automatically configured by the module
itself.

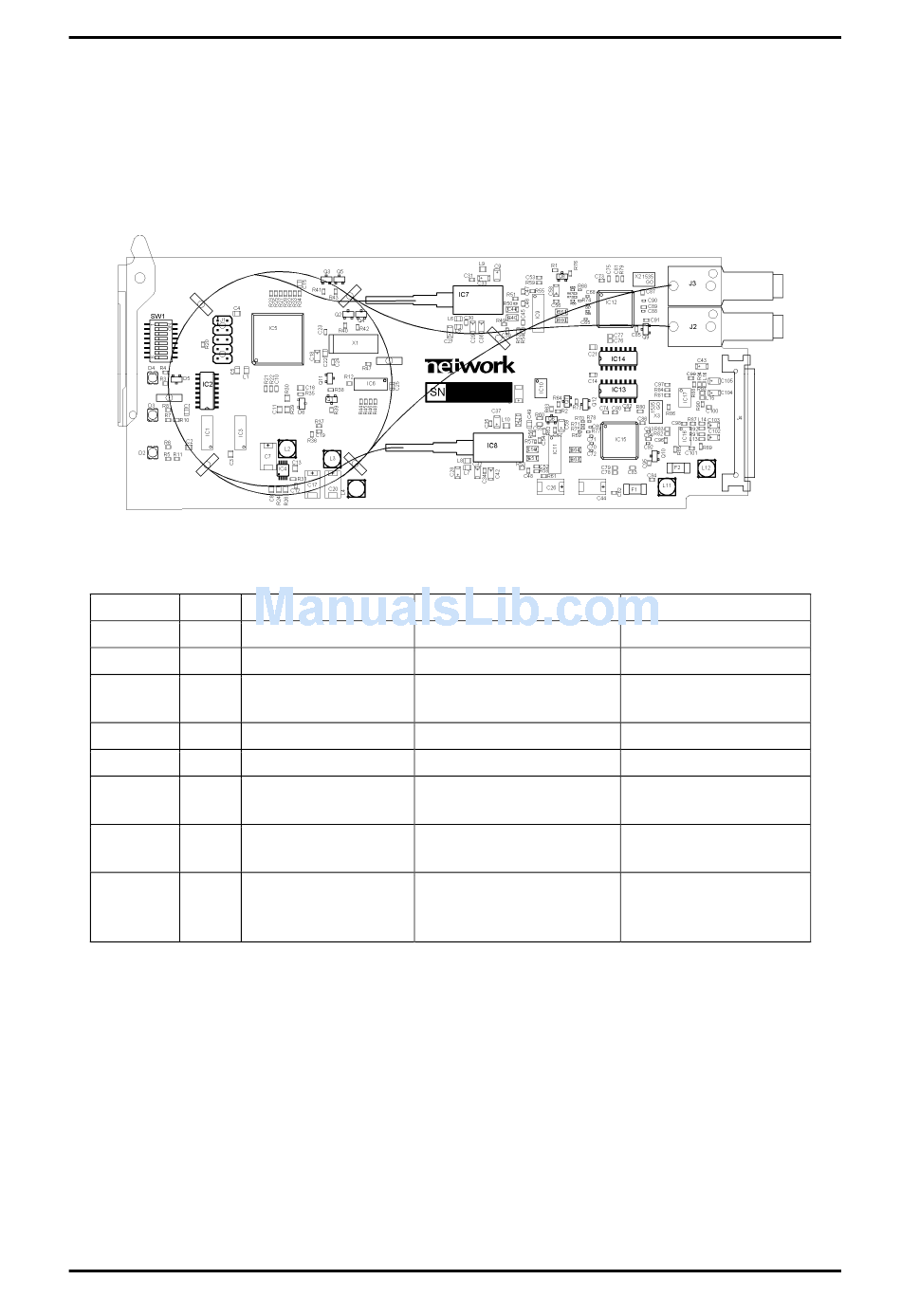

Figure 2 - HD-OE-2 board layout
support
support
control. Config. with
DIP switch
Reclocker 1 bypass
Input 2 selected
SDI 177Mbps Reclocker
support
Reclocker 2 bypass
Input 1 selected
SDI 177Mbps Reclocker
support
Change over
functionality
GYDA control. Config.
with GYDA
Rev. 1
Comment
Reclocker mode
Output 1
Select ASI or
177Mbps support
Reclocker mode
Output 2
Select ASI or
177Mbps support
Select configuration
from GYDA
