3 Format configuration

The HD-EO-2 can support a number of different broadcast formats. The
correct configuration can either be set with a DIP switch or with the GYDA
Control System. The layout of HD-EO-2 is shown in the drawing below with
the DIP switch to the upper left position.
DIP switch configuration must be set according to the table below:
Switch # Label Function, DIP = ON Function, DIP = OFF
1 RCL1 Reclocker 1 ON
2 EQ1 Automatic Cable
3 ASI1 DVB-ASI Reclocker
4 RCL2 Reclocker 2 ON
5 EQ2 Automatic Cable
6 ASI2 DVB-ASI Reclocker
7 SWP Normal operation
8 OVR Override GYDA
All DIP switches are off when pointing towards the release handle.
When a "Broadcast format support" is selected, all clock rates for HD-SDI, SDI
and DVB-ASI are automatically configured by the module itself.

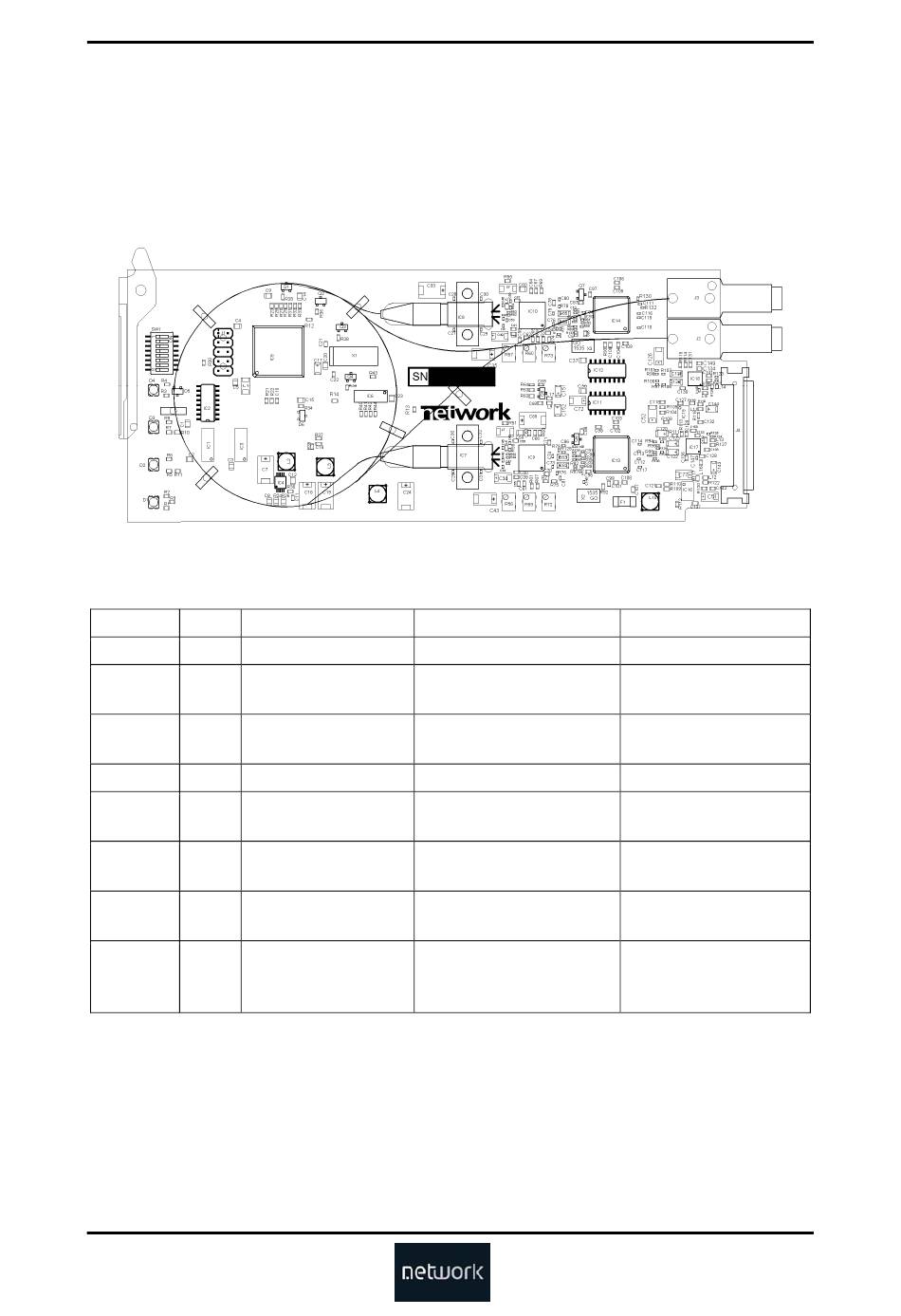

Figure 2: HD-EO-2 board layout.
Equalizer ON
support
Equalizer ON
support
control. Config.
with DIP switch
Reclocker 1 bypass
Automatic Cable
Equalizer OFF
SDI 177Mbps Reclocker
support
Reclocker 2 bypass
Automatic Cable
Equalizer OFF
SDI 177Mbps Reclocker
support
Swap input 1 and input
2
GYDA control. Config.
with GYDA
Rev. 3
Comment
Reclocker mode
Cable equalizer mode
Select ASI or 177Mbps
support
Reclocker mode
Cable equalizer mode
Select ASI or 177Mbps
support
Select configuration
from GYDA
