Wall & VESA Mounting
Wall Mounting
The QDSP-2030 comes with 2 L-brackets for wall mounting. Secure the L-brackets
to the each side of the chassis using the total 4 screws.

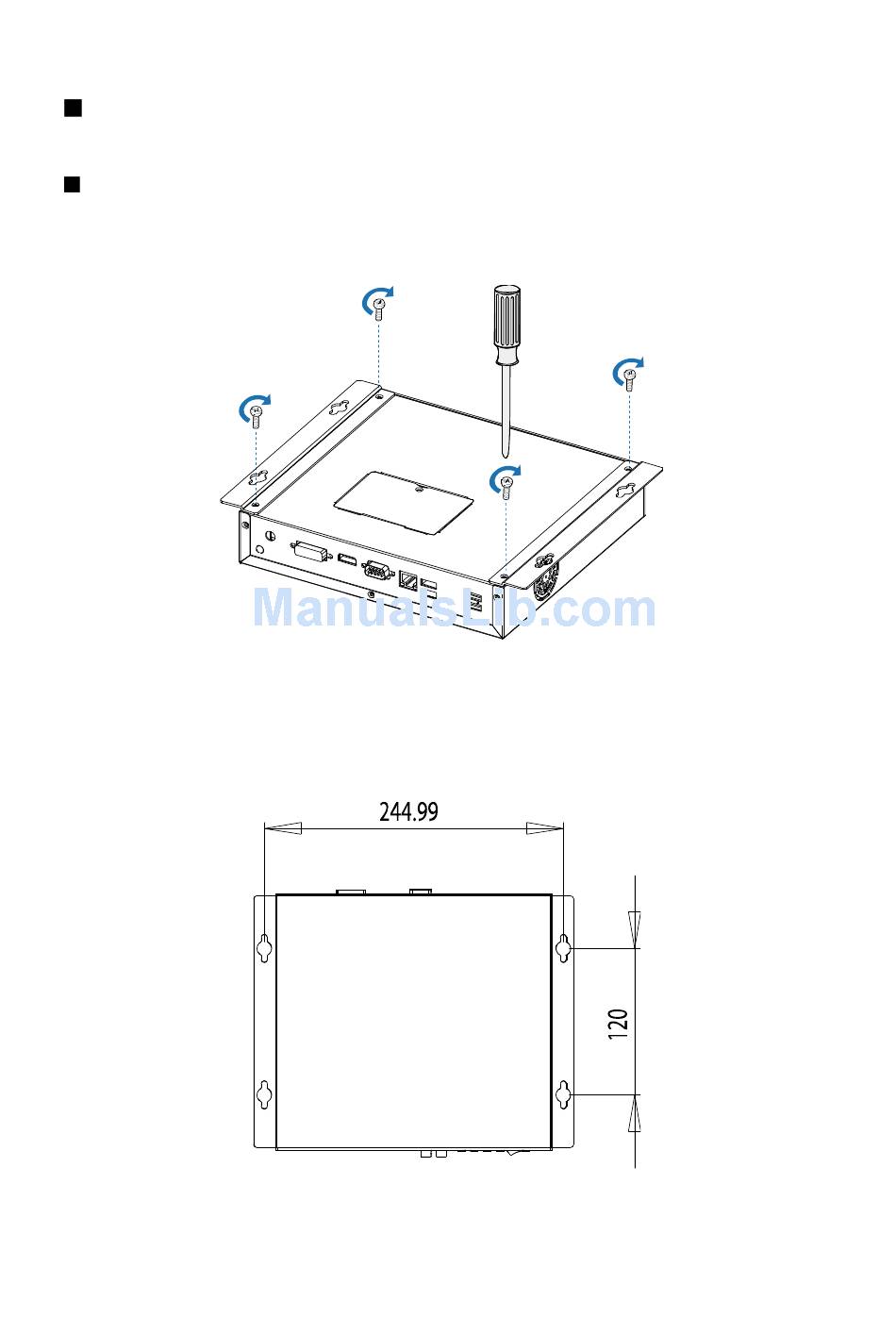

Figure 10 Secure the L-brackets for wall mounting
Refer to figure below for wall mount holes spacing. The shape of the screw holes
allows the QDSP-2030 to be mounted and provides for easy removal of the chassis
for repair of maintenance. Use four standard M4 screws to mount the QDSP-2030.
Figure 11 Wall mount holes spacing
25
QDSP-2030 User's Manual
