Memory Module Installation
Remove the chassis bottom cover
Loosen one flathead screws and remove the chassis bottom cover. You'll see the
SO-DIMM socket of the motherboard.
Carefully follow the steps below in order to install the DIMMs:
1.
To avoid generating static electricity and damaging the SO-DIMM, ground
yourself by touching a grounded metal surface or use a ground strap before you
touch the SO-DIMM.
2.
Do not touch the connectors of the SO-DIMM. Dirt or other residue may cause a
malfunction.
3.
Hold the SO-DIMM with its notch aligned with the memory socket of the board
and insert it at a 30-degree angle into the socket.

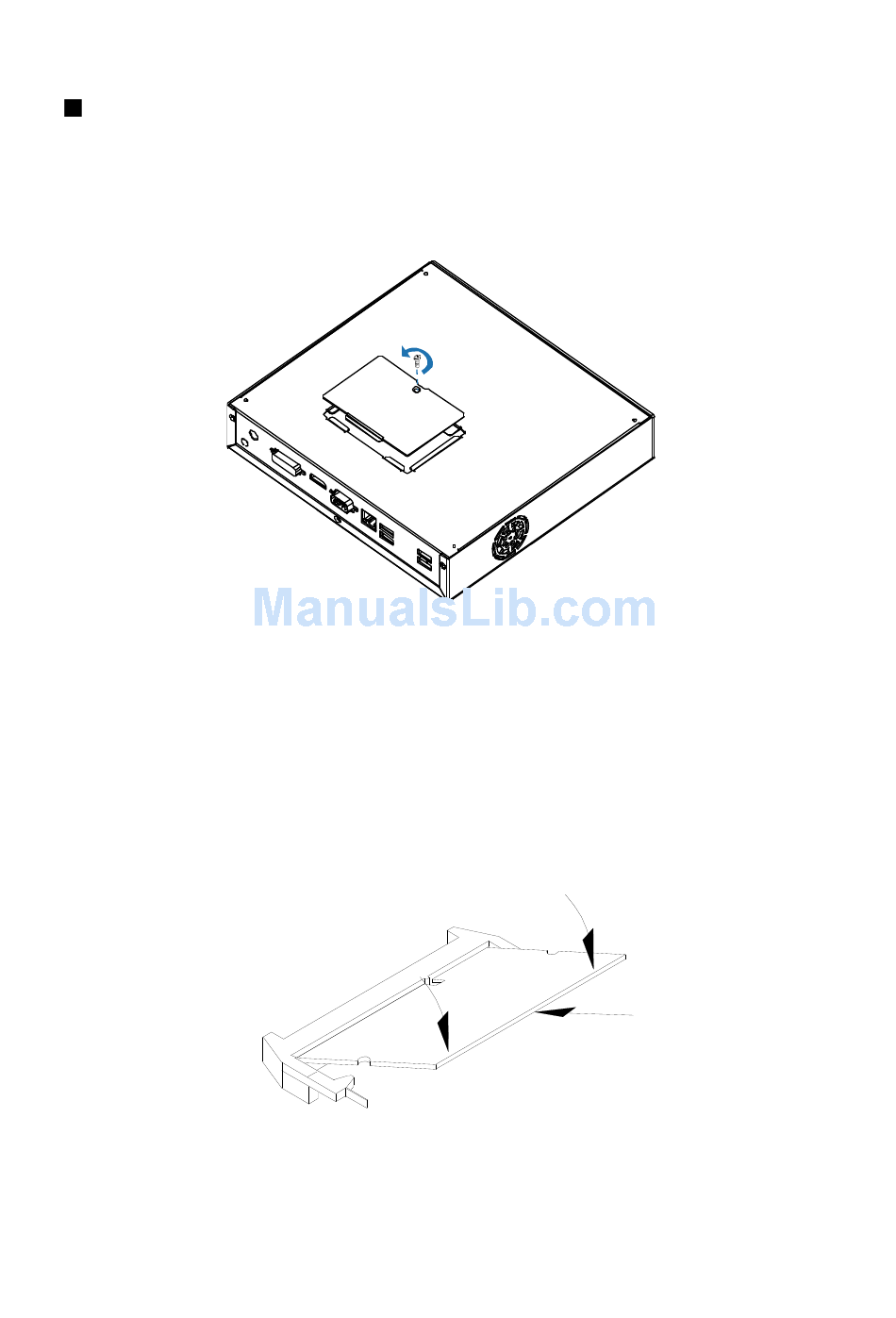

Figure 7 Align the SO-DIMM Memory Module with the onboard socket
4.
Fully insert the module into the socket until a "click" is heard.
5.
Press down on the SO-DIMM so that the tabs of the socket lock on both sides
of the module
QDSP-2030 User's Manual
23
