Chapter 2

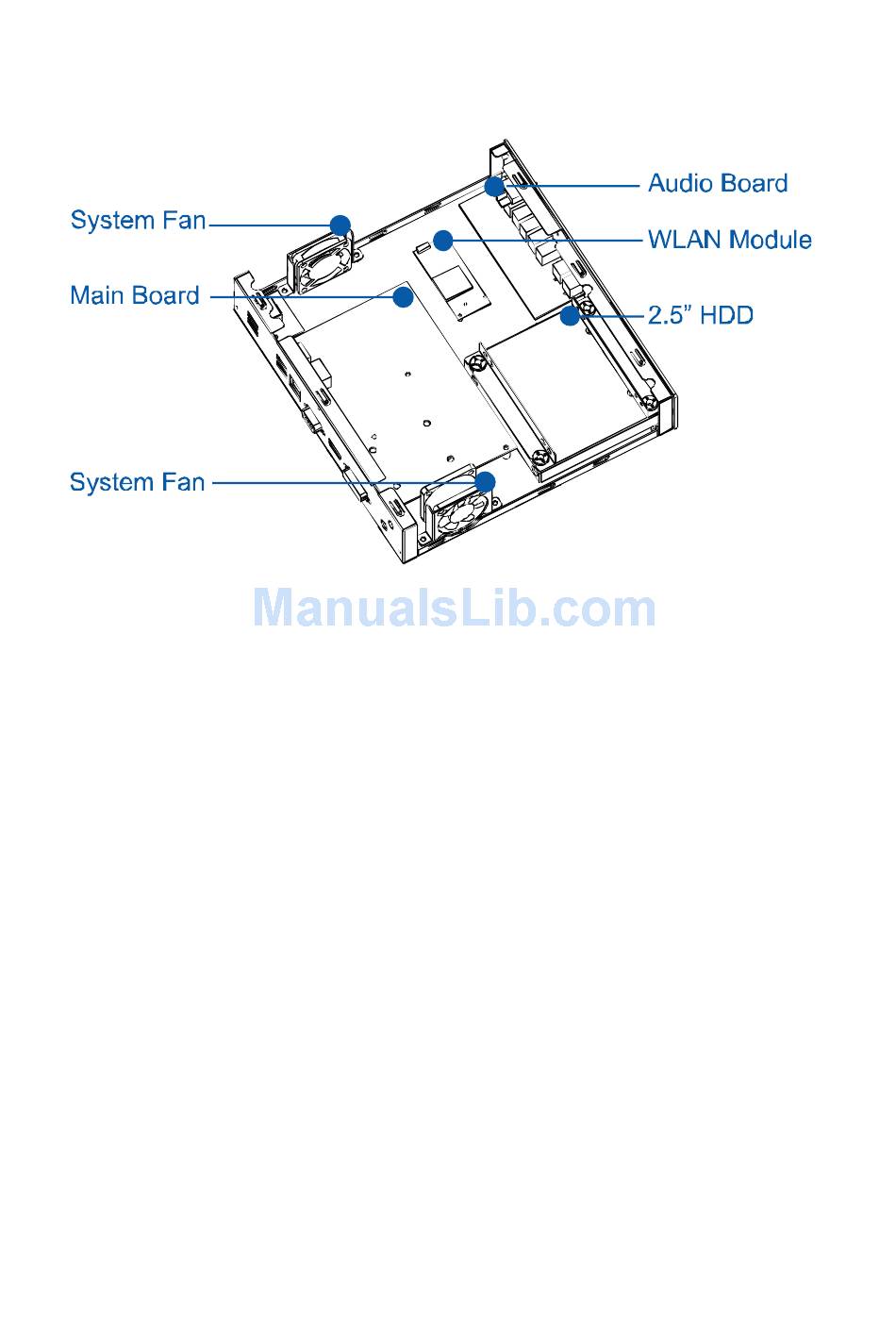

See figure below for the locations of the internal components of the system.

Figure 3 Mechanical Layout - Internal Components

19
QDSP-2030 User's Manual
