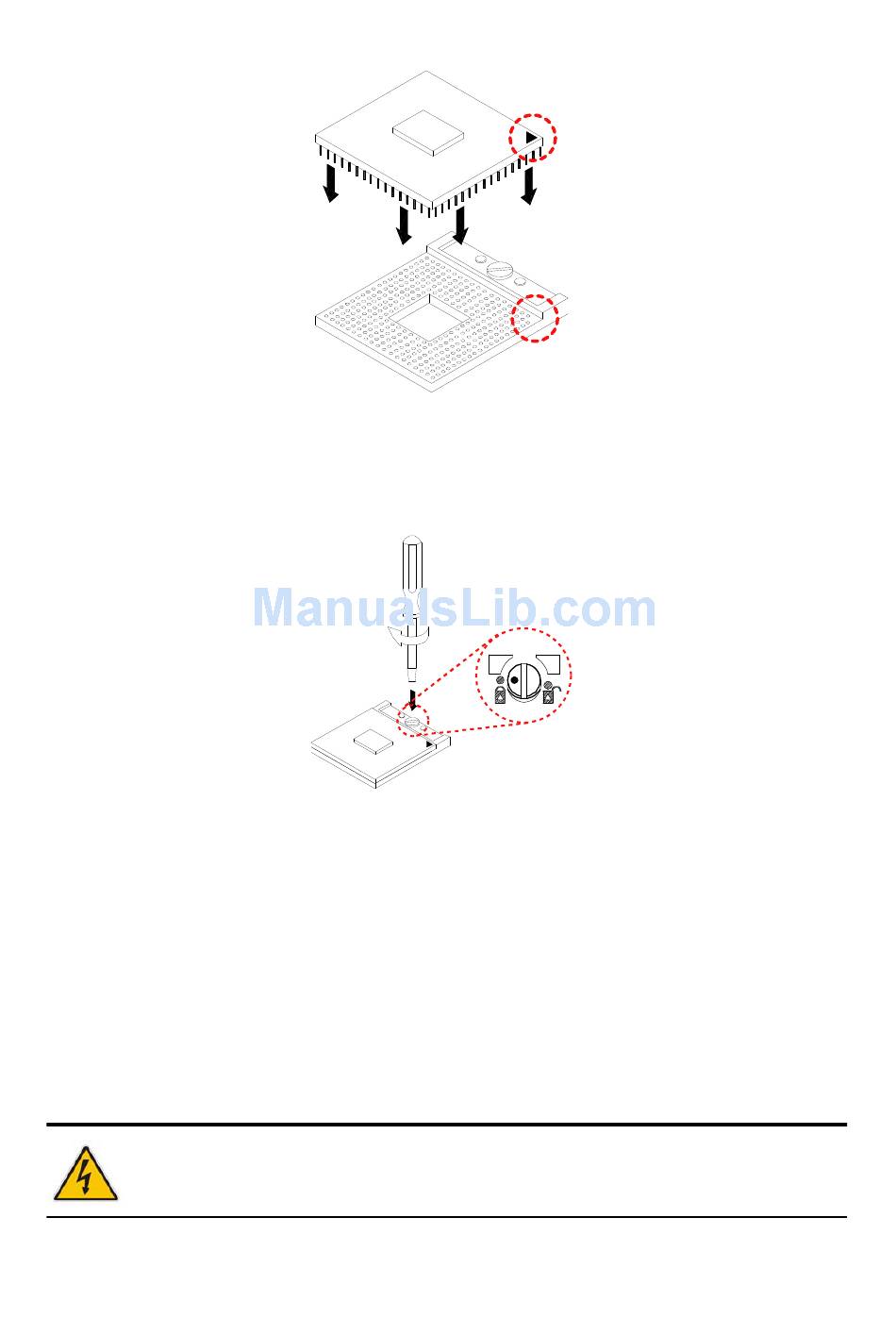

Figure 5 CPU alignment in Micro-FCPGA Socket (Socket P)

4. While gently holding the processor down with your finger, secure the processor
in the socket with a screwdriver by turning the socket actuator to the closed
position:
Removing the CPU
To remove the CPU, reverse the installation steps.
1. Before removing the CPU, turn off the system power and wait for about 20
minutes until the heat radiation plate of the cooling fan and the CPU cools
down.
2. To remove the CPU, follow Step 2 of Installing the CPU above.
3. Remove the CPU by grasping the substrate edges only with thumb and
forefinger and lifting it out with a purely vertical motion.
The CPU and the heat-sink may be hot and could cause burns.
QDSP-2030 User's Manual

Figure 6 Secure the processor in the socket

WARNING
21
Chapter 2
