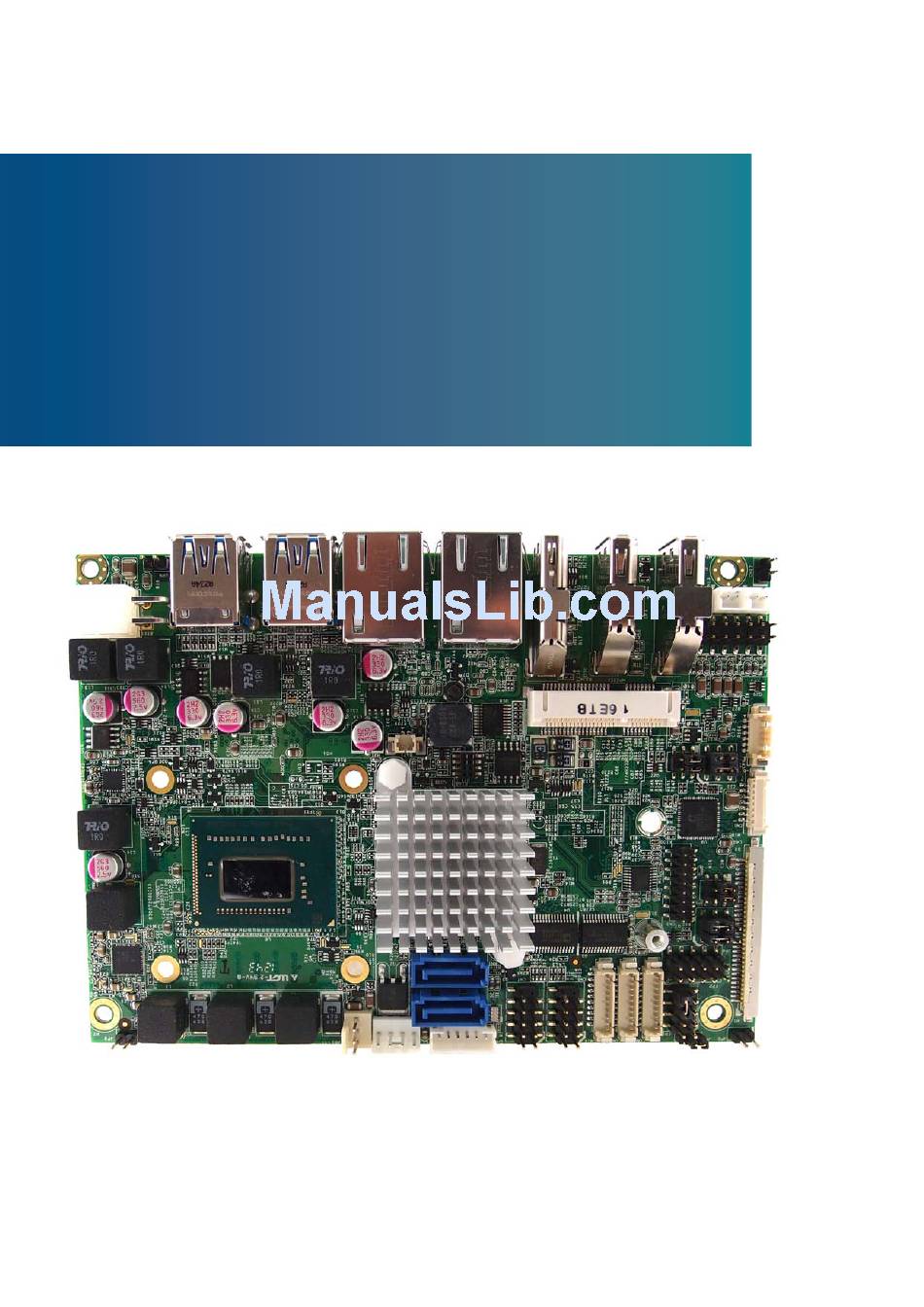

- Page 1 KEEX-7100 Series ® Intel Embedded Compact Extended Form Factor ® with Intel Celeron / Core i processor User’s Guide KEEX-7100 Series User’s Manual...
- Page 2 © 2013 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
Memory Module Installation ............... 36 Chapter 4 AMI BIOS Setup ..................38 Overview ....................38 Main Menu ....................39 Advanced Menu ..................40 Boot Menu ....................52 Security Menu .................... 53 Save & Exit Menu ..................54 KEEX-7100 Series User’s Manual... - Page 4 Content Chapter 5 Driver Installation ................. 56 Appendix A DIO (Digital I/O) Sample Code ............57 Appendix B WatchDog Timer Sample Code ............59 KEEX-7100 Series User’s Manual...
-
Page 5: Figures
Figure 4 Jumper and Connector Locations ..........21 Figure 5 Rear Panel IO ................24 Figure 6 Align the SO-DIMM Memory Module with the onboard socket ..36 Figure 7 Press down on the SO-DIMM Memory Module to lock it in place 37 KEEX-7100 Series User’s Manual... -
Page 6: Tables
Tables Tables Table 1 KEEX-7100 Series Specification ........... 18 Table 2 Jumper List ..................22 Table 3 JP1 AT / ATX Mode Selection ............22 Table 4 JP2 RTC Reset Selection .............. 22 Table 5 JP3 SRTC Reset Selection ............22 Table 6 JP4 Panel &... - Page 7 Table 62 Advanced Menu –Super IO Configuration – Serial Port 2 Configuration ................50 Table 63 Advanced Menu –H/W Monitor ............ 51 Table 64 Boot Menu ................... 52 Table 65 Security Menu ................53 Table 66 Save & Exit Menu ................ 54 KEEX-7100 Series User’s Manual...
-
Page 8: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. WARNING High voltages are present inside the chassis when the unit’s power cord is plugged into an electrical outlet. -
Page 9: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. - Page 10 Handle components and boards with care. Don’t touch the components or contacts on a board. Hold a board by its edges or by its metal mounting bracket. Do not handle or store system boards near strong electrostatic, electromagnetic, magnetic, or radioactive fields. KEEX-7100 Series User’s Manual...
-
Page 11: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 12: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 13: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. - Page 14 Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power. KEEX-7100 Series User’s Manual...
- Page 15 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. KEEX-7100 Series User’s Manual...
-
Page 16: Chapter 1 Introduction
Chapter 1 Chapter 1 Introduction Overview The KEEX-7100 Series is an ECX Form Factor embedded single board computer ® (SBC) that equips Intel Celeron /Core i processor with the high integration of the ® Intel QM77 / HM76 chipset. Featured are DDR3 1333/1600 SO-DIMM, 2x Dual Channel 24-bit LVDS, HDMI, 2x DP, VGA, 2x Gigabit Ethernet, 2x SATA, mini PCIe slot, 4x USB 3.0, 4x USB 2.0, 2x COM ports, HD audio. -
Page 17: Product Specifications
Programable WDT to generate System reset event Watchdog Pather Point intergrated RTC Real Time Clock 1x +12VDC Power Input 1x +12VDC & +5VDC HDD Power output Power ATX/ AT Mode Supported KEEX-7100 Series User’s Manual... -
Page 18: System Block Diagram
Chapter 1 0ºC – +60ºC Operation Temp. CE, FCC Class A Certifications Table 1 KEEX-7100 Series Specification System Block Diagram Figure 1 Block Diagram KEEX-7100 Series User’s Manual... -
Page 19: Mechanical Dimensions
Chapter 1 Mechanical Dimensions ø ø : 3.5mm : 3.1mm Figure 2 Mechanical Dimensions KEEX-7100 Series User’s Manual... -
Page 20: Chapter 2 Hardware Settings
No.1. To move a jumper from one position to another, use needle-nose pliers or tweezers to pull the pin cap off the pins and move it to the desired position. KEEX-7100 Series User’s Manual... -
Page 21: Jumper Settings And Pin Definitions
Chapter 2 Jumper Settings and Pin Definitions For jumper and connector locations, please refer to the diagrams below. Figure 4 Jumper and Connector Locations KEEX-7100 Series User’s Manual... -
Page 22: Jumper Settings
Clear ME Registers Pitch:2.54mm [YIMTEX 3321*02SAGR(6T)] Table 6 JP4 Panel & Backlight Power Selection for LVDS2 Jumper Setting Status Backlight Power = +12V Backlight Power = +5V Panel Power = +3.3V Panel Power = +5V P-2.54mm [YIMTEX 3362*03SAGR] KEEX-7100 Series User’s Manual... -
Page 23: Table 7 Jp5 Backlight Power Enable Selection For Lvds2
1-2 Short ME F/W Disabled. Pitch:2.54mm [YIMTEX 3321*02SAGR(6T)] Table 11 JP9 USB Power Selection Jumper Status 1-2 Open USB power will be cut off in S4 & S5 state. 1-2 Short USB power is always supply. Pitch:2.54mm KEEX-7100 Series User’s Manual... -
Page 24: Rear Panel Pin Assignments
HDMI Connector Table 13 CN4 USB3.0 Port-0,1 Type-A Connector Signal Name Signal Name +USBA_VCC +USBB_VCC USBA_D- USBB_D- USBA_D- USBB_D- USBA_RX- USBB_RX- USBA_RX+ USBB_RX+ USBA_TX- USBB_TX- USBA_TX+ USBB_TX+ *：The power source of +USBVCC can be selected by JP5. KEEX-7100 Series User’s Manual... -
Page 25: Table 14 Cn5 Usb3.0 Port-2,3 Type-A Connector
Table 16 CN15 GbE LAN2 RJ-45 Connector Signal Name Signal Name TX1+ TX3- TX1- TX2- TX2+ TX4+ TX3+ TX4- Table 17 DP1 DisplayPort Connector Signal Signal TX0+ TX3- TX0- TX1+ AUX+ TX1- TX2+ AUX- TX2- TX3+ [WIN WIN WDPE-20F3L1BU3] KEEX-7100 Series User’s Manual... -
Page 26: Table 18 Dp2 Displayport Connector
Table 19 HDMI1 HDMI Connector Signal TMDS Data2+ Ground TMDS Data2– TMDS Data1+ Ground TMDS Data1– TMDS Data0+ Ground TMDS Data0– TMDS Clock+ Ground TMDS Clock– Reserved Reserved DDC_CLK DDC_DATA Ground +5 V Power Hot Plug Detect HOMETOM HD19B36BEA077 KEEX-7100 Series User’s Manual... -
Page 27: Main Board Pin Assignments
Serial ATA Port 1 Connector Table 21 ATX1 +12V Power Input Connector Signal Name +12V +12V Pitch:4.2mm hollow PIN [YIMTEX 576MWA2*02STR] Table 22 BAT1 CR2032 Battery Power Input Wafer Signal Name +VBAT Pitch:P-1.25mm WAFER [Pinrex 712-73-02TWR0] KEEX-7100 Series User’s Manual... -
Page 28: Table 23 Com1 Rs-232/422/485 Port 1 Wafer
BL_ADJ_PWM * BL_ADJ_VOL * +5V / +12V ** +5V / +12V ** BL_EN*** Pitch:1.25mm [YIMTEX 501MW1X07MTR-1R] *：BL_ADJ can be setting in BIOS setup. **：Backlight Power can be selected by JP7. ***：BL_EN can be selected by JP6. KEEX-7100 Series User’s Manual... -
Page 29: Table 26 Cn2 Backlight Power Output Wafer For Lvds 2
Table 27 CN3 VGA Output Header Signal Signal DDC_DATA HSYNC VSYNC DDC_CLK Pitch: 2.0mm Table 28 CN6 USB2.0 Port 8, 9 Pin Header Signal Name Signal Name +USBVCC +USBVCC USB_A- USB_B- USB_A+ USB_B+ Pitch:2.54mm [YIMTEX 3362*05SANGR-09] KEEX-7100 Series User’s Manual... -
Page 30: Table 29 Cn7 Usb2.0 Port 10, 11 Pin Header
Table 31 CN9 SIM Interface Wafer for MPCIE 1 Signal Name UIM_PWR UIM_DATA UIM_RESET UIM_VPP UIM_CLK Pitch:1.25mm [Pinrex 712-73-06TWB0] Table 32 CN10 Audio Pin Header Signal Name Signal Name MIC_IN_L MIC_IN_R MIC_IN_JD LINE_IN_L LINE_IN_R LINE_IN_JD LINE_OUT_L LINE_OUT_R LINE_OUT_JD Pitch:2.54mm [PINREX 212-92-06GB01] KEEX-7100 Series User’s Manual... -
Page 31: Table 33 Cn11 Sata Hdd Power Output Wafer
503PW1*02STR & 503PW1*02ST-1R] Table 36 CN16 Digital Input / Output Wafer Signal Name Digital Input 0 Digital Output 0 Digital Input 1 Digital Output 1 Digital Input 2 Digital Output 2 Digital Input 3 Digital Output 3 Pitch:1.25mm KEEX-7100 Series User’s Manual... -
Page 32: Table 37 Cn17 S/Pdif Output Pin Header
Note：Internal Buzzer is enabled when Pin6-8 is shorted. Table 42 FP2 Front Panel 2 Pin Header Signal Signal Power LED + Power Button + PWRBTN Power Button - PLED Power LED - Keyboard Lock SMBus Data KLOCK SMBus Clock Pitch:2.54mm [YIMTEX 3362*05SANGR] KEEX-7100 Series User’s Manual... -
Page 33: Table 43 Lvds1 Primary 24-Bit, 2-Channel Lvds Panel Connector
LVDS_BCLK+ LVDS_B3-/NC LVDS_ACLK- LVDS_B3+/NC LVDS_ACLK+ LVDS_A3-/NC DDC_DATA LVDS_A3+/NC VDDEN LVDS_B0- DDC_CLK LVDS_B0+ +3.3V / +5V * +3.3V / +5V * LVDS_B1- +3.3V / +5V * Pitch:1.0mm [JAE FI-X30SSL-HF] *： Panel Power can be selected by JP4. KEEX-7100 Series User’s Manual... -
Page 34: Table 45 Mpcie1 Mini-Pcie Express V 1.2 Socket
Ground +1.5V Ground SMB_CLK PETn0 SMB_DATA PETp0 Ground Ground USB_D- Ground USB_D+ +3.3VSB Ground +3.3VSB LED_WWAN# Ground LED_WLAN# Reserved LED_WPAN# Reserved +1.5V Reserved Ground Reserved +3.3VSB Height:9.9mm [FOXCONN AS0B226-S99Q-7H] *：These pins are connected to CN9 directly. KEEX-7100 Series User’s Manual... -
Page 35: Table 46 Sata1 Serial Ata Port 0 Connector
Chapter 2 Table 46 SATA1 Serial ATA Port 0 Connector Signal Name BLUE [WIN WIN WATM-07ABN4A2B8UW4] Table 47 SATA2 Serial ATA Port 1 Connector Signal Name BLUE [WIN WIN WATM-07ABN4A2B8UW4] KEEX-7100 Series User’s Manual... -
Page 36: Chapter 3 System Installation
Hold the SO-DIMM with its notch aligned with the memory socket of the board and insert it at a 30-degree angle into the socket. Figure 6 Align the SO-DIMM Memory Module with the onboard socket KEEX-7100 Series User’s Manual... -
Page 37: Figure 7 Press Down On The So-Dimm Memory Module To Lock It In Place
SO-DIMM. Lift it out of the socket. Make sure you store the SO-DIMM in an anti-static bag. The socket must be populated with memory modules of the same size and manufacturer. KEEX-7100 Series User’s Manual... -
Page 38: Chapter 4 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 39: Main Menu
F2: Previous Values Total Size 4096 MB (DDR3) F3: Optimized Defaults Frequency 1333 MHz F4 Save & Exit System date [Fri 03/29/2013] ESC Exit System time [10:03:19] Access Level Administrator Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc. KEEX-7100 Series User’s Manual... -
Page 40: Advanced Menu
Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled KEEX-7100 Series User’s Manual... -
Page 41: Table 50 Advanced Menu - Display Configuration
384M, 416M, 448M, 480M, 512M, 1024M DVMT Total Gfx Mem Options: 128M, 256M, MAX IGFX – Boot Type Options: VBIOS Default, CRT,DP1, LVDS1, HDMI, DP 2 Active LVDS 1 Options: Disabled, Enabled DisplayPort 2 Switch Options: LVDS2, DP2 KEEX-7100 Series User’s Manual... -
Page 42: Table 51 Advanced Menu -Power Management Configuration
Resume From S3 By PS/2 Mouse Options: Disabled, Enabled Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled EUP Power Saving Mode Options: Disabled, Enabled Watchdog Timer Configuration WDT Function [Disabled] ■ Options: Disabled, Enabled KEEX-7100 Series User’s Manual... -
Page 43: Table 52 Advanced Menu -Cpu Advanced Configuration
Options: Disabled, Enabled Hyper Threading Options: Disabled, Enabled VT-d Options: Disabled, Enabled Active Processor Cores Options: All, 1, Limit CPUID Maximum Options: Disabled, Enabled Execute Disable Bit Options: Disabled, Enabled Intel ® Virtualization Tech Options: Disabled, Enabled KEEX-7100 Series User’s Manual... -
Page 44: Table 53 Advanced Menu -Amt Configuration
+- Change Opt. F1: General Help F2: Previous Values Current Status Information F3: Optimized Defaults SUPPORT TURNED OFF F4 Save & Exit ESC Exit Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc. Security Device Support Options: Disabled, Enabled KEEX-7100 Series User’s Manual... -
Page 45: Table 55 Advanced Menu -Sata Configuration
SATA Controller(s) Options: Disabled, Enabled SATA Mode Selection Options: IDE, AHCI, RAID SATA Controller Speed Options: Default, Gen 1, Gen 2, Gen 3 Port Options: Disabled, Enabled SATA Device Type Options: Hard Disk Driver, Solid State Driver KEEX-7100 Series User’s Manual... -
Page 46: Table 56 Advanced Menu - Intel Rapid Start Technology
+- Change Opt. F1: General Help Secure Mode Extensions (SMX) [Enabled] F2: Previous Values Intel TXT (LT) Support [Disabled] F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc. KEEX-7100 Series User’s Manual... -
Page 47: Table 58 Advanced Menu -Usb Configuration
USB 3.0 Support Options: Disabled, Enabled XHCI hand-off Options: Disabled, Enabled EHCI hand-off Options: Disabled, Enabled USB Mass Storage Driver Support Options: Disabled, Enabled XHCI Pre-Boot Driver Options: Disabled, Enabled XHCI Mode Options: Auto, Smart Auto, Disabled, Enabled KEEX-7100 Series User’s Manual... -
Page 48: Table 59 Advanced Menu -Dio Configuration
F1: General Help DI_1 F2: Previous Values DI_2 F3: Optimized Defaults DI_3 F4 Save & Exit DI_4 ESC Exit DO_1 DO_2 DO_3 DO_4 Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc. User Configuration Options: Disabled, Enabled KEEX-7100 Series User’s Manual... -
Page 49: Table 60 Advanced Menu - Super Io Configuration
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port Type Options: RS232, RS422, RS485 KEEX-7100 Series User’s Manual... -
Page 50: Table 62 Advanced Menu -Super Io Configuration - Serial Port
IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; KEEX-7100 Series User’s Manual... -
Page 51: Table 63 Advanced Menu -H/W Monitor
Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc. CPU Warning Temperature Options: Disabled, 80 C, 85 C, 90 C, 95 C CPU FAN Configuration FAN Setting [Manual Mode] Options: Manual Mode, Auto Mode Manual Duty 255 KEEX-7100 Series User’s Manual... -
Page 52: Boot Menu
[Disabled] F4 Save & Exit ESC Exit Boot Option Priorities Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc. Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off UEFI Boot Options: Disabled, Enabled KEEX-7100 Series User’s Manual... -
Page 53: Security Menu
F2: Previous Values The password length must be in the following range: F3: Optimized Defaults Minimum Length F4 Save & Exit Maximum length ESC Exit Administrator Password User Password Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc. KEEX-7100 Series User’s Manual... -
Page 54: Save & Exit Menu
Save Options Enter: Select Save Changes +- Change Opt. Discard Changes F1: General Help Restore Defaults F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc. KEEX-7100 Series User’s Manual... - Page 55 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. KEEX-7100 Series User’s Manual...
-
Page 56: Chapter 5 Driver Installation
You can download the drivers for the KEEX-7100 from the Quanmax website www.quanmax.com and install as instructed there. For other operating systems, please contact Quanmax. - Page 57 //Clear DO_1~4 RetVal=inp(0x539);//IO Port: 0x539 RetVal=(RetVal&0x8F);//DO_1 is bit 4 //DO_2 is bit 5 //DO_3 is bit 6 outp(0x539,RetVal); RetVal=inp(0x53B);//IO Port: 0x53B RetVal=(RetVal&0xFE);//DO_4 is bit 0 outp(0x53B,RetVal); system("pause"); //Setting DO_1~4 RetVal=inp(0x539);//IO Port: 0x539 RetVal=(RetVal|0x70);//DO_1 is bit 4 KEEX-7100 Series User’s Manual...
- Page 58 RetVal=inp(0x53B);//IO Port: 0x53B RetVal=(RetVal|0x01);//DO_4 is bit 0 outp(0x53B,RetVal); system("pause"); //Reading DI_1~4 RetVal=inp(0x50C);//IO Port: 0x50C RetVal=(RetVal&0x3C);//DI_1 is bit 2 //DI_2 is bit 3 //DI_3 is bit 4 //DI_4 is bit 5 printf("DI_= %d\n",RetVal); system("pause"); return 0; KEEX-7100 Series User’s Manual...
- Page 59 //(0xF5 bit3(0: 1sec, 1: 60 sec) of watchdog timer by setting this bit) outp(0x2E,0xF5); value=inp(0x2F); outp(0x2F,(value & 0xF7));//set unit sec. //Set Timer Value(0xF6 Time of watchdog timer) outp(0x2E,0xF6); outp(0x2F,0x14);//set to 20 sec (0x14) //Enable WDT outp(0x2E,0xF5); value=inp(0x2F); outp(0x2F,(value | 0x30));// KEEX-7100 Series User’s Manual...
- Page 60 Appendix B outp(0x2E,0xF0); outp(0x2F,0x81);//bit7 WDTRST# output is enabled return 0; KEEX-7100 Series User’s Manual...
