- Page 1 QBOX-207T Wide Temperature Fanless BOX PC with Intel® BayTrail SoC Processor, Atom™ E3845 User’s Guide...
-
Page 2: Table Of Contents
Chapter 3 AMI BIOS Setup ..................23 Overview ..................... 23 Main Menu ..................24 Advanced Menu .................. 25 Boot Menu ..................37 Security Menu ..................38 Save & Exit Menu ................38 Chapter 4 Driver Installation .................. 40 QBOX-207T User’s Manual... -
Page 3: Figures & Tables
Figure 9 VESA mounting (1) ..............20 Figure 10 VESA mounting (2) ..............21 Figure 11 VESA mount ................22 Table 1 QBOX-207T product specifications ..........12 Table 2 BIOS Main Menu ................24 Table 3 Advanced Menu ................25 Table 4 Advanced Menu –... -
Page 4: Safety Instructions
Turn off system power, turn off the power supply, and then disconnect the power cord from its source before removing the chassis cover. Turning off the system power switch does not remove power to components. QBOX-207T User’s Manual... -
Page 5: When Working Inside A Computer
ESD procedure, which can include wrist straps and smocks, when servicing equipment. You can also take the following steps to prevent damage from electrostatic discharge (ESD): When unpacking a static-sensitive component from its shipping carton, do not QBOX-207T User’s Manual... -
Page 6: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the QBOX-2072 has the following voltage ratings: Input: 100-240 VAC, 50-60 Hz Output: 60W, +12VDC/5.0A output QBOX-207T User’s Manual... -
Page 7: Preface
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the QBOX-207T User’s Manual... -
Page 8: Maintaining Your Computer
However, if a system is located in an unusually humid location, a dehumidifier can be used to maintain the humidity within an acceptable range. Refer to the “Specifications” section of this user’s guide for QBOX-207T User’s Manual... - Page 9 UPS system. UPS systems range in price from a few hundred dollars to several thousand dollars, with the more expensive unit s allowing you to run larger systems for a QBOX-207T User’s Manual...
- Page 10 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QBOX-207T User’s Manual...
-
Page 11: Chapter 1 Introduction

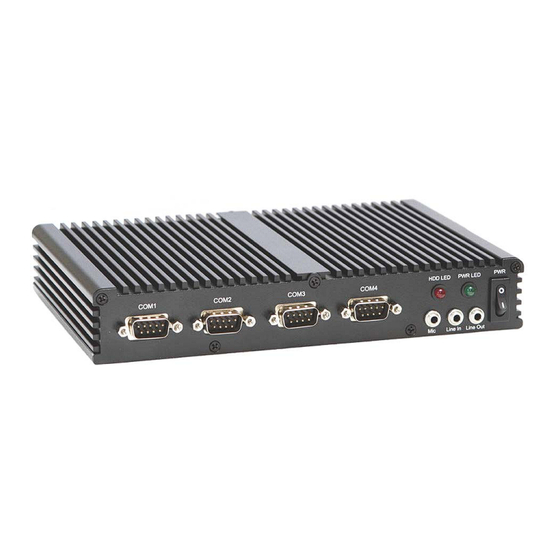

Chapter 1 Introduction Overview The QBOX-207T is a wide temperature fanless BOX PC is ideal for space critical applications. This embedded hardware platform is designed with Intel® BayTrail SoC Processor, Atom™ E3845 which provides with excellent performance. The system is supported with DDR3L SO-DIMM up to 8GB. Featured are 1x 2.5"... -
Page 12: Table 1 Qbox-207T Product Specifications
Temperature monitoring Watchdog Timer Programmable WDT to generate System reset event Option Intersil SLB9635 for TPM support Dimensions 210 x 35 x 135mm (WxHxD) Mounting VESA mount Certifications CE, FCC Class A Table 1 QBOX-207T product specifications QBOX-207T User’s Manual... -
Page 13: System Tour
The microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings. Line-IN The Line-in jack is designed to take input from a higher-powered sound source. COM 1~4 D-Sub 9 pin connector QBOX-207T User’s Manual... -
Page 14: Figure 2 Rear Panel
D-Sub 15 pin VGA connector for display output HDMI HDMI connector for display output Wireless LAN Antenna (Optional) The reserved holes for wireless antenna connections. Digital I/O This interface used to connect digital signals for input and output purposes. QBOX-207T User’s Manual... -
Page 15: Chapter 2 Getting Started
Chapter 2 Chapter 2 Getting Started Setting up your PC Connecting the monitor Connect the VGA/ HDMI cable from your display to the VGA/ HDMI port. VGA HDMI Figure 3 VGA/ HDMI QBOX-207T User’s Manual... -
Page 16: Figure 4 Connecting Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your QBOX-207T does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. USB 2.0 USB 3.0 Figure 4 Connecting USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 17: Figure 5 Rj45 Connector
Figure 5 RJ45 connector COM ports COM ports with the pin definitions. COM3 COM 1 COM4 COM 2 COM1~2 RS-232 / 422 / 485 Port DB-9 Half Duplex Full Duplex RS-232 RS-422 RS-485 RS-485 DATA- DATA+ QBOX-207T User’s Manual... -
Page 18: Figure 6 Com Ports
DIO port with the pin definitions. Digital Input / Output D-SUB 9P Signal Name Digital Input 0 Digital Output 0 Digital Input 1 Digital Output 1 Digital Input 2 Digital Output 2 Digital Input 3 Digital Output 3 Figure 7 DIO port QBOX-207T User’s Manual... -
Page 19: Figure 8 Turning On The System
Chapter 2 Turning on the system Connect the power adapter cable to the DC jack (DC IN) of the QBOX-207T Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system... -
Page 20: Mounting Your Pc To A Monitor
Mounting your PC to a monitor Secure the VESA mounting kit to your monitor with four screws. Figure 9 VESA mounting (1) NOTE To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. QBOX-207T User’s Manual... -
Page 21: Figure 10 Vesa Mounting (2)
Chapter 2 Place the QBOX-207T onto the monitor and secure it with the hand screw knob properly on VESA mount kit as shown below. Figure 10 VESA mounting (2) QBOX-207T User’s Manual... -
Page 22: Vesa Mount Drawing
Chapter 2 ■ VESA Mount Drawing Figure 11 VESA mount QBOX-207T User’s Manual... -
Page 23: Chapter 3 Ami Bios Setup
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings. QBOX-207T User’s Manual... -
Page 24: Main Menu
+- Change Opt. Frequency 1333 MHz F1: General Help System date [Wed 05/26/2014] F2: Previous Values System time [13:23:12] F3: Optimized Defaults Access Level Administrator F4 Save & Exit ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. QBOX-207T User’s Manual... -
Page 25: Advanced Menu
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled QBOX-207T User’s Manual... -
Page 26: Table 4 Advanced Menu – Display Configuration
Options: 128MB, 256MB, 512MB DVMT Pre-Allocated Options:64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, 512M DVMT Total Gfx Mem Options: 128M, 256M, MAX Primary IGFX Boot Display Options: VBIOS Default, CRT, HDMI QBOX-207T User’s Manual... -
Page 27: Table 5 Advanced Menu – Super Io Configuration
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port Type Options: RS232, RS422, RS485 QBOX-207T User’s Manual... -
Page 28: Table 7 Advanced Menu – Super Io Configuration – Serial Port
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12 Serial Port Type Options: RS232, RS422, RS485 QBOX-207T User’s Manual... -
Page 29: Configuration
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; QBOX-207T User’s Manual... -
Page 30: Table 9 Advanced Menu – Super Io Configuration – Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; QBOX-207T User’s Manual... -
Page 31: Table 10 Advanced Menu –Cpu Advanced Configuration
ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. EIST Options: Disabled, Enabled Turbo Mode Options: Disabled, Enabled Limit CPUID Maximum Options: Disabled, Enabled Execute Disable Bit Options: Disabled, Enabled Intel ® Virtualization Tech Options: Disabled, Enabled QBOX-207T User’s Manual... -
Page 32: Table 11 Advanced Menu –Sata Configuration
Port 1 [ Enabled ] F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. SATA Options: Disabled, Enabled SATA Mode Options: IDE Mode, AHCI Mode Port 1 Options: Disabled, Enabled QBOX-207T User’s Manual... -
Page 33: Table 12 Advanced Menu –Usb Configuration
Legacy USB Support Options: Disabled, Enabled, Auto XHCI Legacy Support Options: Disabled, Enabled XHCI hand-off Options: Disabled, Enabled EHCI hand-off Options: Disabled, Enabled USB Mass Storage Driver Support Options: Disabled, Enabled XHCI Mode Options: Smart Auto, Enabled QBOX-207T User’s Manual... -
Page 34: Table 13 Advanced Menu –Dio Configuration
F1: General Help DIO-3 Value F2: Previous Values DIO-4 Value F3: Optimized Defaults DIO-5 Value F4 Save & Exit DIO-6 Value ESC Exit DIO-7 Value Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. DIO Configuration Options: Disabled, Enabled QBOX-207T User’s Manual... -
Page 35: Table 14 Advanced Menu –H/W Monitor
F4 Save & Exit ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. CPU Warning Temperature Options: Disabled, 80, 85, 90, 95 CPU FAN Configuration FAN Setting [Manual Mode] Options: Manual Mode, Auto Mode Manual Duty 255 QBOX-207T User’s Manual... -
Page 36: Table 15 Power Configuration
Resume From S3 By PS/2 Mouse Options: Disabled, Enabled Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled EUP Power Saving Mode Options: Disabled, Enabled Watchdog Timer Configuration WDT Function [Disabled] ■ Options: Disabled, Enabled QBOX-207T User’s Manual... -
Page 37: Boot Menu
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc. Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off Keyboard Detect Warning Options: Disabled, Enabled CSM Support Options: Disabled, Enabled Boot Option Filter Options: UEFI and Legacy, Legacy only, UEFI only QBOX-207T User’s Manual... -
Page 38: Security Menu
Discard Changes and Reset Enter: Select Save Options +- Change Opt. Save Changes F1: General Help Discard Changes F2: Previous Values F3: Optimized Defaults Restore Defaults F4 Save & Exit ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. QBOX-207T User’s Manual... - Page 39 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QBOX-207T User’s Manual...
-
Page 40: Chapter 4 Driver Installation
You can download the drivers for the QBOX-207T from our website and install as instructed there. For other operating systems, please contact us.
