Front View Of The Computer; Rear View Of The Computer - Quanmax QDSP-2030 User Manual

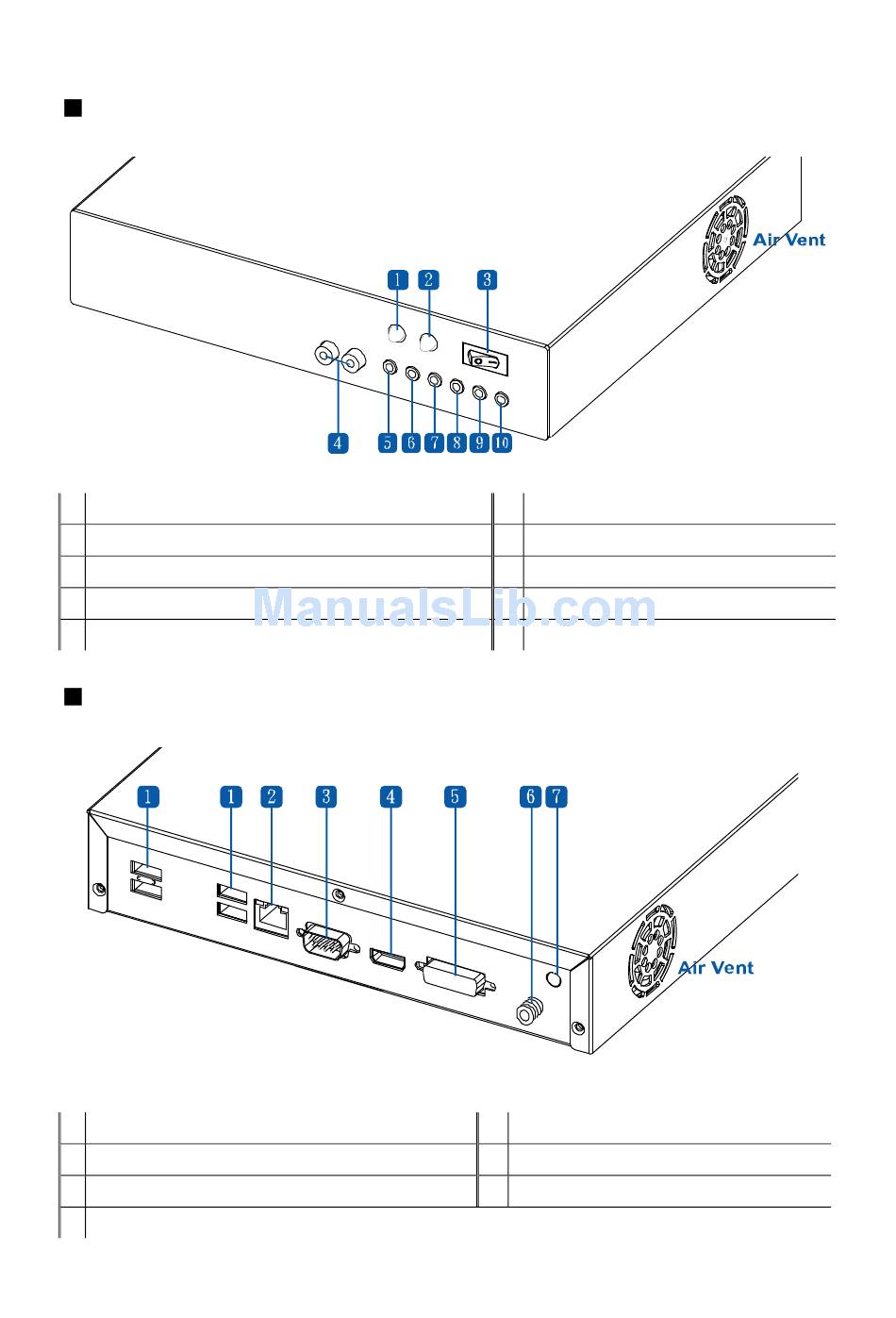

Front view of the computer

1 Power LED
2 HDD Active LED
3 Power Switch Button
4 R/L Channel Speaker Output (RCA Connectors) 9 CEN/LFE Output Audio Jack
5 Line-Out Audio Jack

Rear view of the computer

1 USB ports
2 10/100/1000 LAN port (RJ45)
3 COM1 (RS-232/422/485, selected by BIOS)
4 HDMI
QDSP-2030 User's Manual
6 Line-In Audio Jack
7 MIC-In Audio Jack
8 Side Surround Output Audio Jack
10 Back Surround Output Audio Jack
5 DVI-I
6 DC-12V IN
7 Antenna Connector (Option)
16
Chapter 1
