Figure 8 Press down on the SO-DIMM Memory Module to lock it in place

Removing a DIMM
To remove the SO-DIMM, use your fingers or a small screwdriver to carefully push
away the tabs that secure either side of the SO-DIMM. Lift it out of the socket.
Make sure you store the SO-DIMM in an anti-static bag. The socket must be
populated with memory modules of the same size and manufacturer.

HDD Installation

Step 1
Loosen the 4 screws and take off the HDD
brackets form the system.
Step 2
Secure the hard drive to the brackets using
the 4 short screws provided.
Connecting the SATA data & power cables
to the HDD and motherboard then secure
the bracket to the chassis.
QDSP-2030 User's Manual
NOTE

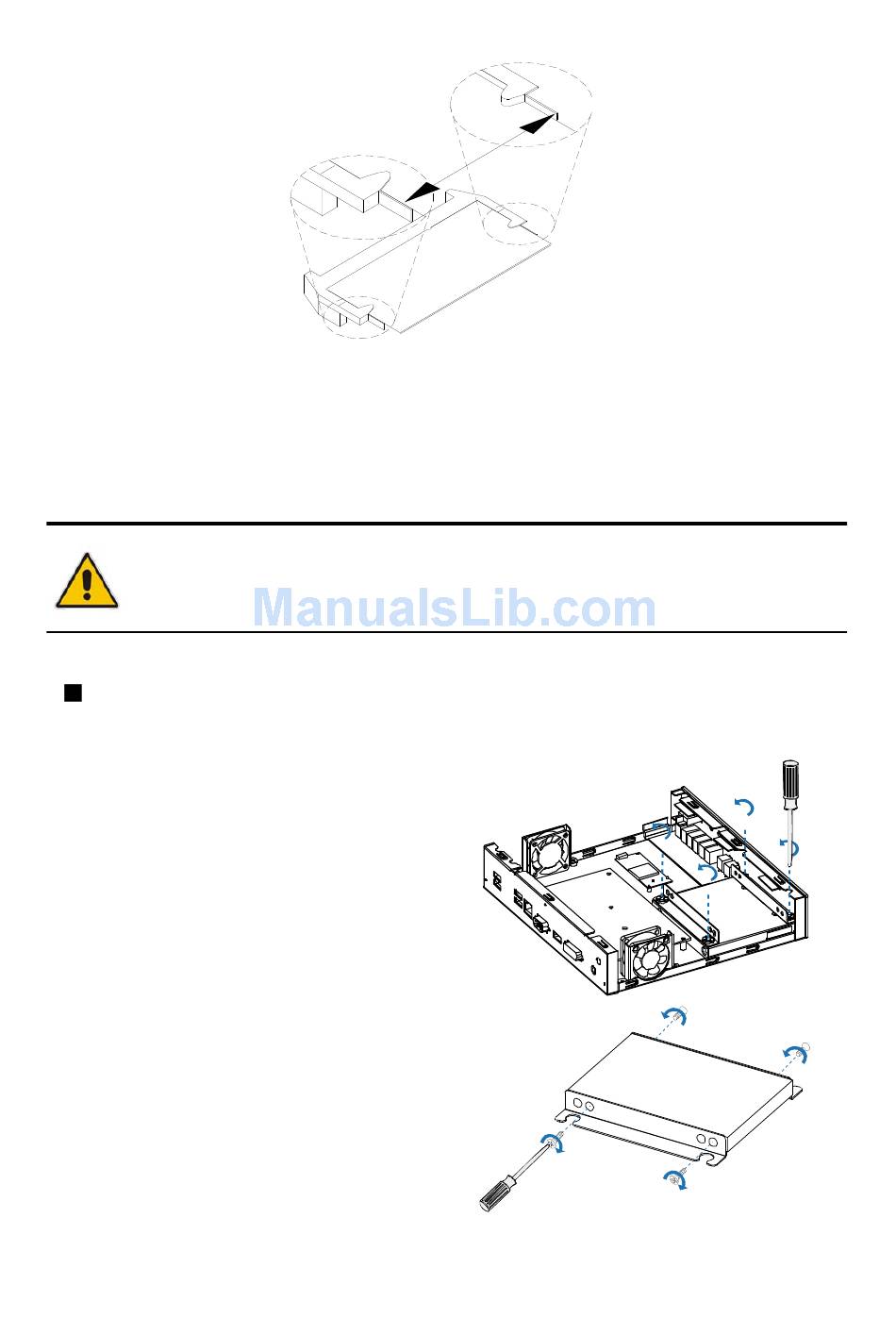

Figure 9 HDD Installation

24
Chapter 2
