- Page 1 CSC-V101P 4K UHD+ HDMI/VGA to HDMI Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 OSD Menu ..........5 6.3.1 Unit's OSD Menu ....... 5 6.3.2 Conversion Rules ...... -
Page 6: Introduction
1. INTRODUCTION This HDMI/PC to HDMI Scaler is designed to scale and convert HDMI, PC or Component video sources to an HDMI output with optional analog audio insertion. Scaled output resolutions from VGA (640×480@60Hz) all the way up to 4K@60Hz (4:4:4, 8-bit) are available. HD component video (YUV) is supported with the use of a 3-RCA to 15-pin adapter via the VGA input. -
Page 7: Features
5. FEATURES • HDMI with 18Gbps (600MHz) 4K UHD support • DVI 1.0 compatible with the use of an HDMI-DVI adaptor • HDCP 1.4 and 2.2 compliant • 1 HDMI and 1 VGA input port, each with associated 3.5mm analog stereo ports •... -
Page 8: Operation Controls And Functions

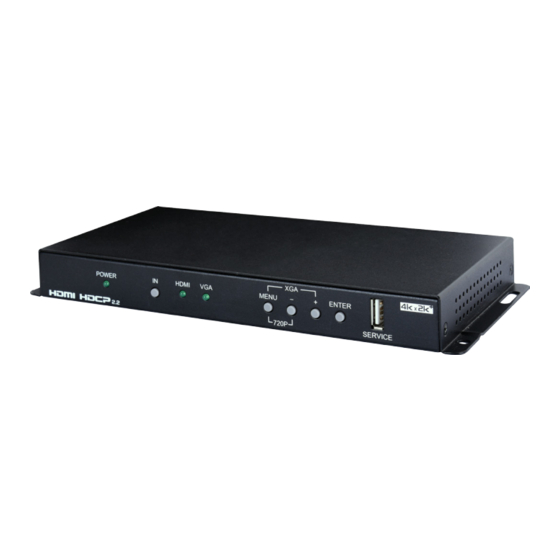

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER HDMI – MENU ENTER 720P SERVICE 3 4 5 6 POWER LED: This LED will illuminate to indicate the unit is on and receiving power. IN & LEDs: Press this button to switch between the HDMI and VGA inputs. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO AUDIO DC 5V HDMI IN VGA IN HDMI OUT HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. DVI sources are supported with the use of an HDMI to DVI adapter. AUDIO IN: Connect to the stereo analog output of the device connected to the HDMI input port if necessary. -
Page 10: Osd Menu
6.3 OSD Menu 6.3.1 Unit's OSD Menu LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 0~100 (50) PICTURE CONTRAST 0~100 (50) BRIGHTNESS EXIT 0~100 (50) FINETUNE HDMI/YPbPr INPUT 0~100 (50) SATURATION 0~100 (0) SHARPNESS AUTO MIDDLE HIGH PC INPUT PHASE 0~200 CLOCK 0~200... - Page 11 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 OUTPUT (cont.) RESOLUTION 1280×800@60 1280×1024@60 1440×900@60 1400×1050@60 1680×1050@60 1600×1200@60 1920×1080@60 480P@60 576P@50 720P@50 720P@60 1080P@24 1080P@25 1080P@30 1080P@50 1080P@60 4K2K@24 4K2K@25 4K2K@30 4K2K@50 4K2K@60 4K2K@50 (4:2:0) 4K2K@60 (4:2:0) NATIVE SCALER FORCE UHD BYPASS BYPASS SIZE...
- Page 12 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 OUTPUT (cont.) SIZE LETTER BOX UNDER 2 UNDER 1 MIRROR EXIT AUTOMATIC AUDIO HDMI INPUT EMBEDDED ANALOG EXIT 0~100 (50) H-POSITION 0~100 (50) V-POSITION TIMER 5~60S 0~100 (100) BACKGROUND DISPLAY EXIT DEF. 1080P EDID MANAGE EDID COPY DEF.
- Page 13 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 ADVANCED AUTO SYNC OFF SLOW (cont.) AUTO SCAN AUTO ADJUST HDMI HDCP HDCP SUPPORT REFER TO SOURCE REFER TO DISPLAY EXIT INFORMATION SOURCE INPUT OUTPUT VERSION EXIT FACTORY RESET EXIT Notes: • Default settings are marked in a Bold font. •...
-
Page 14: Conversion Rules
6.3.2 Conversion Rules SCALER BYPASS Input Output Bypass Scaler Bypass Scaler Resolution Resolution Path Path Path Path Non-4K Timing Any Timing 4K but not 24Hz 4K@24Hz 4K but not 25Hz 4K@25Hz 4K but not 30Hz 4K@30Hz ... -
Page 15: Connection Diagram
7. CONNECTION DIAGRAM PC or Notebook DVD or Blu-ray Player HDMI Stereo Analog Input Input Stereo Analog Input Input AUDIO AUDIO DC 5V HDMI IN VGA IN HDMI OUT Power Supply HDMI Output (Scaled) 4K Display... -
Page 16: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600MHz/18Gbps Input Ports 1×HDMI 1×VGA 2×3.5mm (Stereo Audio) Output Ports 1×HDMI Supported Resolutions 480i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 10m (1080p@60Hz, 12-bit) 2m (4K@60Hz, 4:4:4, 8-bit) Power Supply 5V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection... -
Page 17: Video Specifications
8.2 Video Specifications HDMI HDMI Supported PC Resolutions (Hz) Input Input Output 640×480@60/72/75/85 60Hz only 800×600@56/60/72/75/85 60Hz only 1024×768@60/70/75/85 60Hz only 1280×768@60 1360×768@60 1280×720@60 1280×800@60 1280×1024@60/75/85 60Hz only ... -
Page 18: Audio Specifications
8.3 Audio Specifications Input Output Sample Frequence Level/Freq. Terminal Channel Rate Level THD+N Response Crosstalk HDMI 0 ~ -1dB < 0.01 > 80dB < -80dB HDMI 48kHz ±1dB 0dBFS/1kHz 0 ~ -1dB < 0.01 > 80dB < -80dB 2Vrms±0.2 < 0.1 >... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
