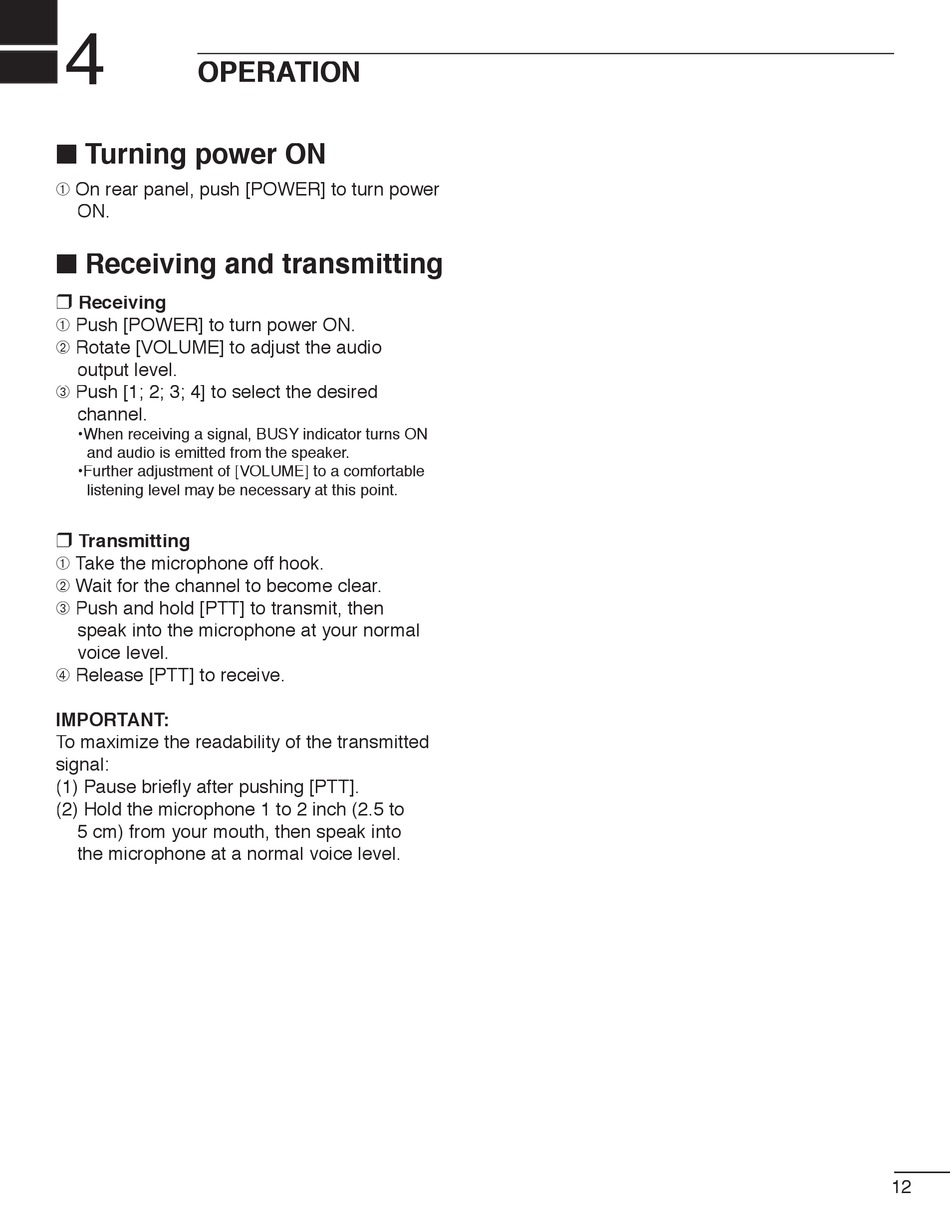

Operation; Receiving And Transmitting - Icom CY-F121S Instruction Manual

4

OPERATION

■ Turning power ON
➀ On rear panel, push [POWER] to turn power
ON.

■ Receiving and transmitting

Receiving

➀ Push [POWER] to turn power ON.
➁ Rotate [VOLUME] to adjust the audio
output level.
➂ Push [1; 2; 3; 4] to select the desired
channel.
•When receiving a signal, BUSY indicator turns ON
and audio is emitted from the speaker.
•Further adjustment of [VOLUME] to a comfortable
listening level may be necessary at this point.
Transmitting

➀ Take the microphone off hook.
➁ Wait for the channel to become clear.
➂ Push and hold [PTT] to transmit, then
speak into the microphone at your normal
voice level.
➃ Release [PTT] to receive.
IMPORTANT:
To maximize the readability of the transmitted
signal:
(1) Pause briefl y after pushing [PTT].
(2) Hold the microphone 1 to 2 inch (2.5 to
5 cm) from your mouth, then speak into
the microphone at a normal voice level.
12
