Gb Network

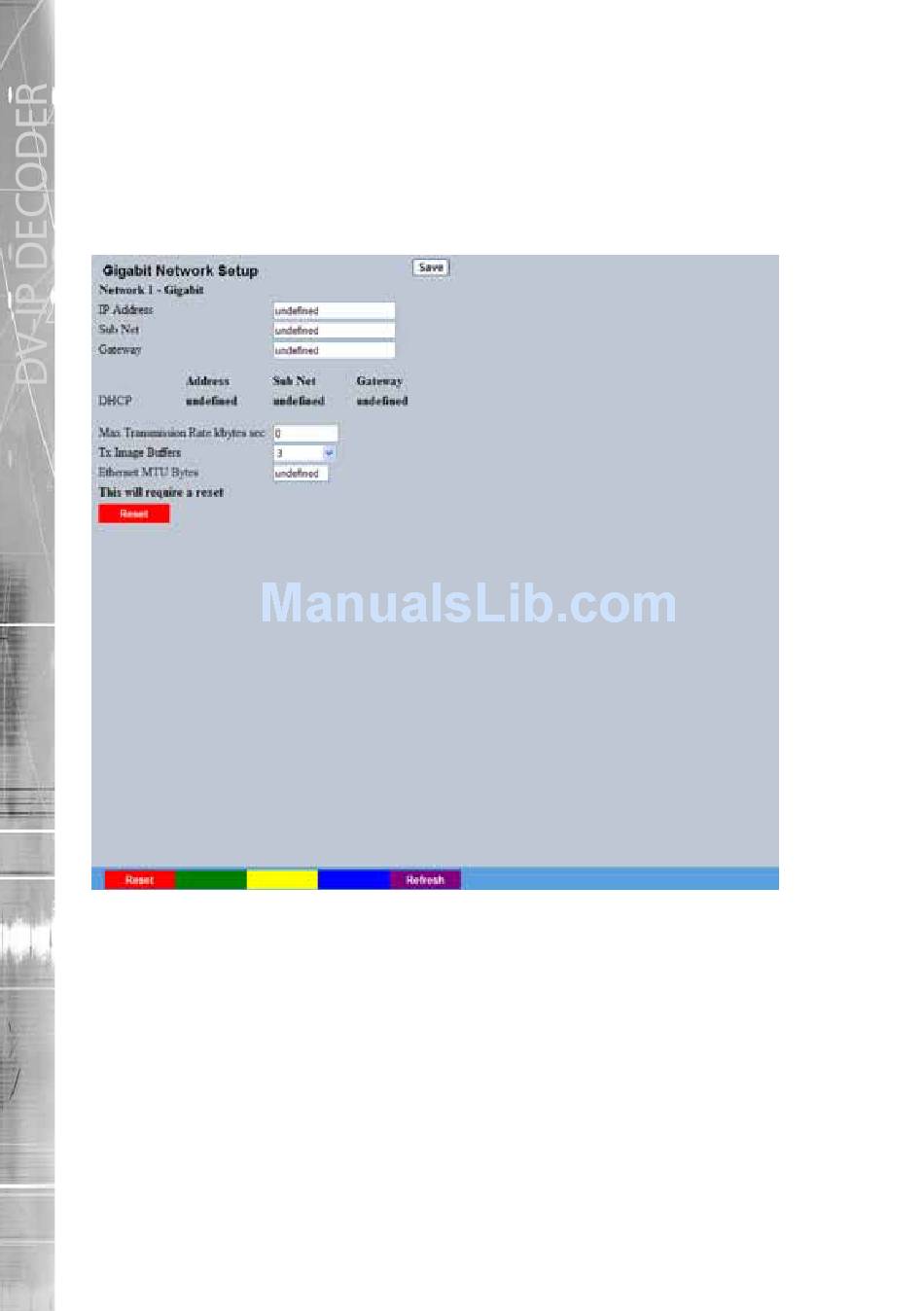

This menu allows the IP, Subnet and Gateway details to be configured for the 1Gb network
connection. Utilising the Gb Network via Network port 1 on the unit, labelled 'NET 1'.
Note: Any fixed IP address assigned to the 1Gb Network connection must NOT be the same
address as that assigned to the 100BaseT connection as displayed in Network Settings-
>Network->IP Address.
IP Address
Sub Net
Gateway
DHCP
Max Transmission Rate kbytes sec This shows the maximum transmission speed for the network type
44
This is the IP address allocated to the unit.
This is the subnet of the network were the unit is located.
This is the IP address of the default gateway (router).
The unit is set to default to DHCP. The unit can be installed in a
DHCP network environment where an IP address, subnet mask
and default gateway will automatically be allocated from the
network DHCP Server. It is recommended that this be disabled
as the DHCP address is automatically allocated from a pool of
available IP addresses on power up. If the unit loses power,
the connection could reset to a different number. Setting the IP
address disables DHCP.
being used.
