Home Position Adjustment - iSolution Lighting Equipment User Manual

Lamp ON/OFF
Press the MENU button until the
and the display will blink. Use DOWN and UP button to select the
(Lamp off) mode. Once the mode has been selected, press the ENTER button to
setup or automatically return to the main functions without any change after 8 seconds. To go
back to the functions without any change press the MENU button again.
Lamp Mode
Press the MENU button until the
and the display will blink. Use DOWN and UP button to select the
or ( Lamp mode off ) mode. Once the mode has been selected, press the
ENTER button to setup or automatically return to the main functions without any change after
8 seconds. To go back to the functions without any change press the MENU button again.
Reset
Press the MENU button until the
and all channels of the unit will return to their standard position. To go back to the functions
press the MENU button again.
DMX RESET :
Set DMX value of channel 16 to 200~209, then all channels of the unit will return to their
standard home position after about 5 seconds.

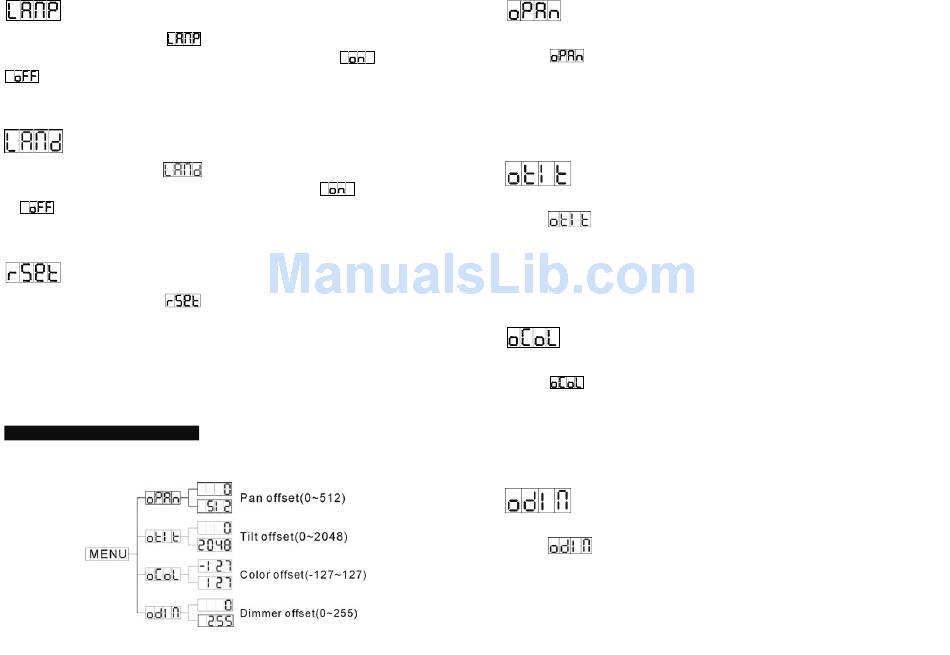

4.3 Home Position Adjustment

Press MENU button for at least 5 seconds into offset mode to adjust the home position, the
functions are shown below:
is blinking on the display. Pressing ENTER button
(Lamp on) or
is showing on the display. Pressing ENTER button
( Lamp mode on )
is blinking on the display. Pressing ENTER button
12A
Pan offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
until the is shown on the display. Pressing ENTER button and the display will blink.
Use DOWN and UP button to adjust the pan home position. Once the position has been
selected, press the ENTER button to setup or automatically return to the offset functions
without any change press the MENU button again, to go back to the main functions without
any change after 8 seconds.
Tilt offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
until the is shown on the display. Pressing ENTER button and the display will blink.
Use DOWN and UP button to adjust the tilt home position. Once the position has been
selected, press the ENTER button to setup or automatically return to the offset functions
without any change press the MENU button again, to go back to the main functions without
any change after 8 seconds.
Color offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
until the is shown on the display. Pressing ENTER button and the display will blink.
Use DOWN and UP button to adjust the color home position. Once the color has been
selected, press the ENTER button to setup or automatically return to the offset functions
without any change press the MENU button again, to go back to the main functions without
any change after 8 seconds.
Dimmer offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
until the is shown on the display. Pressing ENTER button and the display will blink.
Use DOWN and UP button to adjust the dimmer home position(0~255). Once the mode has
been selected, press the ENTER button to setup or automatically return to the offset
functions without any change press the MENU button again, to go back to the main functions
without any change after 8 seconds.
