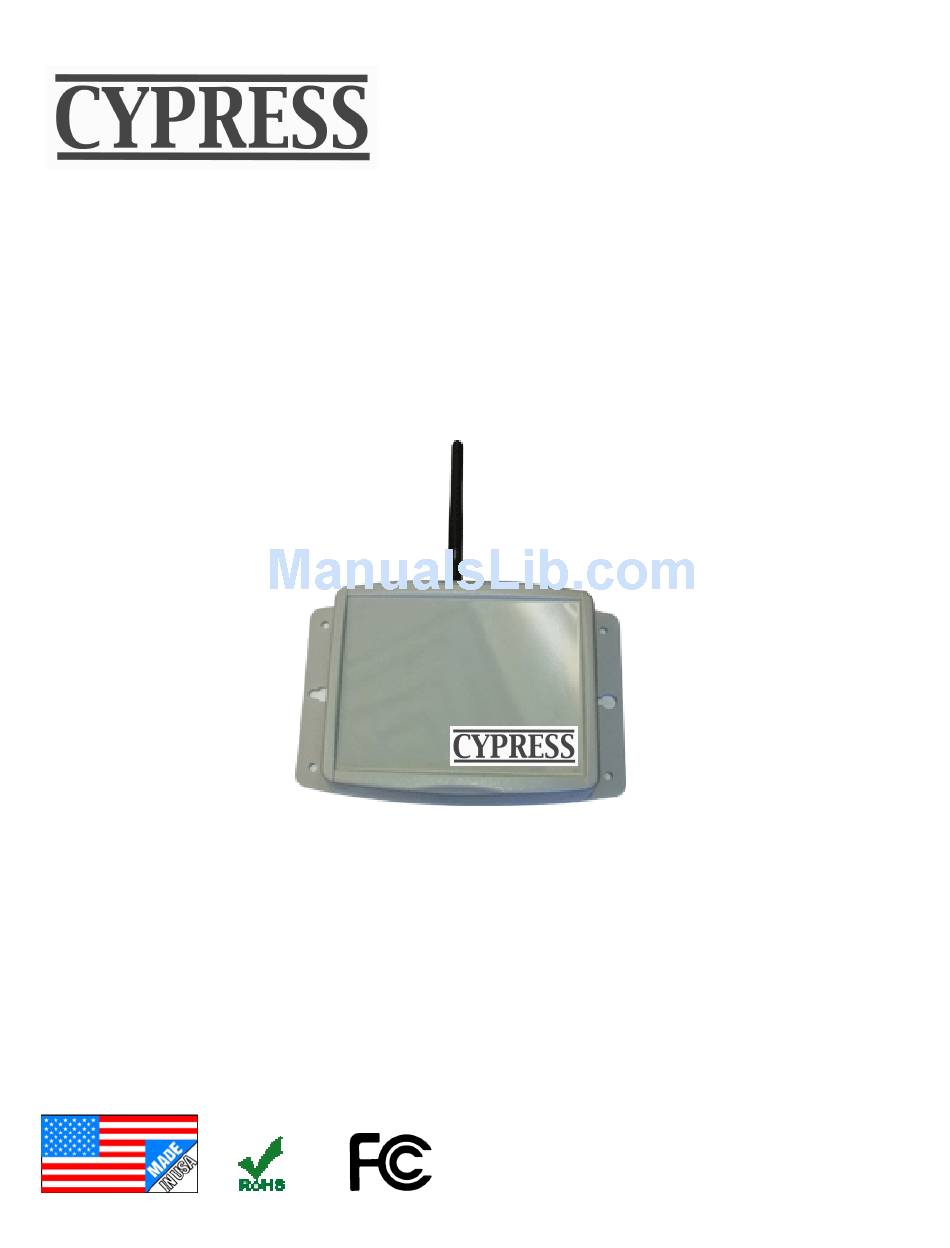

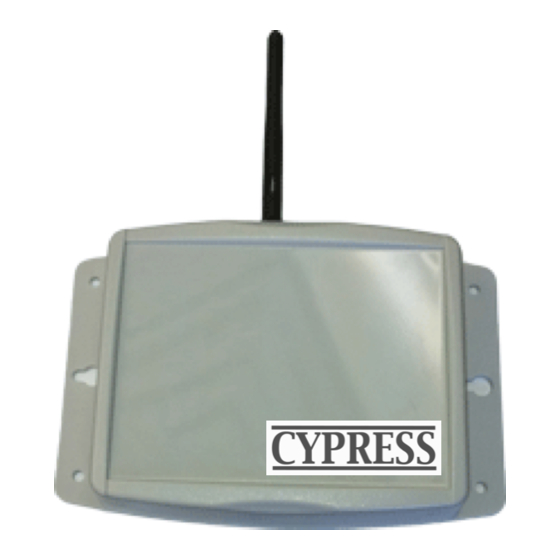

- Page 1 WMR-9600 Series Operations Manual Suprex® Reader Extender - RF Wireless Interface WMR-9600MAN Page 1 of 14...
- Page 2 Cypress Suprex WMR-9600 Series WMR-9600 Series: This manual covers the operation and setup of the Cypress WMR-9600 series units. Overview The WMR-9600 series of RF Wireless solutions provides a wireless interface from Card Readers with gates or door hardware when used with the WMR-7100 with or without EXP-1000 units to most access control manufacturers panels.
-
Page 3: Remote Unit Settings
External connections and DIP Switch Settings 1 - 8 to 16 VDC In 2 - Ground WMR-9600 1- Relay 2 N.O. Remote 2- Relay 2 Com Status LED 3 - Relay 2 N.C. 1 - exp (+) 4 - Relay 1 N.O. 2 - exp (-) 5 - Relay 1 Com 3 - +5 VDC out... - Page 4 Quick Reference For Typical Connections WMR-9600 Series Central Quick Reference WMR-9600 Remote Quick D0/Clock D0/Clock In D1/Data D1/Data In LED Out Card Switch #4 ON Reader Enable Pullup Resistors Door R1 N.C. Strike R1 Com Switch #4 OFF R1 N.O. Disable Pullup Resistors Diagnostic LED...
- Page 5 Typical RF installation with repeater WMR-9621 (1) Obstruction WMR-7100 WMR-7500 Typical RF installation - line of sight WMR-9621(1) WMR-7100 Typical RF installation - WMR-9621 (1) expansion modules WMR-9621 (2) WMR-7100 (1) WMR-9621 (3) EXP-1000C (2) Wiegand connection EXP-1000C (3) card reader RS-485 multi-drop Page 5 of 14...
- Page 6 Temperature Rating vs Voltage Derating Curve Ambient Temperature (Degrees Celsius) Supply Voltage Temperature/Voltage de-rating curve The Suprex units should be operated with a filtered 12 Volt nominal DC supply. Any voltage between 8 and 16 volts can be utilized by following the temperature /voltage derating curve.
- Page 7 Cypress Suprex RF Series - Setup and Pre-installation Unpacking: Remove covers from units and check interior for any shipping damage. Remove any packing material if present. Inventory any included parts (depending on model) such as antennas, coax cables etc. Bench Testing: Before installing the units in the field they should be assembled and tested at a convenient “Bench top”...
- Page 8 Cypress Suprex RF Series - Indicators and Operating Modes LED Diagnostic Indicator: The LED Diagnostic indicator provides information on the operational status of the unit. If the units are not communicating, viewing the diagnostic indicator LEDʼs may help to determine the nature of the problem.
- Page 9 Cypress Suprex RF Series - Door Strike and LED I/O Note: The LED and Door Strike operation of the RF Suprex differs from previous Suprex versions. To activate the relay on the Remote unit, connect as shown below. These connections can be used to allow the Remote relay to operate a DOOR STRIKE, GATE, or other locking hardware.
- Page 10 Cypress Suprex 5600 Series - Door Strike and LED I/O The Cypress SPX-5600 provides additional data channels to support access control hardware such as door strikes, tamper alarms, request to exit status, etc. These signals are sent to and from the Remote and Central units without the need to run additional wiring.
- Page 11 Cypress Suprex Series - Relay Controls Input Signal Relay 1 IN Suprex Central Contact Outputs Relay 1 N.C Relay 1 Com Relay 1 N.O. Suprex Remote Page 11 of 14...
- Page 12 Cypress Suprex Series - Relay Controls Input Signal Relay 2 IN Suprex Central Contact Outputs Relay 2 N.C Relay 2 Com Relay 2 N.O. Suprex Remote Page 12 of 14...
-
Page 13: Remote Unit
485(+) RLY1 N.C. 485(-) RS232 Out +5 VDC Out RS232 In RLY4 Input (5V) Ground RLY3 Input (5V) Aux In LED Output D1/Data/F2F Input D0/CLK Input Cypress Suprex Series - Wiegand Expansion Module Panel “Central” interface Page 13 of 14... - Page 14 Page left intentionally blank Page 14 of 14...
