XTENDEX
Series
ST-C6HD-HDBT-LC
328 FOOT HDMI, Digital Audio and IR
Extender
Installation and Operation Manual

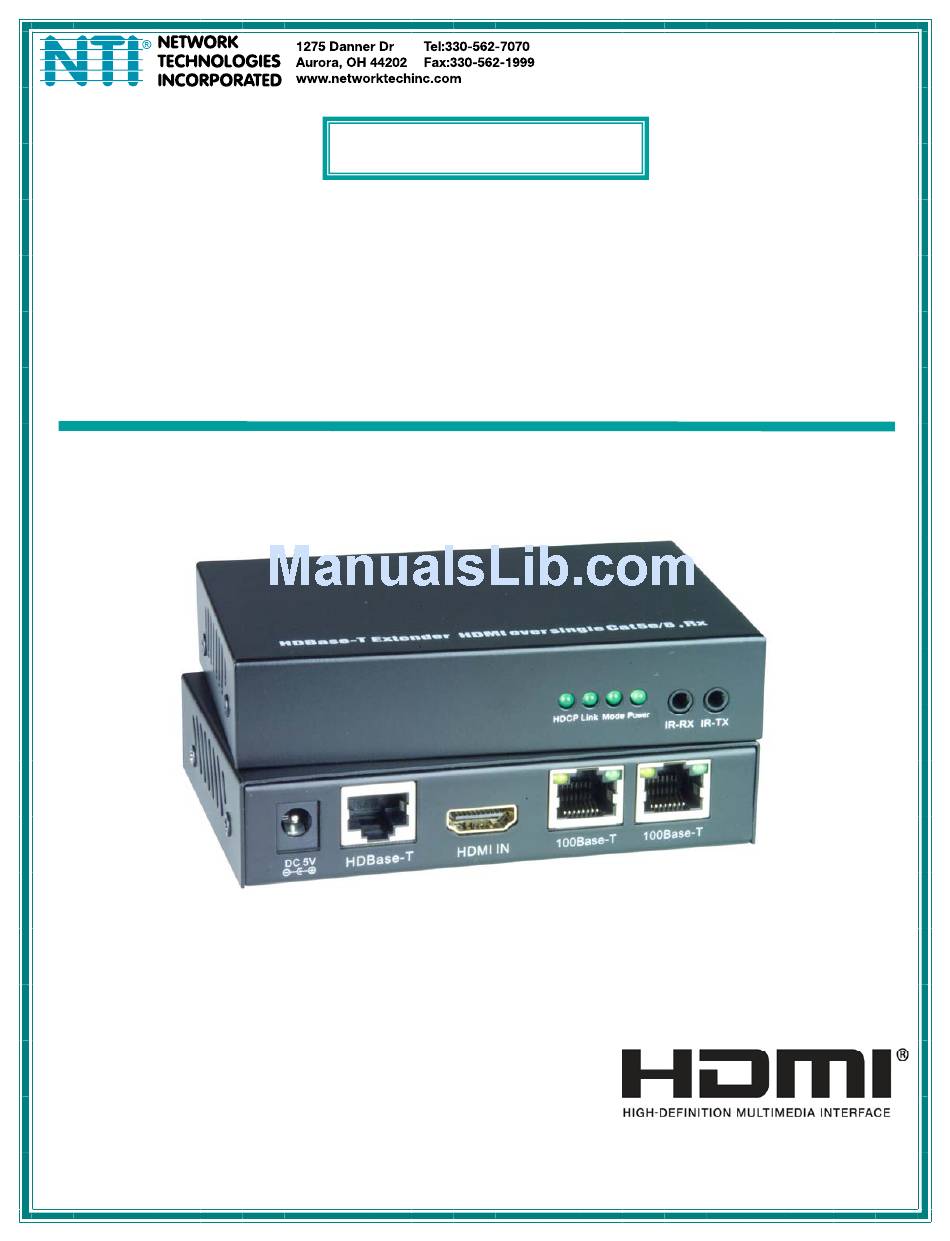

ST-C6HD-HDBT-LC Remote and Local Unit
MAN152 Rev Date 6/22/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTENDEX ST-C6HD-HDBT-LC and is the answer not in the manual?

Questions and answers

Summary of Contents for NTI XTENDEX ST-C6HD-HDBT-LC

  • Page 1 ® XTENDEX Series ST-C6HD-HDBT-LC 328 FOOT HDMI, Digital Audio and IR Extender Installation and Operation Manual ST-C6HD-HDBT-LC Remote and Local Unit MAN152 Rev Date 6/22/2012...
  • Page 2 Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. CHANGES The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Connectors and LEDs ..............................3 Limitations ..................................4 Preparation for Installation .............................. 4 Installation ..................................5 Installing The Local Unit .............................. 5 Installing The Remote Unit ............................5 Connect the CATx Cables ............................6 Plug-in and Boot Up..............................
  • Page 4: Introduction

    NTI XTENDEX 328 Foot HDMI and IR Extender INTRODUCTION The XTENDEX Series ST-C6HD-HDBT-LC HDMI HDBase-T Extender transmits uncompressed digital HDMI signal, IR, and Ethernet up to 328 feet over a single CAT5e/6 cable using HDBase-T technology. Each video extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.
  • Page 5: Materials

    NTI XTENDEX 328 Foot HDMI and IR Extender MATERIALS Materials Included with ST-C6HD-HDBT-LC kit: NTI XTENDEX Local Unit NTI XTENDEX Remote Unit 2-100VAC to 240VAC at 50 or 60Hz-5VDC/0.5A AC Adapter 3 Foot IR-EMITTER 3 Foot IR-RECEIVER This manual Additional materials are required but are not supplied: CAT5e solid UTP ;...
  • Page 6: Connectors And Leds

    NTI XTENDEX 328 Foot HDMI and IR Extender CONNECTORS AND LEDS LABEL CONNECTOR DESCRIPTION DC 5V Power Jack connection jack for the AC adapter RJ45 Connector Connector for CAT5e/6 cable between Local and Remote Units HDBase-T HDMI In HDMI female video for connecting an HDMI cable between the Local Unit and the video connector source...
  • Page 7: Limitations

    NTI XTENDEX 328 Foot HDMI and IR Extender LIMITATIONS • The use of CAT5 or of any stranded cabling will reduce the maximum distance and resolution. PREPARATION FOR INSTALLATION • Locations should be chosen for the monitor that also has space to connect the Remote unit within the distance provided by the cables.
  • Page 8: Installation

    2. Connect PC(s) or Ethernet connection from LAN to “100Base-T” ports as desired. Note: Ethernet connection can be made either at the Local Unit or at the Remote Unit ports. Each PC connected to the ST-C6HD-HDBT-LC will connect to the LAN through this Ethernet connection. The maximum HDMI cable...
  • Page 9: Connect The Catx Cables

    NTI XTENDEX 328 Foot HDMI and IR Extender Connect the CATx Cables Connect the CATx cable between the “HDBase-T” ports on the Local and Remote Unit. (See Figure 3) When properly inserted the cable ends should snap into place. WARNING: Never connect the “HDBase-T”...
  • Page 10: Infrared Control

    NTI XTENDEX 328 Foot HDMI and IR Extender INFRARED CONTROL The XTENDEX includes ports for connecting an infrared emitter and receiver (included) to work in conjunction with the IR remote control used to operate the signal source. Connect the receiver to the “IR RX” port on one end of the installation (Remote Unit or Local Unit) and the emitter to the “IR TX”...
  • Page 11: Technical Specifications

    NTI XTENDEX 328 Foot HDMI and IR Extender TECHNICAL SPECIFICATIONS Video Video Compatibility 1920x1200 resolutions/ HDTV resolution up to 1080p @60Hz Video Connectors HDMI Type A Female Input Video Signal 5.0 Volts P-P Video Color Format 36bit Deep color HDMI Version HDMI 1.4a DDC Support DDC2b...
  • Page 12: Troubleshooting

    NTI XTENDEX 328 Foot HDMI and IR Extender TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise.
