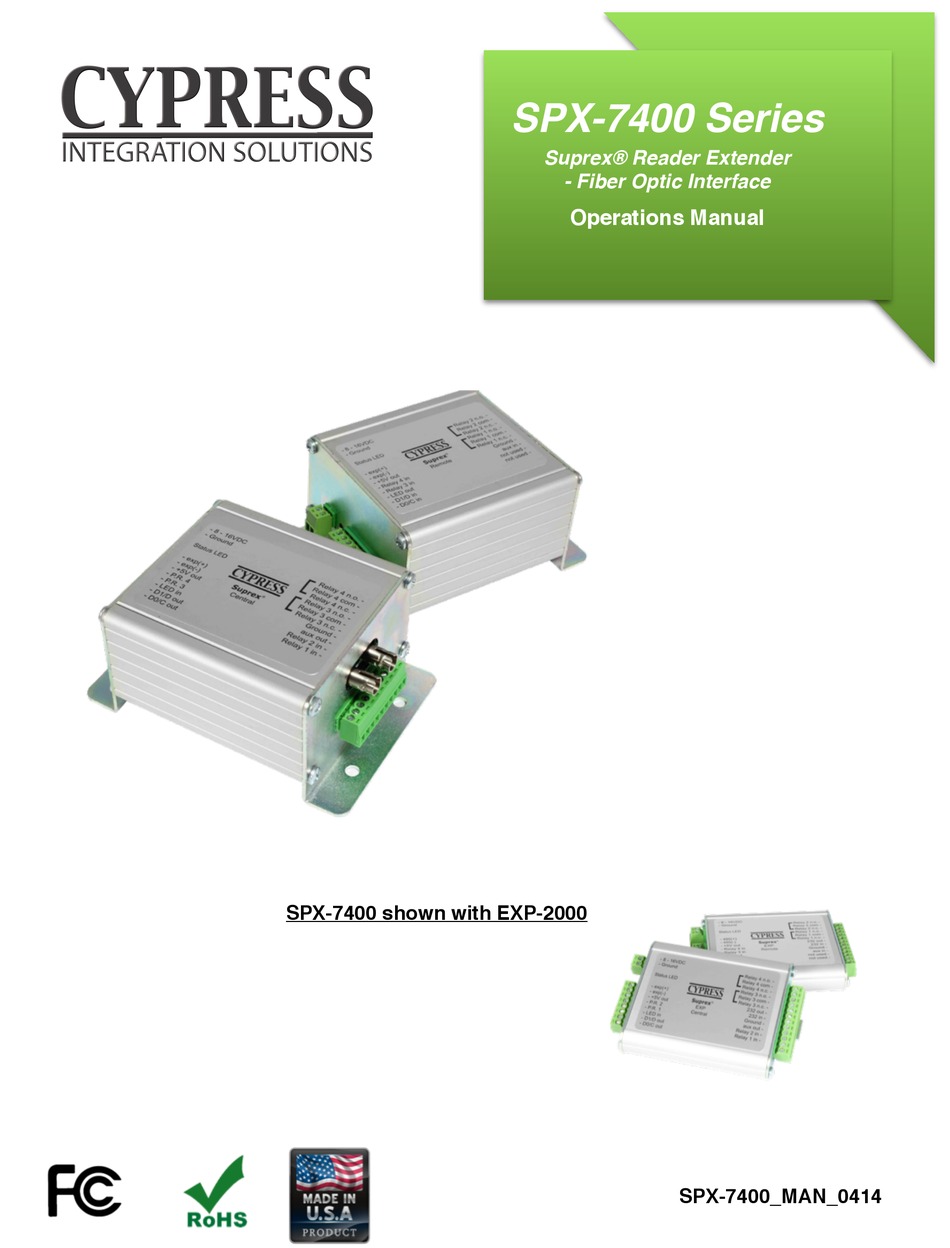

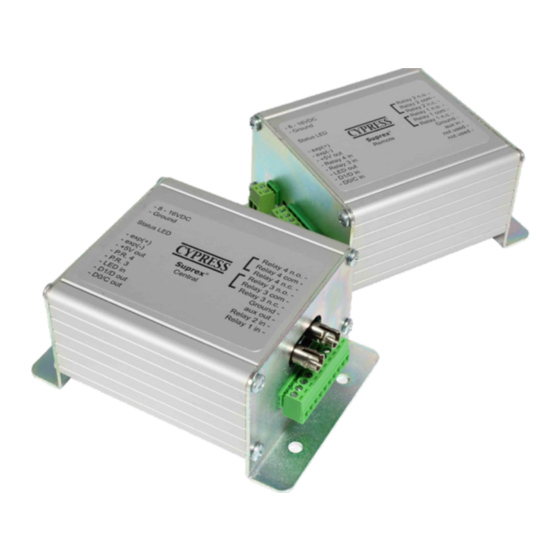

- Page 1 SPX-7400 Series Suprex® Reader Extender ! - Fiber Optic Interface Operations Manual SPX-7400 shown with EXP-2000 SPX-7400_MAN_0414...
- Page 2 Suprex® SPX-7400 Series Overview This manual covers the operation and setup of the Cypress Suprex® Fiber Optic SPX-7400 series units. " " Overview:" " The SPX-7400 series of Fiber Optic solutions provides a bridge from Card Readers with gates or door hardware to most access control manufacturers panels.
- Page 3 " Cable Recommendations! Belden or equivalent! " " " " " " SPX-1300, SPX-7500 and EXP-1000/2000! " RS-485 connection! " PVC - Belden 9744 - 22 AWG 2 twisted pair, 4,000 feet max." Plenum - Belden 82741 - 22 AWG 2 twisted pair, 4,000 feet max." "...
- Page 4 " Temperature Rating vs Voltage Derating Curve Ambient Temperature (Degrees Celsius) Supply Voltage Temperature/Voltage de-rating curve The Suprex® units should be operated with a filtered 12 Volt nominal DC supply. " Any voltage between 8 and 16 volts can be utilized by following the temperature /voltage derating curve. Voltage should not exceed 16 VDC under normal operating conditions.
- Page 5 " " External connections and DIP Switch Settings " " 1 - 8 to 16 VDC In " " 2 - Ground SPX-7400! " 1- Relay 4 N.O." Central " 2- Relay 4 Com" Status LED 3 - Relay 4 N.C." "...
- Page 6 " " Quick Reference For Typical Connections " " " " " SPX-7400 Series Central " " " DC" " Power " +8 to +16 VDC" " Supply" Ground " Diagnostic LED " " " " R1 Input " Controls " "...
- Page 7 " " " " " Fiber Optic Connections " " " " " " " " Fiber Optic Interface! " SPX-7400! " Central " " " " " " " " " " " " " " " " " Fiber Optic Interface! "...
- Page 8 " " Cypress Suprex® SPX-7400 Series - Setup and Pre-installation " " " " " " " " " " " " Bench Testing:" " " " Before installing the units in the field they should be assembled and tested at a convenient “Bench top” "...
- Page 9 Cypress Suprex® SPX-7400 Series - Status Indicators " " LED Diagnostic Indicator:" " The LED Diagnostic indicator provides information on the operational status of the unit." " If the units are not communicating, viewing the diagnostic indicator LED’s may help to determine the " nature of the problem."...
- Page 10 Cypress Suprex® F.O. Series - Door Strike and LED I/O Note: The LED and Door Strike operation of the FO Suprex® differs from previous Suprex® version To activate the relay on the Remote unit, connect as shown below. These connections can be used to allow the Remote relay to operate a DOOR STRIKE, GATE, or other locking hardware.
- Page 11 Cypress Suprex® F.O. Series - Door Strike and LED I/O The Cypress SPX-7400 provides additional data channels to support access control hardware such as door strikes, tamper alarms, request to exit status, etc. These signals are sent to and from the Remote and Central units without "...
- Page 12 Cypress Suprex® F.O. Series - Relay Controls Suprex® Central Suprex® Central Relay 2 IN Input Signal Relay 1 IN Input Signal Red arrow denotes direction of command signal Relay 2 N.O." Suprex® Remote Relay 2 Com" Relay 2 N.C. Contact Relay 1 N.O."...
- Page 13 Cypress Suprex® F.O. Series - Relay Relay 4 N.O." Relay 4 Com" Relay 4 N.C. Contact Outputs Suprex® Central Contact Outputs Red arrow denotes direction of command signal Suprex® Remote Relay 4 IN Input Signal (5Volts DC Input Signal Maximum) (5Volts DC Maximum) Relay 3 functions as an Alarm relay and monitors the condition of the communication link between "...
- Page 14 SPX-XXXX Application Note " Using Supervised Contacts with the SPX-series Extenders " Applies to the following products: SPX-5501, SPX-5601, SPX-5521, SPX-5621, SPX-7400, SPX-7410, SPX-7200, SPX-7500, All RIM series products. " This application note describes the connections necessary to convey supervised contact status over a Suprex®...
- Page 15 SPX-7400 Setup - Using Expansion Modules Before using EXP-2000 Expansion modules with the SPX-7400 system, it will be necessary to perform a short configuration process. This process determines if the 7400 will utilize expansion modules, and if so, how many will be used with the system.
- Page 16 Cypress Suprex® LYNK! Fiber Optic Solution Door / Parking Gate! EXP-2000C SPX-74X0R (1) EXP-2000C EXP-2000R EXP-2000R" EXP-2000C EXP-2000R" EXP-2000C EXP-2000R SPX-74X0C (1) Card Reader I / O Control Wiegand Data Fiberoptic Link RS-485 Link - Multi-drop...
-
Page 17: Central Unit
Cypress Suprex® Series - Wiegand Expansion Module! Panel “Central” interface DC" Power " +8 to +16 VDC" Supply Ground SPX-7400 ! Central EXP(+)" EXP(-)" " " " R1 Input " Access! Controls " Control ! LED In Strike on" Panel D1/Data Out"... -
Page 18: Remote Unit
Cypress Suprex® Series - Wiegand Expansion Module! Reader/Door “Remote” interface DC" Power " 8 to 16 VDC In" SPX-7400 ! Supply Ground Remote EXP (+)" R1 N.O." EXP (-)" " Door ! R1 Com" Strike ! " R1 N.C. Output "...
