- Page 1 SDV-FTX/FRX Ultra-HDMI (4K/60) over Fiber extender OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........7 4. System Requirements ......7 5. Features ..........8 6. Operation Controls and Functions ..9 6.1 Transmitter's Front Panel ......9 6.2 Transmitter's Rear Panel ......10 6.3 Receiver's Front Panel ......11 6.4 Receiver's Rear Panel ......12 6.5 Basic AV Extension ........13 6.6 Advanced AV Extension ......14... -
Page 6: Introduction
1. INTRODUCTION This Transmitter and Receiver set is designed for high-quality, IP routable, AV extension with minimum latency. By using a sophisticated ultra- light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams (HDMI or DisplayPort) and data. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit colour and multi-channel HD Bitstream audio can be transmitted in pass-through mode. -
Page 7: Package Contents
3. PACKAGE CONTENTS Transmitter 1×HDMI/DP over Fiber Transmitter 1×12V/3A DC Power Adaptor 1×Power Cord 1×Operation Manual Receiver 1×HDMI/DP over Fiber Receiver 1×12V/3A DC Power Adaptor 1×Power Cord 1×Operation Manual 4. SYSTEM REQUIREMENTS HDMI or DisplayPort source equipment such as media players, video game consoles PCs or set-top boxes. -
Page 8: Features
5. FEATURES HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant IP switchable with minimum latency (requires optional control center/ software) Ultra-light compression, lossless for most content Extension up to 30km (depending on the fiber module used) Independent breakaway A/V matrix switching (requires optional control center/software) Video wall generation (requires optional control center/software) -
Page 9: Operation Controls And Functions

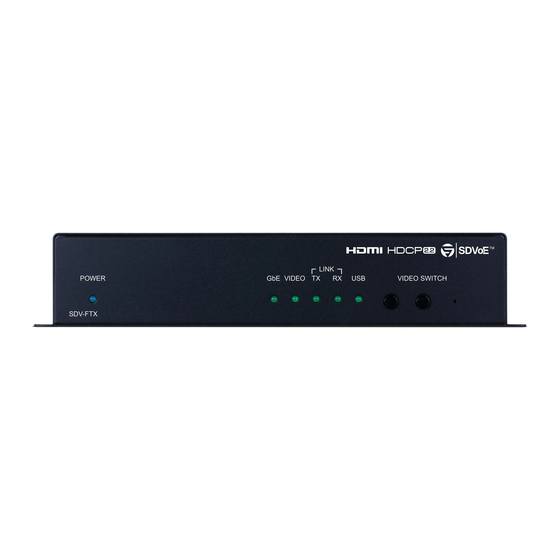

6.1 Transmitter's Front Panel LINK POWER GbE VIDEO TX VIDEO SWITCH SDV-FTX POWER LED: This LED will illuminate to indicate the unit is on and receiving power. GbE LED: This LED illuminates and blinks to indicate activity on the gigabit Ethernet port. -
Page 10: Transmitter's Rear Panel
6.2 Transmitter's Rear Panel 4 5 6 AUDIO IR OUT IR IN RS232 DP IN DC 12V HDMI IN SFP+ DP IN: Connect to DisplayPort source equipment such as a PC or laptop. HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. -
Page 11: Receiver's Front Panel
6.3 Receiver's Front Panel LINK LINK POWER POWER GbE VIDEO GbE VIDEO TX COPY EDID COPY EDID SDV-FRX POWER LED: This LED will illuminate to indicate the unit is on and receiving power. GbE LED: This LED illuminates and blinks to indicate activity on the gigabit Ethernet port. -
Page 12: Receiver's Rear Panel
6.4 Receiver's Rear Panel 3 4 5 AUDIO IR OUT IR IN RS232 DC 12V HDMI OUT SFP+ HDMI OUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. SFP+: Connect a standard SFP+ module to allow data transmission over optical fiber to a compatible Receiver. -
Page 13: Basic Av Extension
6.5 Basic AV Extension Point-to-Point Configuration & Operation The most basic extension configuration available is a point-to-point system with a single Transmitter connected directly to a single Receiver. In this configuration the selected input (HDMI or DisplayPort) is transmitted to the connected Receiver without modification to the audio or video format. -
Page 14: Advanced Av Extension
6.6 Advanced AV Extension Configuration & Control When combined with the optional control center or control software, and a 10 gigabit Ethernet switch, this optical fiber extension system gains a large number of additional configuration options including: multi-in/ multi-out matrix switching with breakaway audio, video wall creation, and multi-view composite output. - Page 15 (2) Video Wall Configuration 10Gb Fiber Network Switch (3) Multi-View (PiP Or Quad) Configuration 10Gb Fiber Network Switch Note: The control center hardware/control software are optional components and are not included with the base Transmitter/Receiver product. Please contact your authorised dealer for more information.
- Page 16 Control Software The control software is a fully software based solution for controlling multiple Transmitters and Receivers, in a variety of configurations, providing full and detailed control over the functionality of each individual unit. This software requires installation on a Windows 7 (SP1 or later), Windows 8, or Windows 10 PC/Laptop.
- Page 17 Control Center Hardware The Control Center is a hardware solution designed to provide a unified and easy method to access and control all of the Transmitters and Receivers in a system. It provides a user-friendly, and operating system agnostic, web-based interface allowing easy control over all of the most critical functions within a distribution system.
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop with RS-232 Control System DVD/Blu-ray Player HDMI & IR In & Out Analogue 1.5m Audio 60° Inputs DisplayPort RS-232 & Router 60° Input Power Supply AUDIO IR OUT IR IN RS232 DP IN DC 12V HDMI IN SFP+ Optical Fiber Cable... -
Page 19: Specifications
8. SPECIFICATIONS 8.1 Transmitter's Technical Specifications Video Bandwidth 600MHz/18Gbps Input Ports 1×HDMI 1×DisplayPort 1×3.5mm (Stereo Audio) Output Port 1×Fiber Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (9-pin D-sub) 1×LAN (RJ45) 1×USB Type-B Supported Resolutions 480i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 10m (1080p@60Hz, 12-bit) - Page 20 Dimensions 213.5mm×44mm×158mm (W×H×D) [Case Only] 215mm×47mm×153mm (W×H×D) [All Inclusive] Weight 968g Chassis Material Metal Silkscreen Colour Black Operating Temperature 0˚C - 40˚C/32˚F - 104˚F Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F Relative Humidity 20 - 90% RH (Non-condensing) Power Consumption...
-
Page 21: Receiver's Technical Specifications
8.2 Receiver's Technical Specifications Video Bandwidth 600MHz/18Gbps Input Port 1×Fiber Output Ports 1×HDMI 1×3.5mm (Stereo Audio) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (9-pin D-sub) 1×LAN (RJ45) 1×USB Type-A Supported Resolutions 480i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:4:4, 8-bit) - Page 22 Silkscreen Colour Black Operating Temperature 0˚C - 40˚C/32˚F - 104˚F Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F Relative Humidity 20 - 90% RH (Non-condensing) Power Consumption 14.4W...
-
Page 23: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM DisplayPort Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range Internet Protocol Infrared Local Area Network LPCM Linear Pulse-Code Modulation Personal Computer Ultra-High-Definition Universal Serial Bus Video Graphics Array (640×480@60Hz) WUXGA... - Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
