Summary of Contents for CYP SDV-FTX

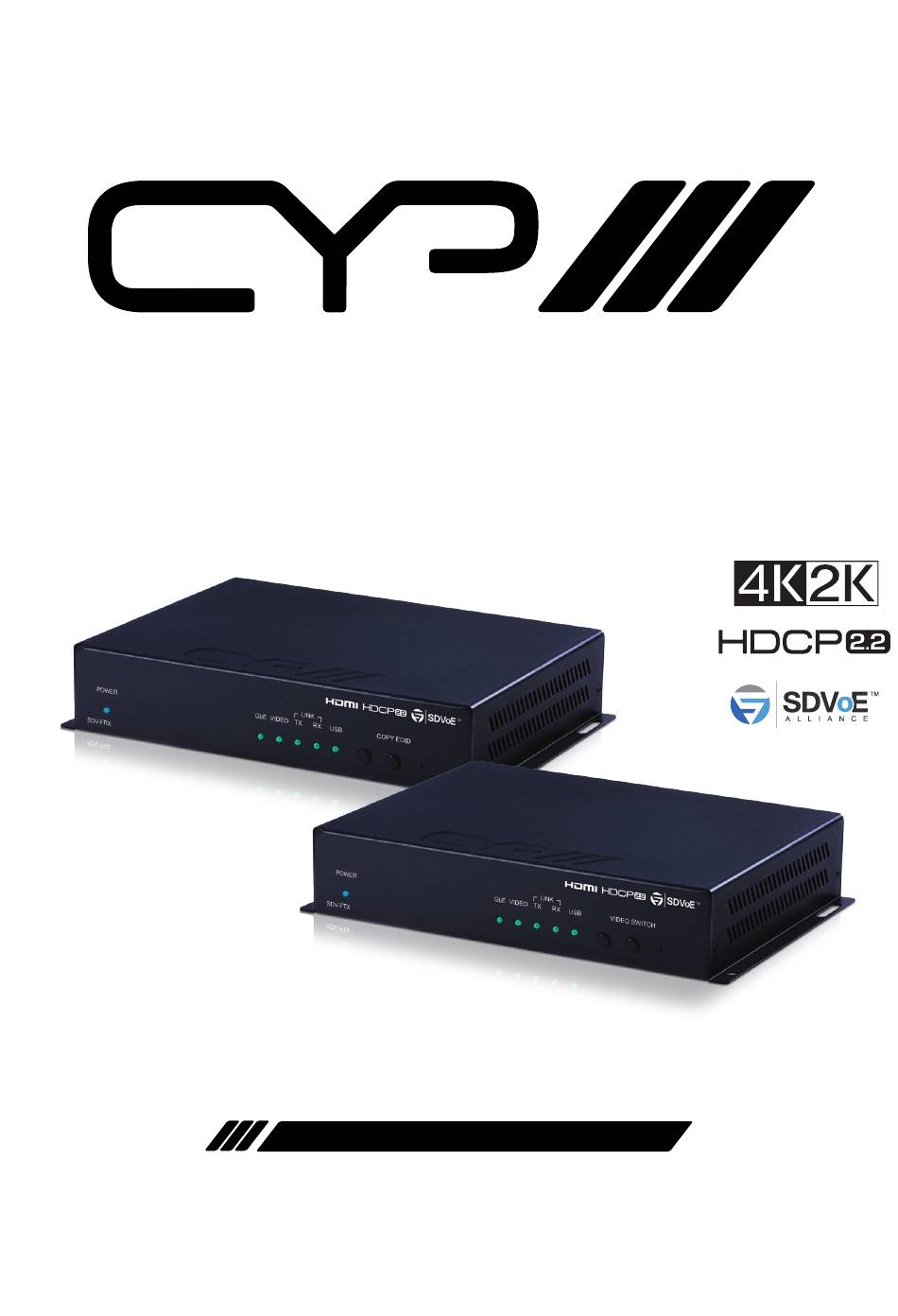

- Page 1 SDV-FTX/FRX Ultra-HDMI (4K/60) over Fiber extender OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........8 6. Operation Controls and Functions ..9 6.1 Transmitter's Front Panel ......9 6.2 Transmitter's Rear Panel ......10 6.3 Receiver's Front Panel ......11 6.4 Receiver's Rear Panel ......12 6.5 IR Cable Pinouts ........13 6.6 Basic AV Extension ........14... -
Page 6: Introduction
1. INTRODUCTION This Transmitter and Receiver set is designed for high-quality, IP routable, AV extension with minimum latency. By using a sophisticated ultra- light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams (HDMI or DisplayPort) and data. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit colour and multi-channel HD Bitstream audio can be transmitted in pass-through mode. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS HDMI or DisplayPort source equipment such as a media player, video game console, PC or set-top boxes. HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. Analogue audio receiving equipment such as headphones, audio amplifiers or powered speakers. -
Page 8: Features
5. FEATURES HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant Ultra-light compression, lossless for most content Extension up to 30km (depending on the fiber module used) Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Genlock mode only) Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream from HDMI or DisplayPort sources... -
Page 9: Operation Controls And Functions

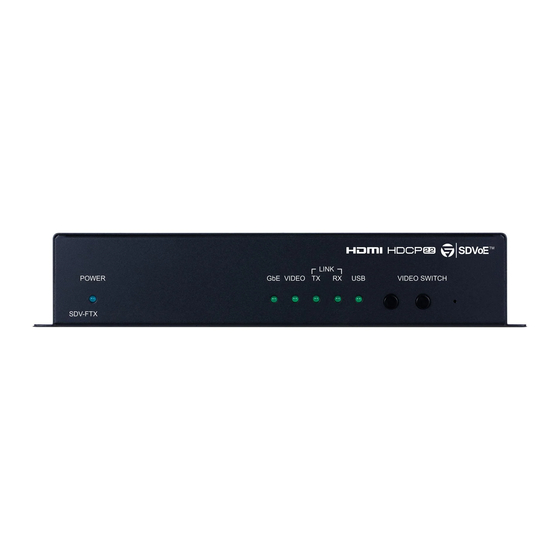

6.1 Transmitter's Front Panel LINK POWER GbE VIDEO TX VIDEO SWITCH SDV-FTX POWER LED: This LED will illuminate to indicate the unit is on and receiving power. GbE LED: This LED illuminates and blinks to indicate activity on the gigabit Ethernet port. -
Page 10: Transmitter's Rear Panel
6.2 Transmitter's Rear Panel 4 5 6 AUDIO IR OUT IR IN RS232 DP IN DC 12V HDMI IN SFP+ DP IN: Connect to DisplayPort source equipment such as a PC or laptop. HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. -
Page 11: Receiver's Front Panel
6.3 Receiver's Front Panel LINK LINK POWER POWER GbE VIDEO GbE VIDEO TX COPY EDID COPY EDID SDV-FRX POWER LED: This LED will illuminate to indicate the unit is on and receiving power. GbE LED: This LED illuminates and blinks to indicate activity on the gigabit Ethernet port. -
Page 12: Receiver's Rear Panel
6.4 Receiver's Rear Panel 3 4 5 AUDIO IR OUT IR IN RS232 DC 12V HDMI OUT SFP+ HDMI OUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. SFP+: Connect a standard SFP+ module to allow data transmission over optical fiber to a compatible Receiver. -
Page 13: Ir Cable Pinouts
6.5 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground... -
Page 14: Basic Av Extension
6.6 Basic AV Extension Point-to-Point Configuration & Operation The most basic extension configuration available is a point-to-point system with a single Transmitter connected directly to a single Receiver. In this configuration the selected input (HDMI or DisplayPort) is transmitted to the connected Receiver without modification to the audio or video format. -
Page 15: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop with RS-232 Control System DVD/Blu-ray Player HDMI & IR In & Out Analogue 1.5m Audio 60° Inputs DisplayPort RS-232 & Router 60° Input Power Supply AUDIO IR OUT IR IN RS232 DP IN DC 12V HDMI IN SFP+ Optical Fiber Cable... -
Page 16: Specifications
8. SPECIFICATIONS 8.1 Transmitter's Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Ports 1×HDMI 1×DisplayPort 1×Analogue Stereo (3.5mm) Output Port 1×10GbE LAN (SFP+) Pass-through Ports 1×IR Blaster (3.5mm) 1×IR Extender (3.5mm) 1×RS-232 (DE-9) 1×LAN (RJ-45) 1×USB (Type-B) IR Frequency 30 – 50kHz (30 – 60kHz under ideal conditions) Baud Rate Up to 115200... -
Page 17: Receiver's Technical Specifications
8.2 Receiver's Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Port 1×10GbE LAN (SFP+) Output Ports 1×HDMI 1×Analogue Stereo (3.5mm) Pass-through Ports 1×IR Blaster (3.5mm) 1×IR Extender (3.5mm) 1×RS-232 (DE-9) 1×LAN (RJ-45) 1×USB (Type-A) IR Frequency 30 – 50kHz (30 – 60kHz under ideal conditions) Baud Rate Up to 115200... -
Page 18: Video Specifications
8.3 Video Specifications Input Output 10GbE Supported Resolutions (Hz) HDMI HDMI Fiber 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 ... - Page 19 Input Output 10GbE Supported Resolutions (Hz) HDMI HDMI Fiber 1920×1080p@50/60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 ...
-
Page 20: Audio Specifications
8.4 Audio Specifications HDMI Input/Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48 Bitstream Supported Formats Standard & High-Definition Analogue Input Max Audio Level 1Vrms Impedance 10kΩ Type Unbalanced Analogue Output Max Audio Level 1Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) >... -
Page 21: Cable Specifications
8.5 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output DisplayPort Cable DisplayPort Input Fiber Cable Multi-mode Fiber (OM3) 300m Multi-mode Fiber (OM4) 550m Single-mode Fiber 30km... -
Page 22: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet ASCII American Standard Code for Information Interchange DHCP Dynamic Host Configuration Protocol DisplayPort Digital Visual Interface EDID Extended Display Identification Data Gigabit Ethernet High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television... - Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
