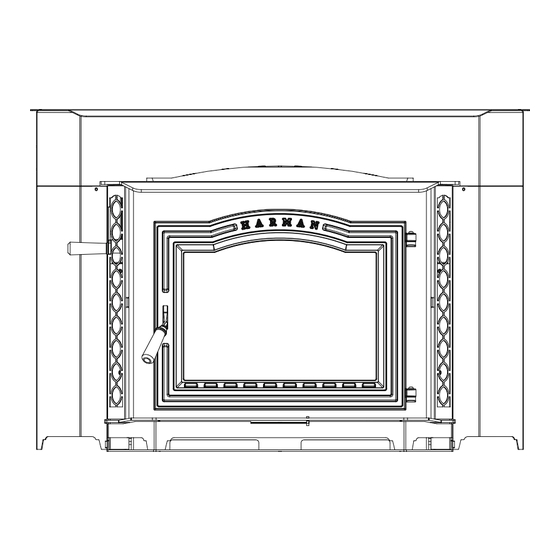

The harman 300i woodburning Fireplace Insert
R2
"Ce manuel est disponible en Français sur demande"

SAFETY NOTICE

PlEASE rEAd ThIS ENTIrE mANuAl bEFOrE YOu INSTAll ANd uSE YOur NEw rOOm hEATEr. FAIlurE
TO FOllOw INSTruCTIONS mAY rESulT IN PrOPErTY dAmAgE, bOdIlY INjurY, Or EvEN dEATh.
FOr uSE IN ThE u.S. ANd CANAdA. NOT SuITAblE FOr INSTAllATION IN mObIlE hOmES
IF ThIS APPlIANCE IS NOT PrOPErlY INSTAllEd, A hOuSE FIrE mAY rESulT. FOr YOur SAFETY, FOllOw
INSTAllATION dIrECTIONS.
CONTACT lOCAl buIldINg Or FIrE OFFICIAlS AbOuT rESTrICTIONS ANd INSTAllATION INSPECTION
rEQuIrEmENTS IN YOur ArEA.
CONTACT YOur lOCAl AuThOrITY (SuCh AS muNICIPAl buIldINg dEPArTmENT, FIrE dEPArTmENT, FIrE
PrEvENTION burEAu, ETC.) TO dETErmINE ThE NEEd FOr A PErmIT.
CETTE guIdE d'uTIlISATION EST dISPONIblE EN FrANCAIS. ChEz vOTrE CONCESSIONNAIrE dE hArmAN
hOmE hEATINg.
SAvE ThESE INSTruCTIONS.
#3-90-300101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300i and is the answer not in the manual?

Questions and answers

Related Manuals for Harman 300i

Summary of Contents for Harman 300i

  • Page 1: Safety Notice

    IN YOur ArEA. CONTACT YOur lOCAl AuThOrITY (SuCh AS muNICIPAl buIldINg dEPArTmENT, FIrE dEPArTmENT, FIrE PrEvENTION burEAu, ETC.) TO dETErmINE ThE NEEd FOr A PErmIT. CETTE guIdE d'uTIlISATION EST dISPONIblE EN FrANCAIS. ChEz vOTrE CONCESSIONNAIrE dE hArmAN hOmE hEATINg. SAvE ThESE INSTruCTIONS.

  • Page 3: Specifications

    Failure to follow instructions may result in property damage, bodily injury, or even death. hearth & home Technologies, Inc. 352 Mountain House Road Halifax, PA 17032 Model: 300i woodburning Fireplace Insert wArNINg Tested & Listed By: Omni-Test laboratories Inc. Report #: 135-S-18b-6.2 Fire risk.
  • Page 4 * heating capacity is a guideline and may differ based on climate, building construction and condition, as well as other variables. Illustrations Not To Scale The Harman 300i meets the U.S. Environmental Protection Agency’s emission limits for wood heaters sold after July 1, 1990. NOT FOr uSE IN mObIlE hOmES.

  • Page 5: Component Locations

    Date of Manufacture / Date de fabrication: 2010 2011 2012 JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC Fabriqué par: Harman Home Heating 352 Mountain House Road, Halifax PA 17032 (É.-U.) P.N. 3-90-300100 For Installation In Masonry Fireplace Only...

  • Page 6: Operation

    Like all glass, it must be treated with common sense Before you install and operate your 300i woodburning and care. Never abuse the glass by slamming the insert, please read the entire contents of this door shut or striking the glass with a heavy object.
  • Page 7 The Combustion Process Controls Two important controls - the damper bypass handle and the Combustion in the Harman 300i is precisely controlled air control lever regulate the operation and output of the stove. and is best explained in two parts.
  • Page 8 Harman 300i Wood Insert Air Control. The air control slide is located on the ash lip below the firebox door. Using this lever you will be able to vary the amount of air delivered to the fire, creating a range of heat outputs.
  • Page 9 Operating as a Fireplace. Ashes should be placed in a steel container with a tight The 300i is tested and approved to be burned with the fitting lid. The container of ashes should be moved outside front load door open and the damper open. In this mode of immediately, and placed on a noncombustible floor or operation you get a true fire sound as well as appearance.

  • Page 10: Maintenance

    If the insert’s glass is cracked or bro- ficient operation. ken, you must replace it before operating your insert. Remove pieces carefully. Replace the glass only with Harman supplied replacement glass, part # 3-40-06932; The Insert do not use substitutes. Surface To replace the glass panel, you will need to remove The insert’s exterior surface should be dusted peri-...

  • Page 11: Door Latch

    The gaskets are made of brush. When cleaning the stainless steel connector, it is fiberglass of different sizes (obtainable from your Harman recommended to use a non-metal brush. dealer) and are fixed in place with a high temperature To clean the chimney, use a specially designed gasket cement.

  • Page 12: Installation

    Harman 300i Wood Insert Installation Fireplace / Opening requirements; masonry fireplace ONlY. dimension Inches Millimeters Minimum Width 28.5 Minimum Depth Minimum Height* Minimum Hearth Height** Minimum Hearth Depth 12.5 *hEIghT mEASurEmENT dOES NOT ACCOuNT FOr FlOOr PrOTECTION mATErIAl whICh mAY bE NECESSArY.

  • Page 13: Slide-Assist Rollers

    Harman 300i Wood Insert Floor Protection requirements - cont'd; Flush hearth or raised hearths less Than 6" (152 mm) - The masonry hearth must measure a minimum of 12.5" (318 mm) from the face of the fireplace opening. The insert may not overhang the masonry hearth. For raised hearths less than 6 inches (152 mm) in height, floor protection meeting a minimum 2.02 R-value, must be installed in front of the masonry hearth and may not...

  • Page 14: Surround Installation

    Harman 300i Wood Insert Surround Installation Standard Surround #1-00-300130 Oversize Surround #1-00-300134 Custom Surround #1-00-300130-SPL The surround is made up of six (6) pieces; • Left Side • Right Side • • Top cap • (2) Support brackets Begin by installing the support brackets on each end of the top panel as shown.
  • Page 15 Harman 300i Wood Insert dO NOT CONNECT TO ANY AIr dISTrIbuTION duCT Or SYSTEm distribution blowers The blowers are already mounted to the insert for installer convenience. Each blower is secured to the insert body with three screws, as shown.
  • Page 16 Harman 300i Wood Insert warning: do not install in sleeping room. Clearances Clearance is the empty space required between the insert and the nearest combustible surface or object, such as walls, ceilings, floors, or furniture. Clearance distances may only be reduced by methods listed in the standard CAN/CSA B365 (Canada) or NFPA 211 (USA).
  • Page 17 Harman 300i Wood Insert For direct connect and positive connect masonry Fireplace requirements 1. The chimney must be at least 15 feet high but not more than 33 installations, ensure that the liner is feet high. securely connected to the insert flue 2.

  • Page 18: Handle Installation

    Harman 300i Wood Insert Installation When installing the insert, you'll need to connect the flue liner to the insert collar with a minimum of three fasteners. The flue adapter is removable for ease of installation in tighter fireplaces. Remove the flue collar from the insert by loosening the two bolts in the top.

  • Page 19: Service Parts

    300i Service Parts beginning manufacturing date: Sept. 2010 wood Insert Ending manufacturing date: Active 1-70-300100-1 (black), Ending manufacturing date: june 2011 1-70-300100-2 (Charcoal), 1-70-300100-3 (goldenfi re)) Part number list on following page. 09/11...
  • Page 20 300i Service Parts beginning manufacturing date: Sept. 2010 Ending manufacturing date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.

  • Page 21: Firebox Assembly

    300i Service Parts beginning manufacturing date: Sept. 2010 Ending manufacturing date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 22 300i Service Parts beginning manufacturing date: Sept. 2010 Ending manufacturing date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.

  • Page 23: Limited Lifetime Warranty

    Harman 300i Wood Insert Hearth & Home Technologies Inc. LIMITED LIFETIME WARRANTY Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.

  • Page 24: Warranty Conditions

    Harman 300i Wood Insert WARRANTY CONDITIONS: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation.
  • Page 25 At Harman, we build each product to a standard, not a price. This powerful heating appliance boasts uncompromising attention to detail and helps preserve our planet by using environmentally responsible fuels. (Signature of Boxer) Your premium quality hearth product designed and assembled by the experienced and skilled members at Harman in Halifax, PA, USA.
