INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: SAVE THESE INSTRUCTIONS
Model(s):

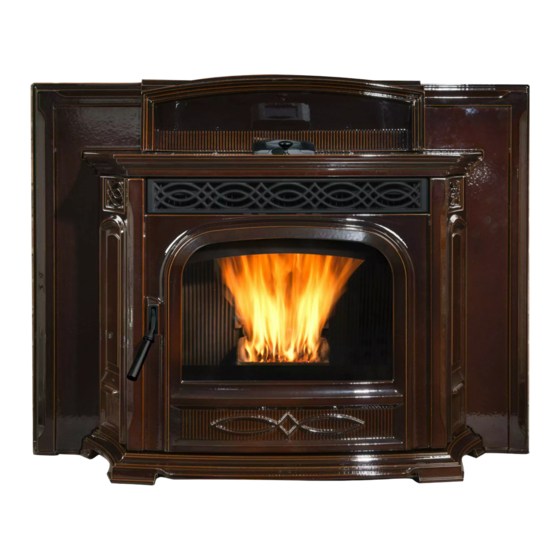

Accentra52i-TC Pellet Insert
!
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Contact local building or fire officials about restrictions
and installation inspection requirements in your area.
!
Tested and approved for wood pellets only burning of
any other type of fuel voids your warranty. When burning
higher ash content pellets more frequent cleanings may
be required.
1
Installation Manual
Installation and Appliance Setup
CAUTION
CAUTION
Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19
!
Please read this entire manual before
installation and use of this pellet fuel-
burning room heater.
Failure to follow these instructions could
result in property damage, bodily injury
or even death.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not overfire - If any external part starts to glow, you
are overfiring. Reduce feed rate. Overfiring will void
your warranty.
• Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house fire.
!
HOT SURFACES!
Glass and other surfaces are hot during
operation and cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
stove.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
NOTE
To obtain a French translation of this manual, please
contact your dealer or visit www.harmanstoves.com
Pour obtenir une traduction française de ce manuel, s'il
vous plaît contacter votre revendeur ou visitez www.
harmanstoves.com
WARNING
WARNING
3-90-00584i
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harman Accentra52i-TC
Summary of Contents for Harman Accentra52i-TC
- Page 1 When burning Pour obtenir une traduction française de ce manuel, s’il higher ash content pellets more frequent cleanings may vous plaît contacter votre revendeur ou visitez www. be required. harmanstoves.com Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i...
-
Page 2: Table Of Contents
J. Fire Safety ........20 K. Inspect Appliance & Components ....20 Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 3: Installation Standard Work Checklist
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed __________________________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ Comments communicated to party responsible____________________ by ________________________ on __________ (Builder / Gen Contractor) (Installer) (Date) 04/17 Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 4: Product Specific And Important Safety Information
T H E S T R U C T U R A L I N T E G R I T Y O F T H E MANUFACTURED HOME FLOOR, WALL, AND CEILING/ROOF MUST BE MAINTAINED. Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 5: Non-Combustible Materials Specification
(wood), and the products of combustion of such fuels, can expose you to chemicals including carbon black, which is known to the State of California to cause cancer, and carbon monoxide, which is know to the State of California to cause birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 6: Getting Started
• Insulated exterior chase in cooler climates • Avoid outside wall Windward Leeward Multi-level Roofs Recommended: NOT recommended: Outside Air Intake Outside Air Intake on windward side on leeward side Figure 2.1 Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 7: Tools And Supplies Needed
WARNING RISK OF FIRE OR EXPLOSION! Damaged parts could impair safe operation. DO NOT install damaged, incomplete or substitute components. Keep appliance dry. Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 8: Clearances
Clearances A. Appliance Dimension Diagram Dimensions are actual appliance dimensions. Use for reference only. 24-7/8” 14-3/8” 12-3/4” To Top Edge 22-3/4” Measured from steel stove body 10-1/2” To Glass 13/16” 15-9/16” 14-3/8” 41-13/16” 29-15/16” Figure 3.1 Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 9: Clearances To Combustibles & Floor Protection
12” (305mm) Mantel C = to 3/4" trim D = to 3/4" trim E = floor protection Figure 3.2 C. Minimum Opening - Masonry and Manufactured Fireplaces Location Inches Millimeters F Minimum Width 24-7/8 G Minimum Depth 15-9/16 H Minimum Height #1-90-574240 H Minimum Height #1-90-574220 H Minimum Height #1-90-574200 Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 10: Termination Location And Vent Information
DO NOT REMOVE BRICKS OR MORTAR FROM THE possibility of condensation. Insulation EXISTING FIREPLACE. alone should not be used to seal the damper opening. For quick and easy installation, purchase the steel Harman Block Off Plate, 1-00-25625. Figure 4.2 Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... - Page 11 12" min. 36” CAUTION KEEP COMBUSTIBLES (SUCH AS GRASS, LEAVES, ETC.) AT LEAST 3 FEET AWAY FROM THE FLUE 12” min. OUTLET ON THE OUTSIDE OF THE BUILDING. Figure 4.4 Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i...
- Page 12 Figure 4.5 Note: If the Harman® Accentra52i-TC Pellet Insert is installed into a factory built wood burning fireplace, this label (Harman® part #3-90-674204) MUST be attached to the altered fireplace. This label is included in the Manufactured fireplace installation kit.
- Page 13 Installing the Accentra52i-TC Pellet Insert into a Harman Zero Clearance Cabinet If you don’t have a factory built fireplace or masonry fireplace, the Accentra52i-TC Pellet Insert can also be installed into the Harman Zero Clearance Cabinet, Part # 1-00-574323. This is the only permissible way to install the Accentra52i-TC Pellet Insert without a suitable fireplace. After the Harman Zero Clearance Cabinet is installed, type PL vent pipe, wall pass-throughs and terminations are used (Note: Flex pipe is not approved these types of installation). Detailed installation instructions are included with the Zero Clearance Cabinet. These same installation instructions can also be found on-line at www.harmanstoves.com. Below are two sample installations using the Harman Zero Clearance Cabinet. Harman Zero Clearance Cabinet Requirements for Terminating the Venting through an Exterior Wall.
-
Page 14: Venting & Use Of Elbows
3 screws at each joint. Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 15: Battery Back-Up Power
Use only Harman® approved battery back-up devices. Note: The UPS provides safe shut-down only. It is not Other products may not operate properly, can create intended for continued operation. unsafe conditions or damage your appliance. Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 16: Outside Air
After adjusting the intake assembly for the flue size, secure the assembly to the top of the chimney with some form of anchors or screws. Masonry Flue Liner Masonry Chimney Figure 4.8 Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 17: Negative Pressure
• Inadequate draft due to environmental conditions • Down drafts • Tight sealing construction of the structure • Mechanical exhausting devices Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... - Page 18 Lining Systems for New Masonry Chimneys. Accentra52i-TC Pellet Insert operates with a positive vent pressure, we specify that the joints also be sealed with silicone. Where passing through an exterior wall or roof, be sure to use the appropriate pass-through device providing an adequate vapor barrier. Venting manufacturers generally provide these pas-through devices. Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i...
-
Page 19: Mobile Home Installation
Roof Flashing 8. Installation shall be in accordance with the Manufacturers Home & Safety Standard (HUD) CFR 3280, Part 24. WARNING Asphyxiation Risk: Joist Shield/Firestop NEVER INSTALL INTO A SLEEPING ROOM Approved Class”L” or “PL” Pellet Vent Consumes oxygen in the room WARNING Installation must comply with Manufactured Home and Safety Standard (HUD), CFR 3280, Part 24 Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 20: Fire Safety
MINIMUM LOW BURN RATE THAT MUST NOT BE ALTERED. IT IS AGAINST FEDERAL REGULATIONS TO ALTER THIS SETTING OR OTHERWISE OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT WITH OPERATING INSTRUCTIONS IN THIS MANUAL. Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 21: Appliance Setup
Figure 5.1 Figure 5.2 Mounting Frame (2) Spring Latches Ash Pan (One on each side) The drawing above shows the major sub components of the Accentra52i-TC. Take notice as to where the spring latches are located. Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 22: Beginning The Installation
Figure 5.4a ¼”-20 x 5/8” with ¼” Nut ¼”-20 x 5/8” with ¼” Nut Note: The wings mount on the rear side of the mounting frame Figure 5.4 flange below the notch, and on the front side above the notch. Latch Figure 5.6 Figure 5.4a Lifting tab Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... - Page 23 Figure 5.10. 1/2" threaded jack bolts & coupler weldment and 1/4-20 x 5/8” Flange bolts Leveling bolt holes are outer, threaded holes. Anchor bolt holes are inner non-threaded Figure 5.9 Figure 5.10 holes Figure 5.12 Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i...
-
Page 24: Electrical Connection Installation
Wireless Remote Sensor is highly recommended. Place the sensor end so that the sensing tip is laying near the ash lip rail. Figure 5.14. Front Door Loosen Bolts Figure 5.16 Room Sensor Figure 5.14 Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... - Page 25 Note: There are 2 Tek screws located in the ash lip Remove adjustment tool, close door, check alignment to rail that can be loosened for adjustment. Figure 5.21. load door and gap width for consistency. Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i...
-
Page 26: Reminders
Always inspect the wiring harness and the 11 pin socket (large white flat plug where all of the power wires terminate.) Always inspect the wiring harness where the wires transfer from the control to the rear inside of the body. Make sure there are no worn or frayed areas. Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 27: Firebox Draft And Combustion Fan Rpm
RPM of 3200 due to the density of the ambient air.) All RPM displays could vary +/- 50 from that of the set RPM’s. Allow several minutes for the fan motor to warm up. Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 28: Reference Materials
RESULT IN A HOUSE FIRE. USE ONLY APPROVED FUELS AND OPERATION GUIDELINES CAUTION DO NOT USE MAKESHIFT COMPONENTS OR OTHER COMPROMISES WHEN INSTALLING THIS APPLIANCE. Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... -
Page 29: Wiring Diagram
B. Wiring Diagram CABLE GOING TO TOUCH CONTROL SKY-BLUE DARK BLUE DARK BLUE SKY-BLUE DARK BLUE SKY-BLUE BLACK SKY-BLUE SKY-BLUE YELLOW SKY BLUE BLACK CAPACITOR BLACK WHITE 11 PIN PLUG Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i... - Page 30 352 Mountain House Road, Halifax, PA 17032 www.harmanstoves.com Please contact your Harman dealer with any questions or concerns. ® For the location of your nearest Harman dealer, ® please visit www.harmanstoves.com. Printed in U.S.A Harman® • Accentra52i-TC Installation Manual_R8 • 2017 -___ • 01/19 3-90-00584i...
