Basic Operation

2.1

Main Components and Functions

Main Unit

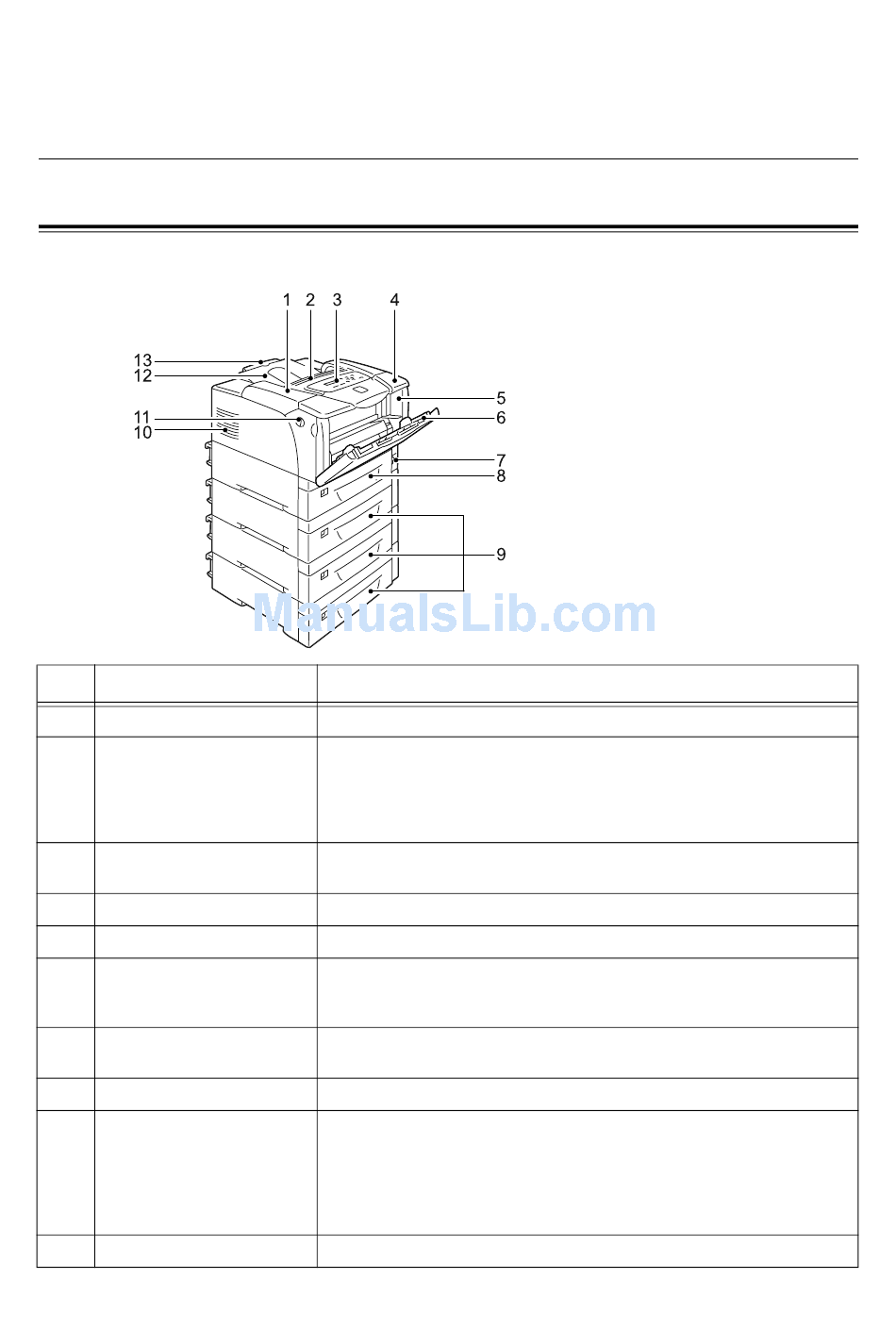

Front/Left View
No. Name
1 Top cover
2 Ventilation hole
3 Control panel
4 Upper cover
5 Front cover
6 Tray 1 (Bypass tray)
7 Power switch
8 Tray 2
9 Trays 3, 4 & 5
550 sheet feeder (optional)
10 Ventilation hole
Opened when replacing the print cartridge or clearing paper jams.
Releases heat to prevent the interior of the printer from overheating.
Important
• Do not place any objects on the ventilation hole. Blocking the ventilation hole
causes heat build-up in the printer, which causes the printer to malfunction.
Consists of the control buttons, indicator lamps, and a display. For details, refer
to "Control Panel" (P. 22).
Opened when installing the duplex unit (optional) or cleaning the feed rolls.
Opened when replacing the print cartridge or clearing paper jams.
Load paper here when printing using Tray 1. This tray can accommodate plain
paper and special media such as postcards and envelopes. It can be extended
in two stages as necessary.
Switches the printer on/off. Pressing this to the <|> position switches the power
on, and pressing it to the <O> position switches the power off.
Load paper here. This is the standard paper tray.
Load paper here when the optional 550 sheet feeder (hereinafter referred to as
"sheet feeder") is installed. The above illustration shows the printer with three
sheet feeders (optional).
Note
• Trays 3, 4, and 5 can be added to the Phaser 5335.
Releases heat to prevent the interior of the printer from overheating.
Description
2.1 Main Components and Functions
19
