Summary of Contents for NTI ST-C6USBH-300

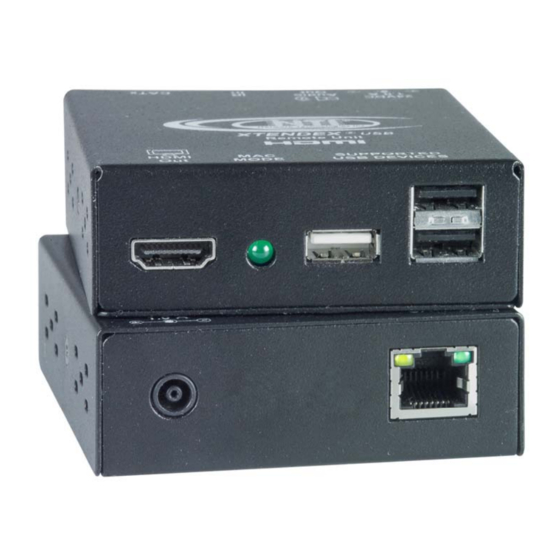

- Page 1 ® XTENDEX Series ST-C6USBH-300 ST-C6USBHU-300 ST-C6USBH-IR-300 ST-C6USBHU-IR-300 300 FOOT USB, HDMI AND IR EXTENDER Installation and Operation Manual ST-C6USBHU-300 Local and Remote Unit MAN134 Rev Date 2/25/2014...
- Page 2 Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Connectors and LEDs ..............................3 Limitations ..................................4 Preparation for Installation .............................. 4 Installation ..................................5 Installing The Remote Unit ............................5 Installing The Local Unit .............................. 6 Connect the CATx Cables ............................6 Plug-in and Boot Up.............................. -
Page 4: Introduction
NTI XTENDEX 300 Foot HDMI and IR Extender INTRODUCTION The XTENDEX Series ST-C6USBH-300 CAT6 HDMI Extender (XTENDEX) provides remote KVM (USB keyboard, USB mouse and HDMI monitor) access to a USB computer up to 300 feet over CAT5e/6/6a/7 cable. Each extender consists of a local unit that connects to a USB computer and a remote unit that connects to an HDMI monitor and USB keyboard and mouse as much as 300 feet away via Category 5e,6, 6a or 7 twisted-pair cable. -
Page 5: Materials
HDMI male-male cable to connect a HDMI source or display (Order NTI # HDMI-xx-MM where xx=3, 6, 9,14,20,30, 50,75,100 and 150 foot cable). DVI-D male to HDMI-A male single link cable to connect a DVI source or display (Order NTI # DVI-HDMI-xx-MM where xx=3, 6, 10, or 15 foot cable) Always use the shortest possible cable for best performance. -
Page 6: Connectors And Leds
NTI XTENDEX 300 Foot HDMI and IR Extender CONNECTORS AND LEDS LABEL CONNECTOR DESCRIPTION 24VDC- 1.0A 1.0mm Power Jack connection jack for the AC adapter (only the Local or the Remote Unit needs to be powered, not both) IR Out 3.5mm Stereo Jack... -
Page 7: Limitations
Locations should be chosen for the monitor that also has space to connect the Remote unit within the distance provided by the cables. If extension cables are needed, contact NTI for the cables required. • The CATx cables must be run to the locations where the Remote and Local units will be connected. Be careful to route the cables away from any sources of magnetic fields or electrical interference that might reduce the quality of the video signal (i.e. -
Page 8: Installation
NTI XTENDEX 300 Foot HDMI and IR Extender INSTALLATION Installing The Remote Unit Position the Remote Unit such that the CATx cable, the monitor cable(s), and device cables can each reach the Remote Unit without putting strain on the cables. -
Page 9: Installing The Local Unit
NTI XTENDEX 300 Foot HDMI and IR Extender Installing The Local Unit 1. Connect an HDMI-3-MM (supplied) or DVI-HDMI-xx-MM cable (page 2) between the CPU and the "HDMI In" connector on the Local Unit. 2. Connect a USB2-AB-1M-5T USB cable (supplied) between a USB port on the CPU and the “USB CPU” connector on the Local Unit. -
Page 10: Plug-In And Boot Up
NTI XTENDEX 300 Foot HDMI and IR Extender Plug-in and Boot Up Plug the power cord from the monitor into the power outlet. Connect an AC adapter power connector to the 24VDC port on either the Remote Unit or the Local Unit. Plug the AC adapter into a power outlet. -
Page 11: Infrared Control
NTI XTENDEX 300 Foot HDMI and IR Extender INFRARED CONTROL Model ST-C6USBH(U)-IR-300 includes ports for connecting an infrared emitter and receiver (included) to work in conjunction with the IR remote control used to operate the CPU. Connect the receiver to the “IR IN” port on the Remote Unit and the emitter to the “IR OUT”... -
Page 12: Mac Mode
NTI XTENDEX 300 Foot HDMI and IR Extender MAC MODE MAC Mode enables the user to connect the Local Unit to a MAC CPU. MAC Mode configures the Local Unit for passing mouse information to the MAC CPU. This is useful when the user wants to use mouse drivers provided by the mouse vendor, which allows the use of programmable functions for each mouse button. -
Page 13: Technical Specifications
NTI XTENDEX 300 Foot HDMI and IR Extender TECHNICAL SPECIFICATIONS Video Video Compatibility PC Resolution up to 1920x1200 @60Hz / HDTV resolution up to 1080p @60Hz Video Connectors HDMI Type A Female Input Video Signal TMDS Video Color Format Standard (24bit); Deep color (30,36bit);RGB; 4:2:2; 4:4:4 HDMI Version HDMI 1.3a... -
Page 14: Interconnection Cable Wiring Method
NTI XTENDEX 300 Foot HDMI and IR Extender INTERCONNECTION CABLE WIRING METHOD The CATx connection cables between the Remote and Local are terminated with RJ45 connectors and must be wired according to the EIA/TIA 568 B industry standard. Wiring is per the table and drawing below. -
Page 15: Troubleshooting
NTI XTENDEX 300 Foot HDMI and IR Extender TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise.
