Cos-X-Xx: Micro Head Camera Flexible Or Semi Rigid - visual engineering MKIIID User Manual

Camera User Manual Visual Engineering Technologies Ltd.
camera to rotate around a point in space centred on the pinhole lens's focal point. Using
this method the camera aperture can be <2mm, whilst allowing the camera to move +/- 30°
in both pan and tilt.
By utilizing newly available micro cameras, motors & electronics our designers can fit this
functionality into a package 70mm wide, 40mm tall and 50mm deep. The packages external
dimensions greatly increase the options for concealment.
The MKX runs from 12V DC and natively operates using the Sony VISCA command protocol.
Other protocols are available.
The MKX is available in a range of focal lengths to suit most applications. Standard lengths
are 8, 10 or 15mm.

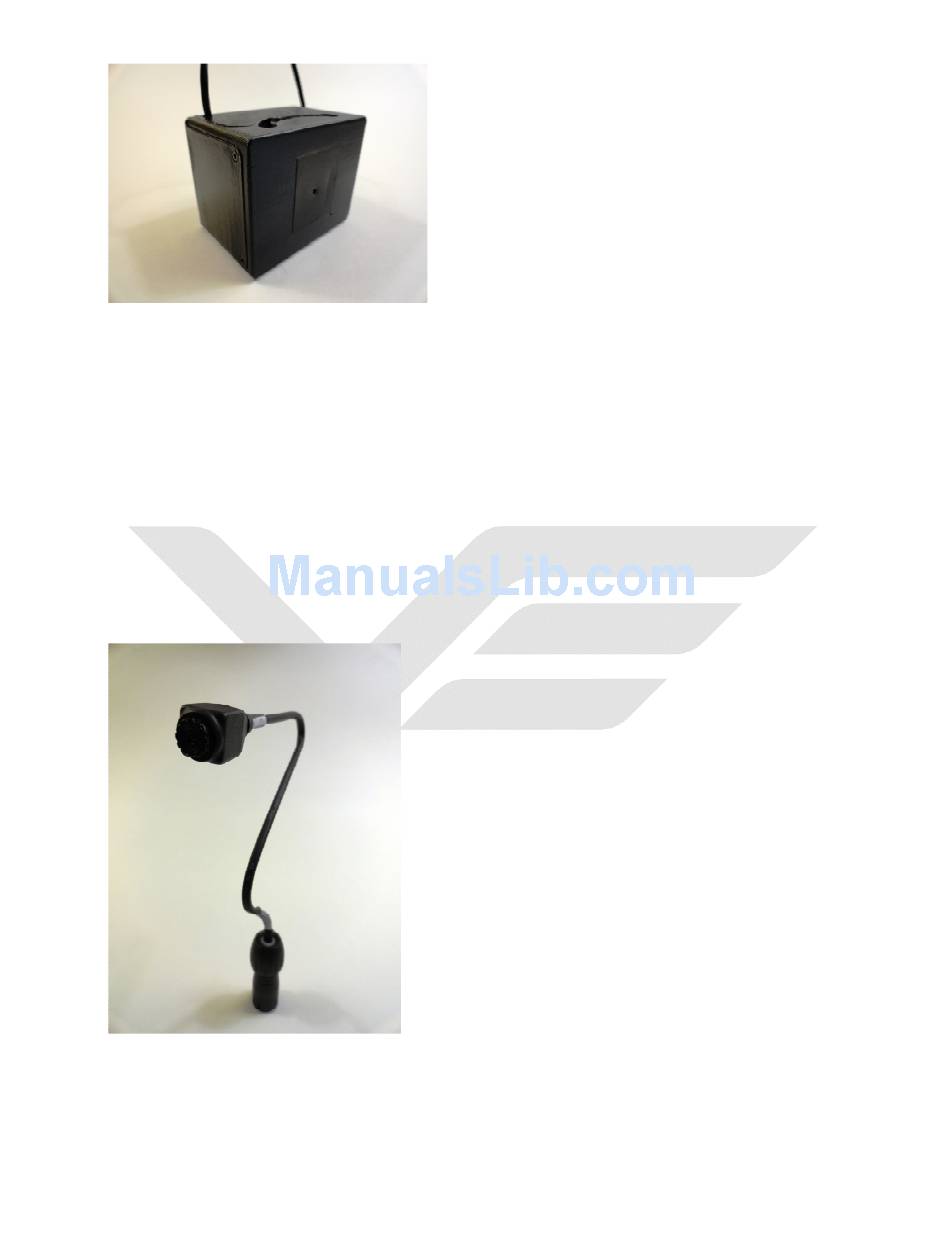

COS-X-XX: Micro Head Camera Flexible or Semi Rigid

The COS camera devices incorporates a tiny, system-on-chip (SOC) sensor, and it's necessary
ancillary circuitry into a weatherproof package measuring just 23x12.5x12.5mm.
The camera itself is a marvel of miniaturisation producing a resolution of 520 TVL. Other features of
the camera include wide dynamic range and excellent low light performance (0.008 lux).
The camera is offered in two formats, PAL or NTSC and can be purchased with an optional semi rigid
cable, allowing the camera head to be posed with it's own cable to frame the shot required
Subject to change without notice E&OE
