Camera User Manual Visual Engineering Technologies Ltd.
is accomplished via Sony VISCA over RS232. VE manufacture a range of controller / monitors
compatible with this camera. Other control protocols are available on request.
The outer casing is manufactured from Delrin, shot blasted to reduce reflections and coated
to prevent moisture ingress. All external mating surfaces are gasket sealed to maintain it's
IP67 rating.

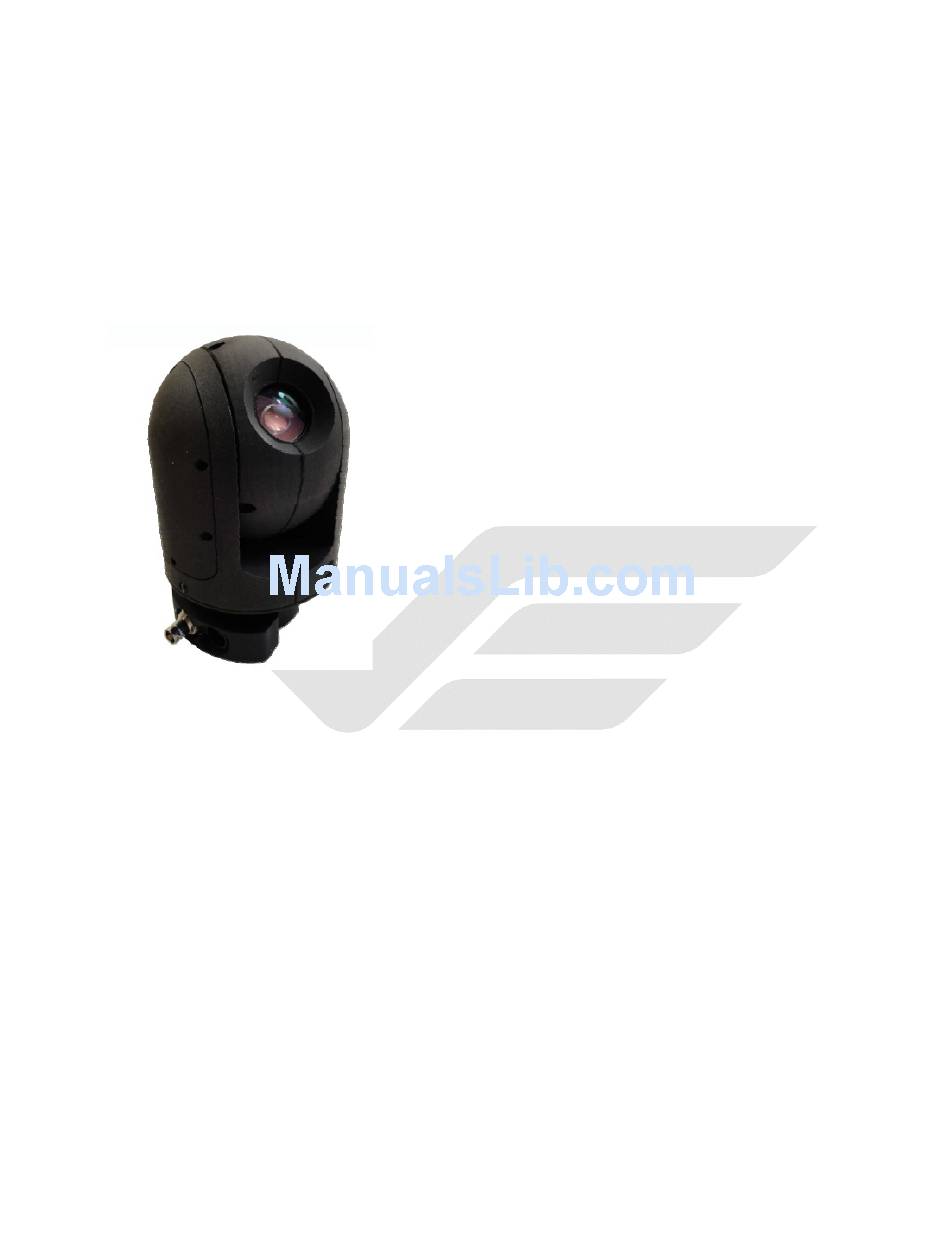

MKIIIH: High Definition IP67 PTZ Camera

The MKIIIH incorporates a high definition block camera based around a 10x optical zoom
lens (Sony FCB-H11).
An internal infra-red cut filter removal mechanism is used to allow the camera to operate in
both day and night modes.
The high definition signal is passed as digital component across the slip ring, and converted
to HDSDI in the base of the unit. This allows for the best possible HDSDI signal from the
camera. Signal processing is possible prior to the HDSDI conversion, allowing the future
inclusion of features such as image stabilization and complex motion detection.
The PTZ utilises the VE standard connector providing power and data to the unit, the HDSDI
connection is made via a BNC connector.
The pan and tilt drive trains are actuated by gearless stepper motors, reducing the
operational noise to a minimum. Pan and tilt speeds are zoom factor corrected, giving fine
control over the entire range of the lens. Remote control of both the camera and pan and
tilt drives is accomplished via Sony VISCA over RS232. Controllers are available.
The outer casing is manufactured from Delrin, shot blasted to reduce reflections and coated
to prevent moisture ingress. All external mating surfaces are gasket sealed to maintain it's
IP67 rating.
