- Page 1 CH-1106TX & RXN HDMI over CAT5e/6 Transmitter and Receiver Set with IR Source Control Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ........ 1 5. Features ............2 6. Operation Controls and Functions ... 3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 IR Cable Pin Assignment ...... -
Page 6: Introduction
1. INTRODUCTION This HDMI over CAT5e/6 Transmitter and Receiver Set with IR Source Control can extend HDMI signals over dual CAT5e/6 cabling up to 45m. It has the added benefit of allowing the control of a source device with your existing Remote Control with the included IR Extender and Blaster cables. -
Page 7: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI 1.0 compliant • Supports high definition digital video and lossless, compressed digital audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) • Supports dual CAT5e/6 cables for Video/Audio and data/DDC transmission •... -
Page 8: Operation Controls And Functions

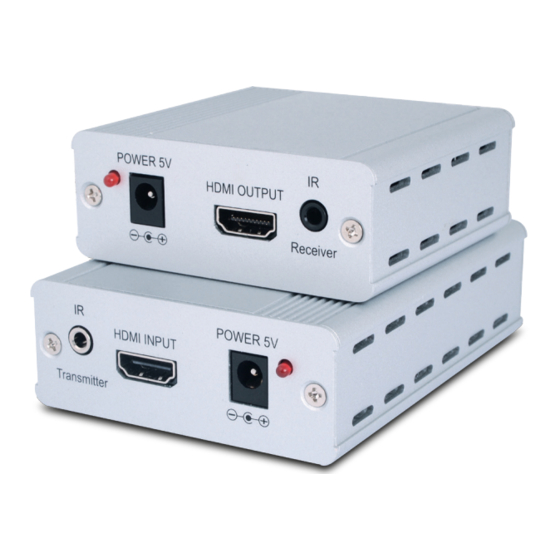

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear POWER 5V HDMI INPUT Transmitter VIDEO CAT6 OUTPUT IR TRANSMITTER Connect to the supplied IR blaster cable for IR signal transmission. Place the IR blaster in direct line of sight of the equipment to be controlled. -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels Front Rear POWER 5V HDMI OUTPUT Receiver VIDEO CAT6 INPUT VIDEO INPUT Connect the video output of the transmitter to the video input of the receiver using a CAT5e/6 cable. DDC INPUT Connect the DDC output of the transmitter to the DDC input of the receiver using a CAT5e/6 cable. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Ground 6.4 RJ-45 Pin Definition VIDEO TMDS2+ TMDS2- TMDS1+ TMDS1- Power 5V TMDS0+ TMDS0- TMDSC+ TMDSC-... -
Page 11: Connection Diagrams
7. CONNECTION DIAGRAMS 7.1 Typical Connection Example Blu-ray Player 1.5m 60° IR Blaster HDMI Input Power Supply POWER 5V HDMI INPUT Transmitter VIDEO CAT6 OUTPUT CAT5e/6 Cables VIDEO Optional Dual CAT5e/6 Repeater CAT6 INPUT VIDEO VIDEO (e.g. CH-108) CAT6 OUTPUT CAT6 OUTPUT CAT5e/6 Cables... -
Page 12: Input Connection Examples
7.2 Input Connection Examples... -
Page 13: Output Connection Examples
7.3 Output Connection Examples... -
Page 14: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Transmitter 1×HDMI, 1×IR Blaster, 1×CAT5e/6 Output Video, 1×CAT5e/6 Output DDC Receiver 1×HDMI, 1×IR Extender, 1×CAT5e/6 Input Video, 1×CAT5e/6 Input DDC HDMI Input Cable 1080p/8-bit (6 m) HDMI Output Cable 1080p/8-bit (10 m) CAT5e/6 Cable 1080p/8-bit (45 m) Power Supply 5 V/1 A (US/EU standards, CE/FCC/UL certified) -
Page 15: Compatible Products
8.2 Compatible Products The models (Daul CAT5e/6) listed below are compatible with each other: • CH-106TX/CH-106RX/CH-106TXN/CH-106RXN • CH-1106TX/CH-1106RX/CH-1106RXN • CMLUX-4H4CAT • CLUX-1H8CAT • CLUX-1H4CAT • CLUX-1CAT8H • CLUX-1CAT4H • CLUX-22HC • CH-108 9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
