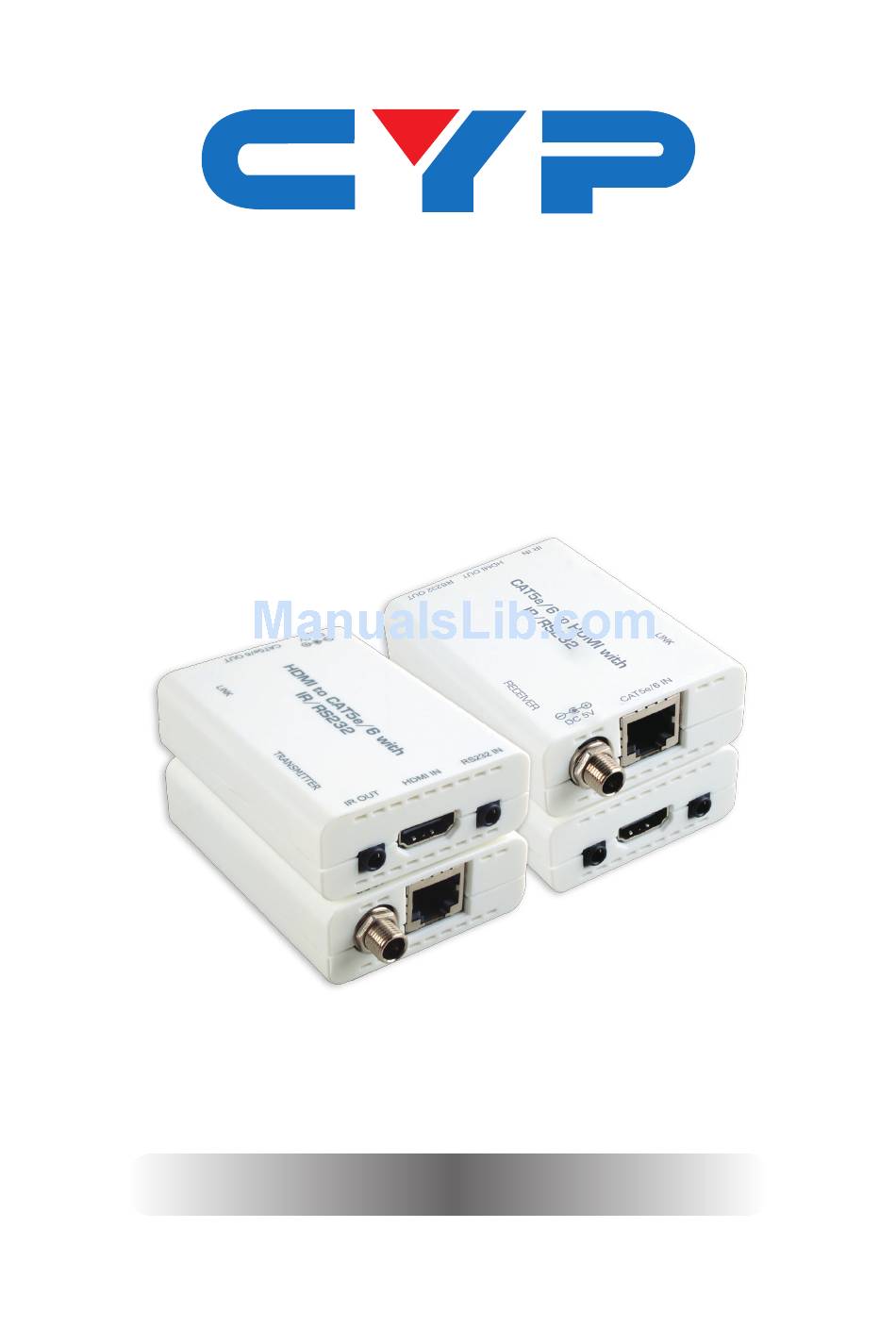

Page 1: Operation Manual

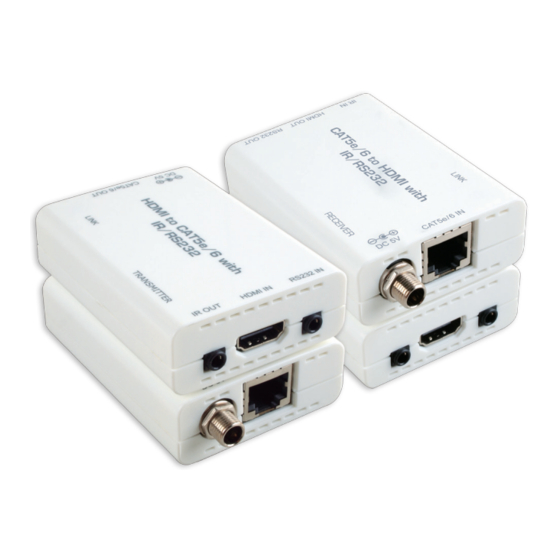

CH-513TXL/RXL HDMI over CAT5e/6 Extender with IR/RS-232 Operation Manual Operation Manual... - Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......... 1 5. Features ............2 6. Operation Controls and Functions .... 3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 Transmitter and Receiver Top Panels .. -
Page 6: Introduction
1. INTRODUCTION The HDMI Extender over single CAT5e/6 incorporating IR and RS-232 signal transfer allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 meters (1080p) and supports High Definition Audio and 3D signals. -
Page 7: Features
5. FEATURES • HDMI with 3D, 4K×2K support, HDCP and DVI compliant • Complies with the HDBaseT-Lite class • Supports HDMI (including HDCP) over a single CAT5e/6 up to 60m • Full HD resolution support (1080p@60Hz/36-bit), 3D and 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels DC 5V CAT5e/6 OUT IR OUT HDMI IN RS232 IN IR OUT/Blaster: Connect to the supplied IR blaster for IR signal transmission to the source equipment. Place the IR blaster in direct line-of-sight of the equipment to be controlled. -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels DC 5V CAT5e/6 IN IR IN HDMI OUT RS232 OUT DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. CAT5e/6 IN: Connect to the transmitter unit with a single CAT5e/6 cable for transmission of all data signals. -
Page 10: Transmitter And Receiver Top Panels
6.3 Transmitter and Receiver Top Panels LINK CAT5e/6 to HDMI with HDMI to CAT5e/6 with IR/RS232 IR/RS232 LINK TRANSMITTER RECEIVER LINK LED: This LED will illuminate in blue when the devices are connected with a CAT5e/6 cable. If the data transmission has an error the LED will blink. -
Page 11: D-Sub 9-Pin Definitions
6.5 D-Sub 9-Pin Definitions DEFINITIONS TxD/RxD RxD/TxD... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player Blu-ray Player 1.5m 1.5m IR Blaster IR Blaster 60° 60° RS-232 Cable Power Power Supply Supply CAT5e/6 CAT5e/6 Power Power (60m) (60m) Supply Supply IR Extender IR Extender HDMI Cable HDMI Cable RS-232 RS-232 Cable Cable 60°... -
Page 13: Specifications
8. SPECIFICATIONS Video Bandwidth 300 MHz/10.2 Gbps Transmitter Input 1×HDMI, 1×RS-232 Output 1×RJ45, 1×IR Blaster Receiver Input 1×RJ45, 1×IR Extender Output 1×HDMI, 1×RS-232 ESD Protection Human Body Model: ±8kV (air-gap discharge) ±4kV (contact discharge) Power Supply 2×5 V/2.6 A DC (US/EU standards, CE/ FCC/UL certified) Dimensions 55 mm (W)×82 mm(D)×22.5 mm (H)/each... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH513TXLRXL...
