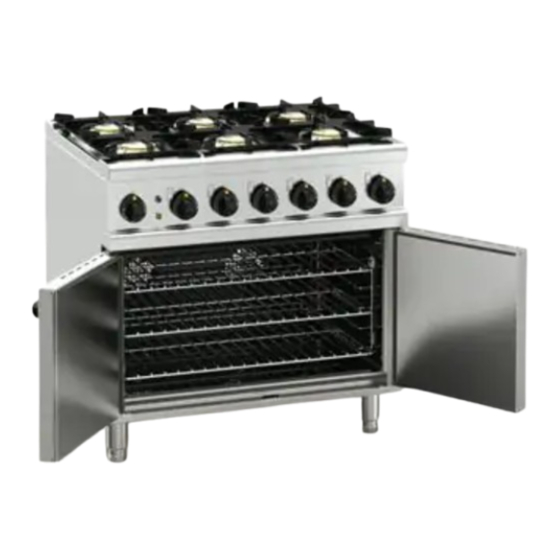

Dual fuel oven ranges
Hide thumbs
Also See for OD7006:
Subscribe to Our Youtube Channel
Related Manuals for Lincat OD7006
Summary of Contents for Lincat OD7006
- Page 1 OD7006 & OD7007 Dual Fuel Oven Ranges USER, INSTALLATION, SERVICING AND CONVERSION INSTRUCTIONS For use in GB & IE IS433 ECN3503...
-
Page 2: Important Information
Details are available from your local distributor or direct from us. Used for the purposes for which it is intended, and with careful maintenance as outlined in this User Guide, your Lincat product will give you years of trouble free service. IMPORTANT INFORMATION Please read all of the safety and operating instructions carefully before using this product. -
Page 3: Table Of Contents
CONTENTS Contents Page Customer Information………………………………………………………. Warnings and Precautions………………………………………………… Technical Data……………………………………………………………….. Commissioning………………………………………………………………. Check List of Enclosures…………………………………………………... Installation…………………………………………………….……………… Conversion of Gas Types………………………………………………….. User…………………………………………………………………………….. 10-11 Servicing ……………………………………………………………………… Component Replacement ………………………………………….……… 12-14 Spare Parts List……………………………………………………………… Fault Finding…………………………………………………………………. Wiring Diagrams…………………………………………………………….. Service information………………………………………………………….. Guarantee………………………………………………………….………….. IS433 ECN3503... -
Page 4: Warnings And Precautions
WARNINGS AND PRECAUTIONS It is mandatory that all appliances are installed, commissioned and serviced by a qualified and competent person as defined by the regulations in force in the country of installation. Failure to comply will invalidate the warranty. WARNING! This appliance must be installed by a competent installation engineer in accordance with the installation instructions, and should conform to the following requirements: •... -
Page 5: Technical Data
TECHNICAL DATA OD7006 OD7007 Model Dimensions Overall Height (mm) Width (mm) Depth (mm) Weight (kg) Hob Cooking Surface w x d (mm) 600 x 600 900 x 600 Usable Oven Capacity w x d x h (mm) 500 x 540 x 400... -
Page 6: Check List Of Enclosures
Warranty Card User Instructions SERIAL NUMBER Each appliance manufactured at Lincat has a unique identifying number found in the top NOTE right hand corner of the data plate attached at the rear of the appliance. Please record that number in the space provided should it be required for future reference. - Page 7 The gas inlet connection is at the rear of the appliance. The pipe work should be of adequate size but not smaller than the gas inlet connection at the rear of the appliance, i.e. Rp ½” BSP (OD7006) & Rp ¾” BSP (OD7007).
-
Page 8: Conversion Of Gas Types
Conversion of Gas Type – Injector Changes ∅ ∅ ∅ ∅ Model Inlet Pressure Injector Mark Part No. 1.90 JE252 x 4 OD7006 20 mbar JE216 x 4 1.90 JE252 x 6 OD7007 20 mbar JE216 x 6 1.20 JE253 x 4... - Page 9 • Remove the three pan supports AA, together with the control knobs CC. • Remove the fascia panel BB fixing screws EE from the underside of the panel. Hob Valve Bypass Injectors • Remove the bypass injectors C from each of the hob burner control valves B.
- Page 10 • Test all previously dismantled joints for soundness. • Functionally operate the appliance to the new operating pressure as detailed in page 7. USER INSTRUCTION APPLIANCE USE This appliance is only for professional use and should only be used by qualified personnel. Ensure that the person responsible understands how to light, safely operate, clean and shut down the appliance and is made aware of the position and operation of the gas isolating cock in the event of an emergency.
- Page 11 After operation, some parts of the appliance will remain hot for a period of time; care should be taken to avoid risk of burns. CLEANING Ensure the appliance is cool and the gas supply is isolated before commencing cleaning. After use wash the unit down with a warm detergent solution. Frequently check the burner cap ports for blockages.
-
Page 12: Servicing
SERVICING SERVICE ACCESS To access and service the gas control valves • Remove the control knobs and fascia panel to gain access to the valves. • Remove the two screws securing the valve boss and carefully withdraw the spindle from the valve. •... -
Page 13: Component Replacement
COMPONENT REPLACEMENT Access to Hob components can be more easily gained by removal of the the hob top (as shown below) rather than removing the fascia. HOB TOP ACCESS PANEL FASCIA FIXING SCREWS HOB TOP FASCIA FIXING SCREWS CONTROL KNOB HOOK HOB OVER FASCIA BEFORE FASTENING AT... - Page 14 • Fit the new burner body and re-assemble parts. Oven Fans • Ensure that the gas supply to this unit is turned off and the electrical supply is disconnected. • Remove the oven shelves. • Loosen the fan guard screws and lift off the keyhole slots. •...
-
Page 15: Spare Parts List
CA145 125mm Un-Braked Swivel Castors All models CO214 Contactor All models DO73 Door Catch Assembly All models EL149 Element – 4kW OD7006 EL248 Element – 3kW OD7007 FA12 LHS Fan/Motor Assembly OD7007 FA102 RHS Fan/Motor Assembly All models HA77 Door Handle... -
Page 16: Fault Finding
FAULT FINDING Burner/s will not light or stay lit • Is there gas at the burner? Check injector for blockages Are thermocouple connections loose? Tighten connections Is the thermocouple voltage less than 15mV? Replace thermocouple Is the valve damaged? Replace valve Recheck system •... - Page 17 OD7006 Wiring (E356) TE14 USE OUTER PAIRS OF TERMINALS ONLY NO CONNECTIONS TO INNER PAIR OF CONTACTS CO214 TH63 NE39 GREEN TH46 EL149 FA12 NE40 AMBER SW58 TO CHASSIS OD7007 Wiring (E329) NE39 Connect to GREEN inner SW58 NEON bulkhead...
-
Page 18: Service Information
Gas catering equipment should be routinely serviced to ensure a long trouble free life. It is recommended that this appliance is serviced every 6 months by a competent gas engineer. For help regarding the installation, maintenance and use of your LINCAT equipment, please call:- LINCAT GROUP SERVICE HELP DESK... - Page 19 Incorrect installation, maintenance, modification or unauthorised service work. IS433 ECN3503...
