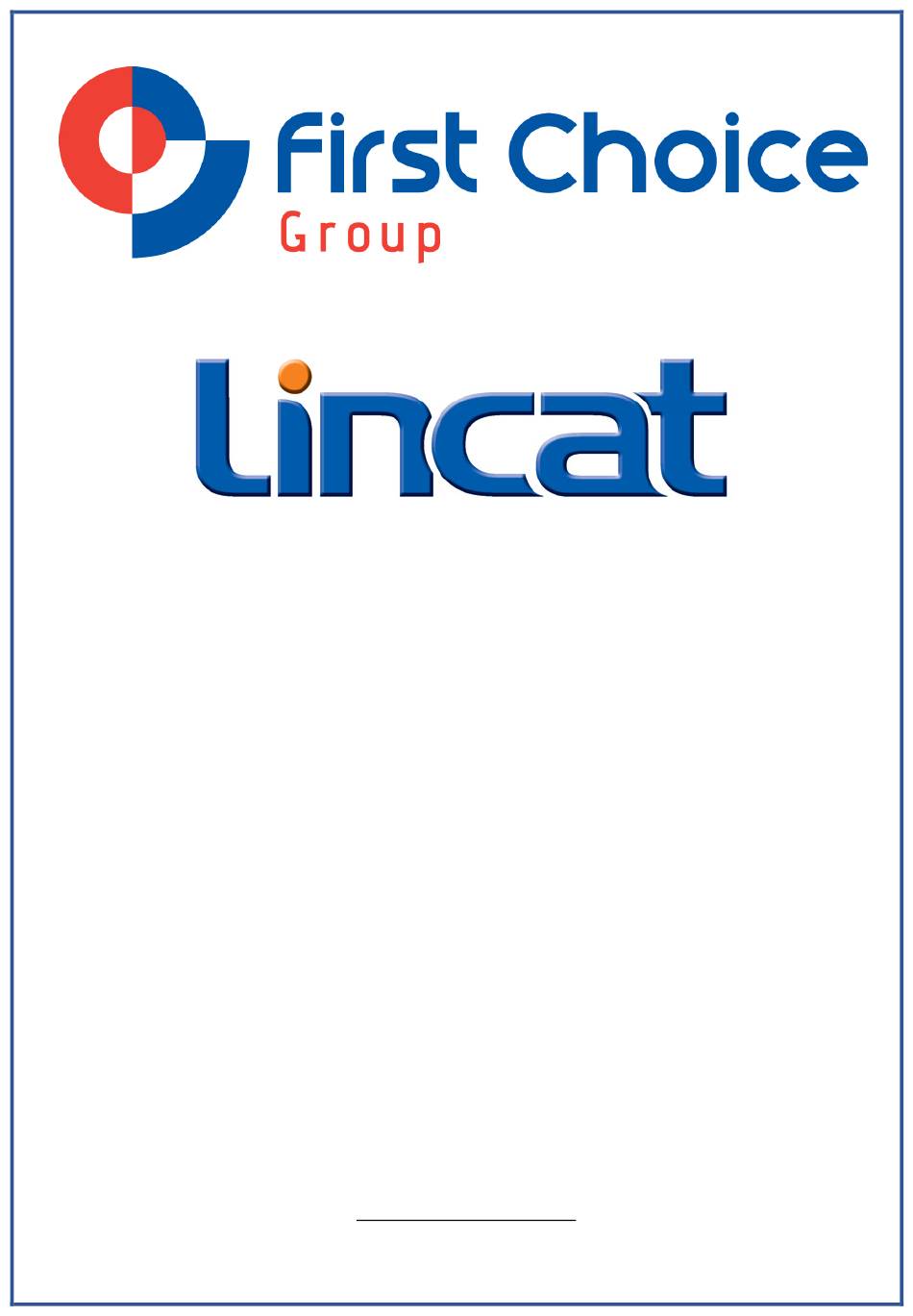

- Page 1 SPARE PARTS DIAGRAM FOR Induction Oven Range Phoenix PHER01 First Choice Group Blakeney Way, Kingswood Lakeside Cannock, Staffs, WS11 8LD TEL: 01543 577778 FAX: 01543504141 Email: enquires@firstchoice-cs.co.uk Web: www.firstchoice-cs.co.uk...
- Page 2 Installation, Operating and Servicing Instructions Phoenix Electric Induction Range PHER01 Please make a note of your product details for future use: Date Purchased: _________________________ Model Number: __________________________ Serial Number: __________________________ Dealer: _________________________________ _______________________________________ IS688 ECN 4178...
-
Page 3: Table Of Contents
WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips. -
Page 4: Warnings And Precautions
WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. Caution Symbol: Non-ionising electromagnetic radiation (magnetic field). Warning Symbol: Dangerous voltage (live parts at a working voltage exceeding 250V). -
Page 5: Checklist Of Enclosures
CHECK LIST OF ENCLOSURES Warranty card Instruction manual INSTALLATION AND COMMISSIONING This appliance must be earthed. An equipotential bonding terminal is provided to allow cross bonding with other equipment. If replacing the plug connect the terminals as follows: Green and Yellow wire Earth Blue wire Neutral N Brown wire... - Page 6 Install this appliance on a level surface ensuring all vents are unobstructed. Any partitions, walls or furniture must be of non-combustible material. Minimum distances, A 100mm, B 1000mm – see Fig 1. Fig 1...
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS General Information Only qualified or trained personnel should use this appliance. The green neon illuminated indicates power to the appliance. Rotate the control knob to the required power level setting. After use, switch the hob zone off by means of the control. Do not rely on the pan detectors. - Page 8 Locate the pan concentrically over the ceramic glass target ring. If the inner ring of the ceramic glass is visible around the pan, the pan is too small. Recommended pan base diameter – minimum of 120mm. Nominal coil diameter – 180mm. Maximum pan diameter is 250mm.
- Page 9 Melt, Keep warm, and Simmer functions The first three settings on the control knob are low temperature control functions. One bar is melt to heat the pot to 45 ° C, two bars is 70 ° C and three bars is 94 ° C. These temperatures are approximate and depend on the pan quality and volume of product.
- Page 10 Pan detection function This prevents the coils being turned on without a pan being present, and also turns off the coil as soon as a pan is removed. If the pan is of the wrong material for induction equipment, the ‘no pan present’ symbol is displayed. After use, switch off the hob via the control and do not rely on the pan detector.
- Page 11 There are numerous error codes identifying issues within the induction system. These are primarily of use when reporting a fault to Lincat’s Service Department; however some errors can be cleared by turning the control to the ‘Off’ position, unplugging the appliance and then switching back on again.
-
Page 12: Cleaning
Your product has a manufacturer’s warranty. This requires you maintain and care for your product and follow maintenance instructions. If you fail to maintain your unit or damage components, Lincat may charge you for a warranty repair. Please check the website for terms and conditions. -
Page 13: Servicing, Maintenance And Component Replacement
SERVICING, MAINTENANCE AND COMPONENT REPLACEMENT Removing the air filter Removing and cleaning the air filter will ensure an adequate supply of cool air and restore performance. Disconnect from the power supply and allow the appliance to cool. The filters are located on the base of the unit. At the back of the unit on the hob top is a metal cover. -
Page 14: Service Information And Guarantee
Type number • Serial number • Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
